DAYTON

Dayton Auger Drive Motor, 1/2 HP, Capacitor-Start, Nameplate RPM 1,725, Voltage 115/230V AC

Hover over image to magnify

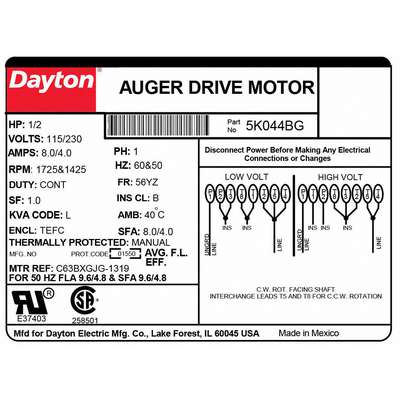

Farm Dty Mtr,Capstrt,Tefc,1/
PI_Asset_1766509
Farm Dty Mtr,Capstrt,Tefc,1/
PI_Asset_1766509
Double tap image to magnify

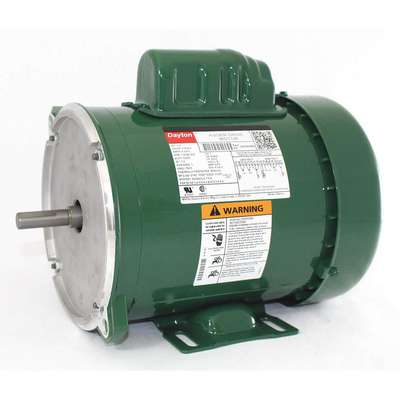

Farm Dty Mtr,Capstrt,Tefc,1/
5K044_1
Farm Dty Mtr,Capstrt,Tefc,1/
5K044_1

#936226-2Pkg Qty: 1

$419.31 pkg | $419.31 ea

In Stock

Shipping to 43085
Expected to arrive Tue. Mar 25.
|

Technical Specifications

Key Specifications
Bearings
Ball
Mounting
Flange/Base
Brand
DAYTON
NEMA/IEC Frame
56YZ
Duty
Continuous
Nameplate RPM
1725
Duty Cycle
Continuous
Overall Length
11-9/16 in.
Enclosure
Totally Enclosed Fan-Cooled
Package Quantity
1
Frame
56YZ
Phase
Single
Full Load Amps
8.0/4.0
Rotation
CW/CCW
Hz
60/50
Service Factor
1
Insulation Class
B
Shaft Length
1-3/4 in.
Item
Auger Drive Motor
Shipping Weight
28.6 lb.
Length Less Shaft
9-13/16 in.
Thermal Protection
Manual
Mfr. Part Number
5K044
Type
Poultry Feed Auger Drive
Motor Design
Capacitor-Start
Voltage
115/230 VAC
Motor Type
Capacitor-Start
Warranty
2ACC8
General
Amps @ 50 Hz
9.0/4.5
Motor Mounting Type
Face/Base
Capacitor Required
Included
Motor Shaft Design
Flat
HP
1/2
Motor Sub Application
Auger
Includes
Gasketed Conduit Box and Capacitor Cover, Shaft Extension beyond fan guard for manual cranking
Nominal Efficiency
61.2 %
Max. Ambient Temp.
40 °C
RPM Range
1,701-1,800
Motor Application
Farm Duty
Shaft Dia.
1/2 in
Motor Frame Material
Rolled Steel
Standards
CSA Certified (258501), UL Recognized (E37403)
Motor Mounting Position
Horizontal
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 230V AC, 240V AC

Product Description

Auger farm-duty AC motors are used to power grain augers commonly found in poultry raising operations. Motors have enclosures that help protect them from moisture, but they are not airtight or waterproof.
