DAYTON

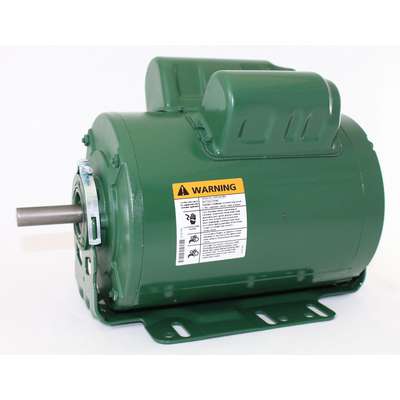

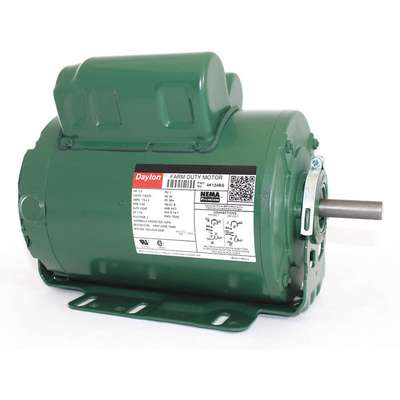

Dayton 1 HP Agricultural Fan Motor,Capacitor-Start/Run,1725 Nameplate RPM,115/230 Voltage,Frame 56H
Hover over image to magnify
#922741-5 | Pkg Qty: 1
$461.21 pkg | $461.21 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Bearings
Ball
Mounting
Cradle
Brand
DAYTON
NEMA/IEC Frame
56H
Duty
Continuous Air Over
Nameplate RPM
1725
Duty Cycle
Continuous
Overall Length
12-3/8 in.
Enclosure
Totally Enclosed Air-Over
Package Quantity
1
Frame
56H
Phase
Single
Full Load Amps
7.9/4.0
Rotation
CW/CCW
Hz
60
Service Factor
1.15
Insulation Class
B
Shaft Length
1-7/8 in.
Item
Agricultural Fan Motor
Shipping Weight
31.43 lb.
Length Less Shaft
10-1/2 in.
Thermal Protection
Auto
Mfr. Part Number
4K124
Type
Agricultural Fan
Motor Design
Capacitor-Start/Run
Voltage
115/230 VAC
Motor Type
Capacitor-Start
General
Capacitor Required
Included
Motor Service Factor
1.15
HP
1
Motor Shaft Design
Keyed
Includes
Gasketed Terminal Access Cover and Capacitor Cover, Shaft Key and Shaft Slinger
Motor Shaft Rotation
CW/CCW
Ins. Class
B
Motor Sub Application
Agricultural Fan
Max. Ambient Temp.
40 °C
Motor Thermal Protection
Auto
Motor Application
Farm Duty
No. of Speeds
1
Motor Bearings
Ball
Nominal Efficiency
82.6 %
Motor Enclosure Design
Totally Enclosed Air-Over
RPM Range
1,701-1,800
Motor Frame Material
Rolled Steel
Shaft Dia.
5/8 in
Motor Mounting Position
Horizontal
Standards
CSA Certified (258501), UL Recognized (E37403)
Motor Mounting Type
Cradle Base
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 230V AC, 240V AC
Product Description
Poultry/livestock direct drive farm-duty AC motors require no V-belts or sheaves that can wear out and require maintenance and replacement. Motors have enclosures that help protect them from moisture, but they are not airtight or waterproof.
