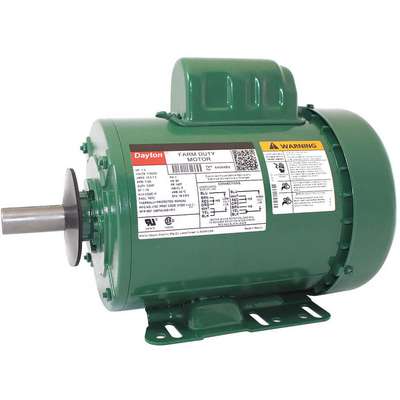

Dayton 1 HP Extra High Torque Farm Duty Motor,Capacitor-Start,1725 Nameplate RPM,115/230 Voltage
Hover over image to magnify
#925606-5 | Pkg Qty: 1
$622.22 pkg | $622.22 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Bearings
Ball
Motor Type
Capacitor-Start
Brand
DAYTON
Mounting
Base
Duty
Continuous
NEMA/IEC Frame
143T
Duty Cycle
Continuous
Nameplate RPM
1725
Enclosure
Totally Enclosed Fan-Cooled
Overall Length
12-3/4 in.
Finish
Green
Package Quantity
1
Frame
143/5T
Phase
Single
Full Load Amps
15.0/7.5
Rotation
CW/CCW
Function
Delivers Starting Torque as High as 300-400% of Full-load Torque
Service Factor
1.15
Hz
60
Shaft Length
2-1/4 in.
Insulation Class
F
Shipping Weight
38.7 lb.
Item
Extra High Torque Farm Duty Motor
Thermal Protection
Manual
Length Less Shaft
10-1/2 in.
Type
Extra High Torque
Mfr. Part Number
6K994
Voltage
115/230 VAC
Motor Design
Capacitor-Start
General
Capacitor Required
Included
Motor Service Factor
1.15
HP
1
Motor Shaft Design
Keyed
Includes
Shaft Key, Gasketed Conduit Box and Shaft Slinger
Motor Shaft Rotation
CW/CCW
Ins. Class
F
Motor Thermal Protection
Manual
Max. Ambient Temp.
40 °C
No. of Speeds
1
Motor Application
Farm Duty
Nominal Efficiency
66.6 %
Motor Bearings
Ball
RPM Range
1,701-1,800
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Shaft Dia.
7/8 in
Motor Frame Material
Rolled Steel
Standards
CSA Certified (258501), UL Recognized (E37403)
Motor Mounting Position
All Angle
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 230V AC, 240V AC
Motor Mounting Type
Rigid Base
Product Description
Extra-high-torque farm-duty AC motors have up to 400% starting torque for extremely hard-starting applications and can start under full-load conditions in powering conveyors, silo unloaders, barn cleaners, compressors, and manure pumps. Motors have enclosures that help protect them from moisture, but they are not airtight or waterproof.
