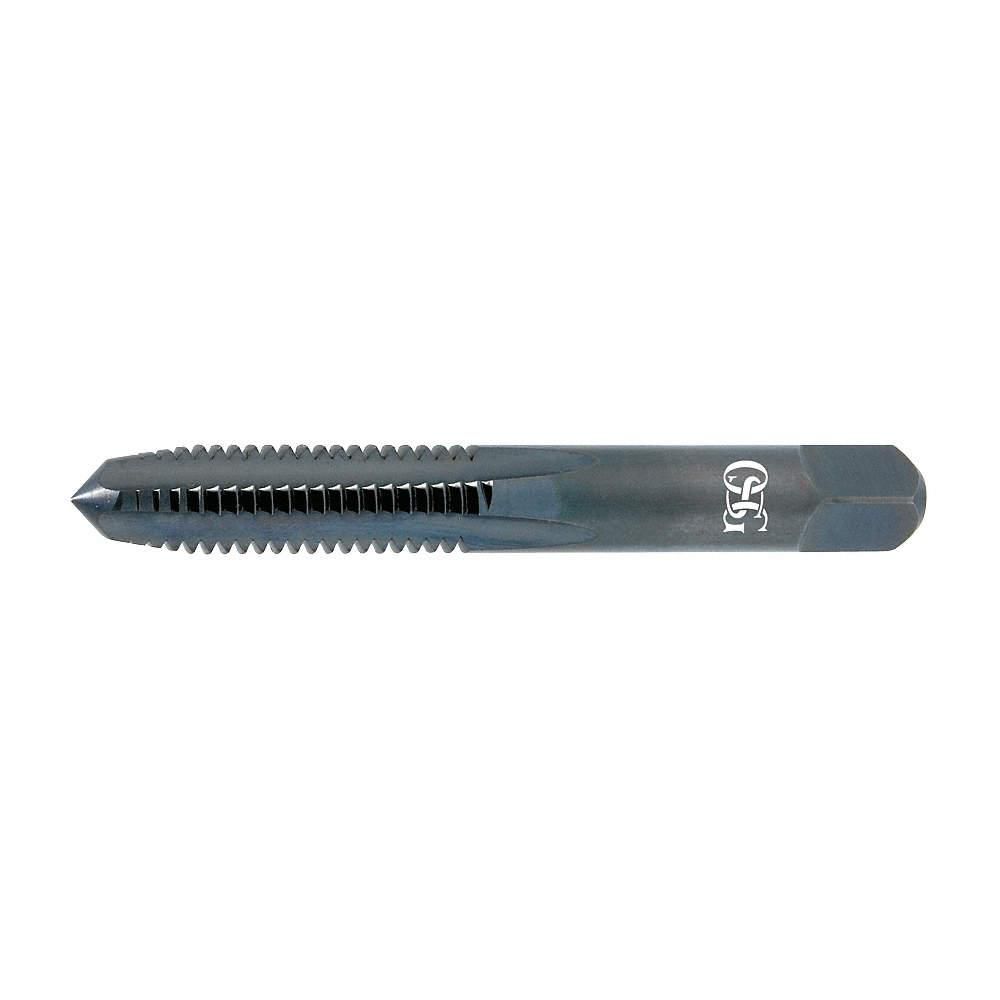

Straight Flute Tap, Thread Size #10-32, UNF, Taper, Overall Length 2 11/32 in, High Speed Steel

Hover over image to magnify
Straight Flute Tap,#10-32,Hss
Straight Flute Tap,#10-32,Hss
Double tap image to magnify
Straight Flute Tap,#10-32,Hss
Straight Flute Tap,#10-32,Hss

#938115-9Pkg Qty: 1

$12.31 pkg | $12.31 ea

In Stock

Shipping to 43085
Expected to arrive Fri. Apr 04.
|

Technical Specifications

Key Specifications
Brand
OSG
Shank Length
1-5/16 in.
Cutting Direction
Right
Shipping Weight
.1 lb.
Cutting Direction
Right Hand
Spiral Direction
Neutral
Drill Size
0.1575 in., 0.1596 in., 0.1616 in., 0.1636 in., 0.1656 in.
Square Size
0.151 in.
Finish
TiN
Subgroup | Tap
Straight Flute
Item
Straight Flute Tap
Tap Chamfer
Taper
List Number
102
Tap Dimension Type
Inch
Material
High Speed Steel
Tap Finish
TiN
Mfr. Part Number
1015105
Tap Material
High Speed Steel
Number of Flutes
4
Tap Size
#10
Number of Pieces
1
Tap Style
Straight Flute (Hand)
Overall Length
2-11/32 in.
Tap Thread Size
#10-32
Pack Quantity
1
Tap Thread Type
UNF
Pitch
32
Thread Direction
Right Hand
Pitch Diameter Limits
H2
Thread Length
9/16 in.
Primary Material Application
All Materials
Thread Size
#10-32
Series
102
Thread Type
UNF
Shank Diameter
3/16 in.
General
55% Thread Drill Size
4.25 mm
Secondary Material Application
Aluminum, Brass, Bronze, Cast Iron, Copper, Steel
65% Thread Drill Size
4.15 mm
Secondary Material Application ISO Code
K, N, P
75% Thread Drill Size
4.15 mm
Shank Type - Machining
Straight
Coolant Fed
Non-Coolant Through
Standards
ANSI
Extended Neck
Yes
Tap Grouping
Individual
Measurement System
Pipe
Tap Length Standard
ANSI
Primary Material Application ISO Code
H, K, M, N, O, P, S
Tap Shank Standard
ANSI

Product Description

The TiN coating on these taps protects them from wear and allows them to be used at higher speeds than taps with a bright finish. Non-coolant-through taps do not have coolant holes, so a separate hose is required to bring coolant to the cutting area if it is needed.
