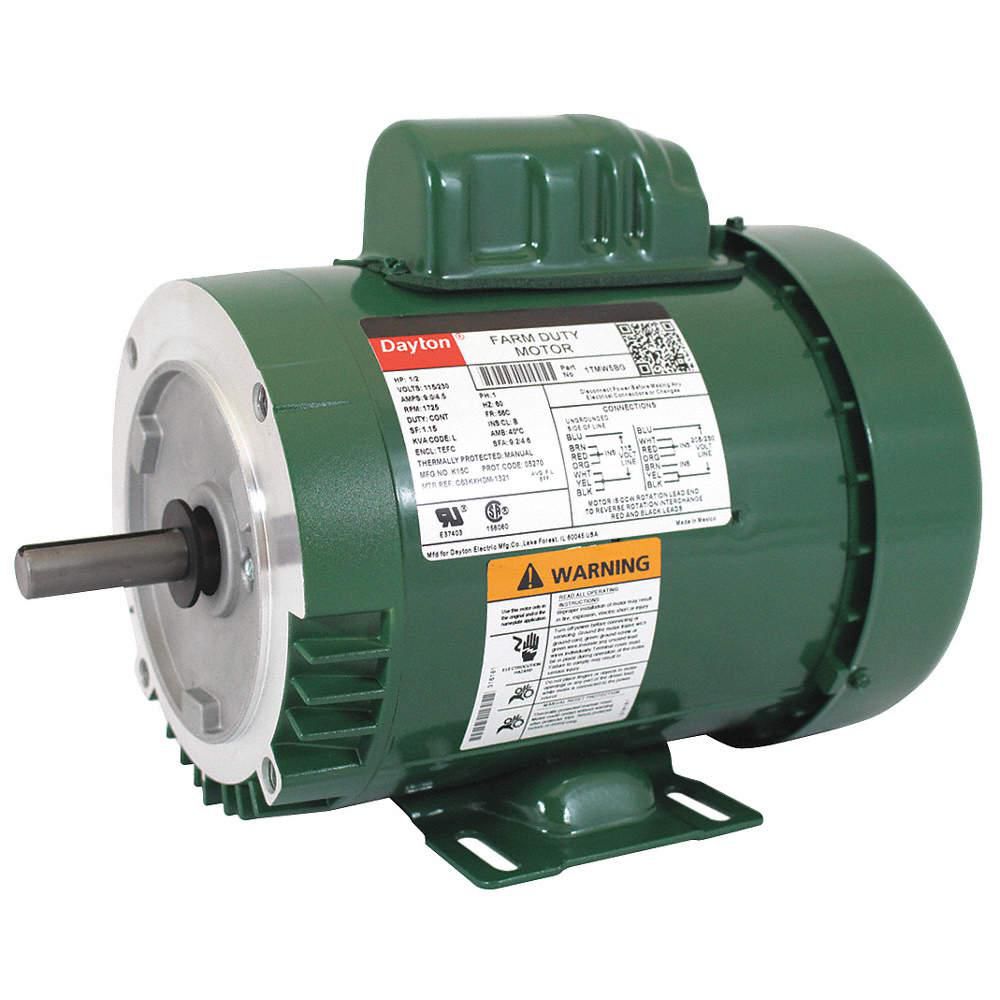

Dayton High Torque Farm Duty Motor: 1/2, 1,725, 115/230V AC, 56C, Manual, 1.15 Motor Service Factor
#940233-8 | Pkg Qty: 1
Drop Ship Item
Technical Specifications
Key Specifications
General
Product Description
High Torque Farm Duty Motor, Single Phase, Motor Design Capacitor-Start, 1/2 HP, Nameplate RPM 1,725, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 9.0/4.5, 56C Frame, 60 Hz, Motor Service Factor 1.15, Motor Thermal Protection Manual, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Mounting Type Face/Base, Motor Mounting Position Horizontal, Motor Frame Material Rolled Steel
Compliance & Restrictions
Documents
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 1tmw5 | |
 | UNSPSC CODES | 26101311 | |
 | VMRS (ATA) CODES | 053-006-009 |
