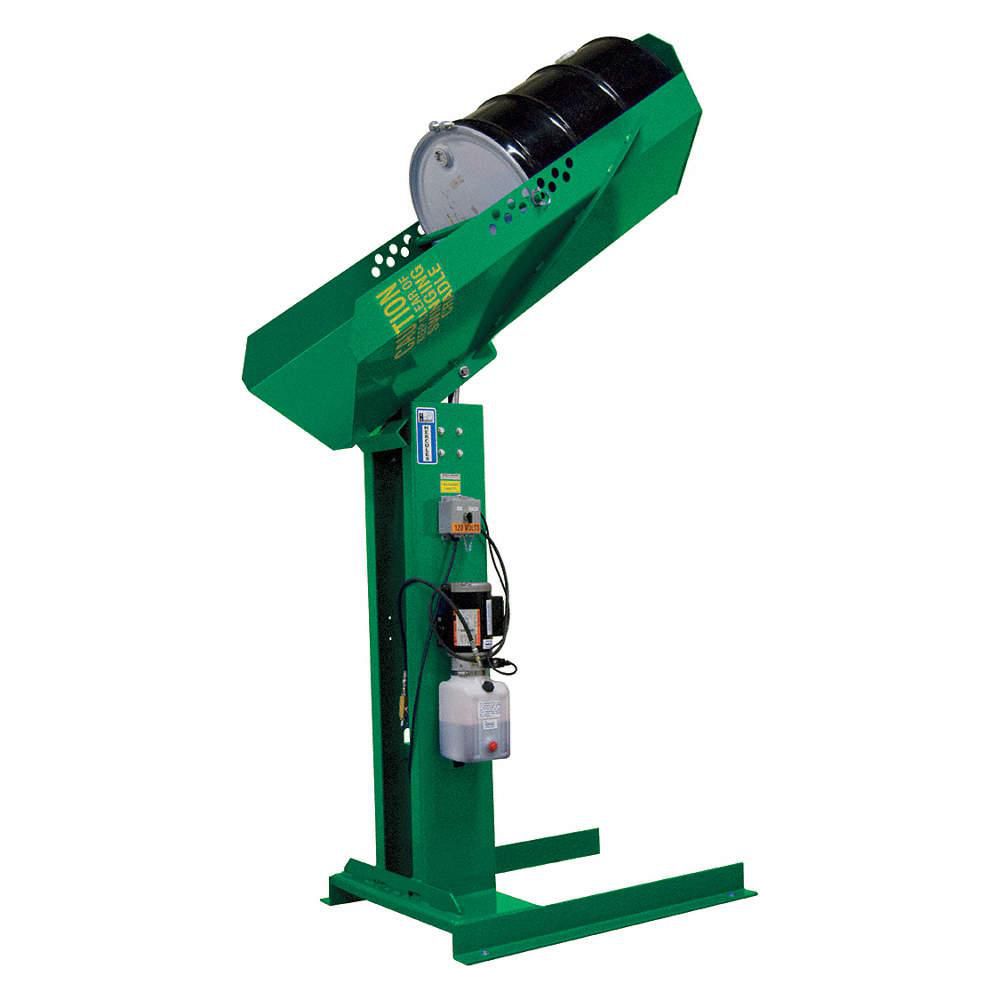

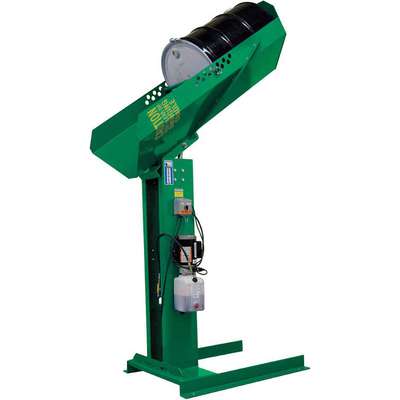

Valley Craft Low Level Drum Dumper, Portable, Single Stage, 1,500 lb Load Capacity, 52" Overall Length

Hover over image to magnify
Drum Dumper,Portable,1500 Lb.,
PI_Asset_3762222
PI_Asset_3762223
PI_Asset_3762224
PI_Asset_3762225
PI_Asset_3762226
Drum Dumper,Portable,1500 Lb.,
PI_Asset_3762222
PI_Asset_3762223
PI_Asset_3762224
PI_Asset_3762225
PI_Asset_3762226
Double tap image to magnify
Drum Dumper,Portable,1500 Lb.,
F80158A8_2__20HA65_v1
F80158A8_3__20HA65_v1
F80158A8_4__20HA65_v1
F80158A8_6__20HA65_v1
F80158A8_7__20HA65_v1
Drum Dumper,Portable,1500 Lb.,
F80158A8_2__20HA65_v1
F80158A8_3__20HA65_v1
F80158A8_4__20HA65_v1
F80158A8_6__20HA65_v1
F80158A8_7__20HA65_v1

#926228-4Pkg Qty: 1

$6,585.46 pkg | $6,585.46 ea
This item requires special shipping, additional charges may apply.

In Stock

Shipping to 43085
Ships from supplier. Expected to arrive on or before Wed. Apr 23.
|

Technical Specifications

Key Specifications
Brand
VALLEY CRAFT
Number of Drums
1
Drum Capacity
55 gal.
Overall Height
73-1/2 in.
Finish
Powder Coated
Overall Length
52 in.
Item
Low Level Drum Dumper
Overall Width
36 in.
Load Capacity
1500 lb.
Package Quantity
1
Mfr. Part Number
F80158A8
Shipping Weight
563 lb.
General
Chute Material
Steel
Includes

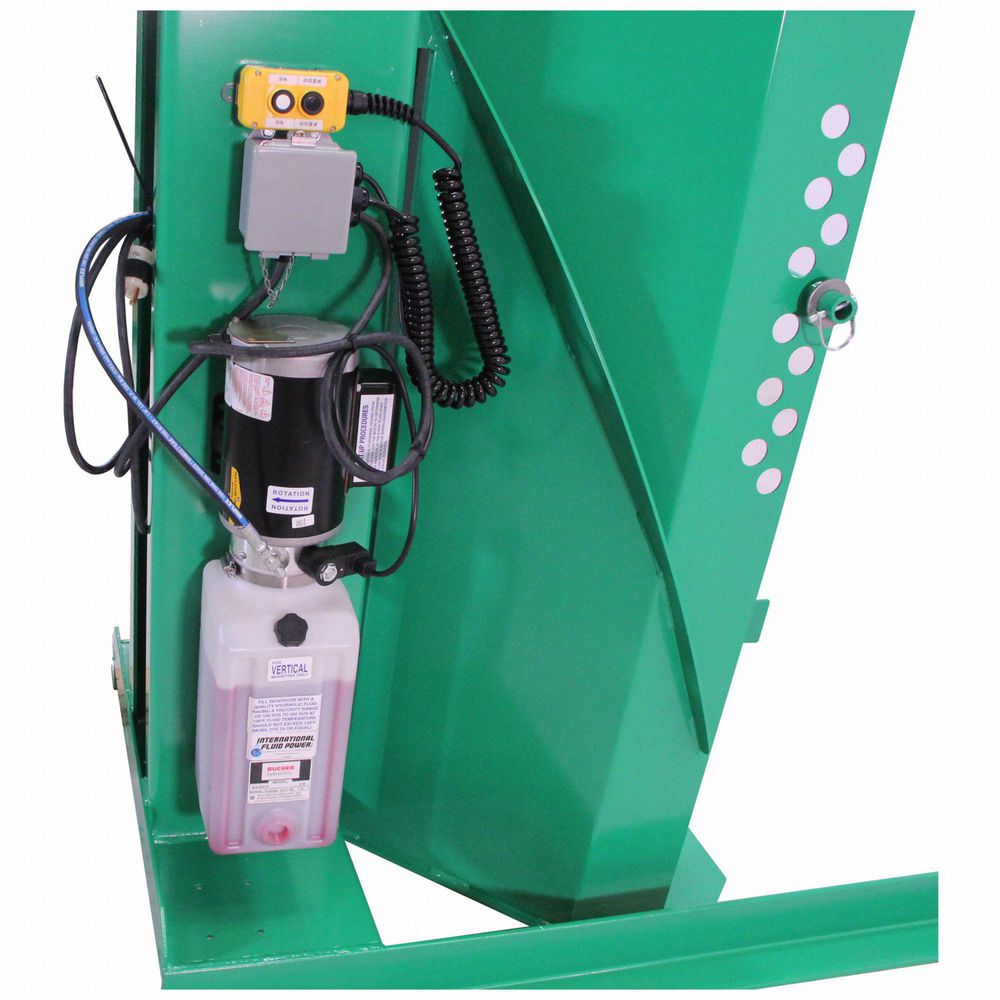

1/60/110V power unit with 1HP motor and 1 GPM pump, adjustable hold-down bar to accommodate various drum heights up to 43 in. Horizontal Clearance 77 in, Chute Reach 7 in
Clearance Between Legs
30 in
Leg Clearance
30 in
Dia.
14 in to 24 in
Maximum Motor Horsepower
1 hp
Dispensing Height
60 in
Operating Voltage
115V AC

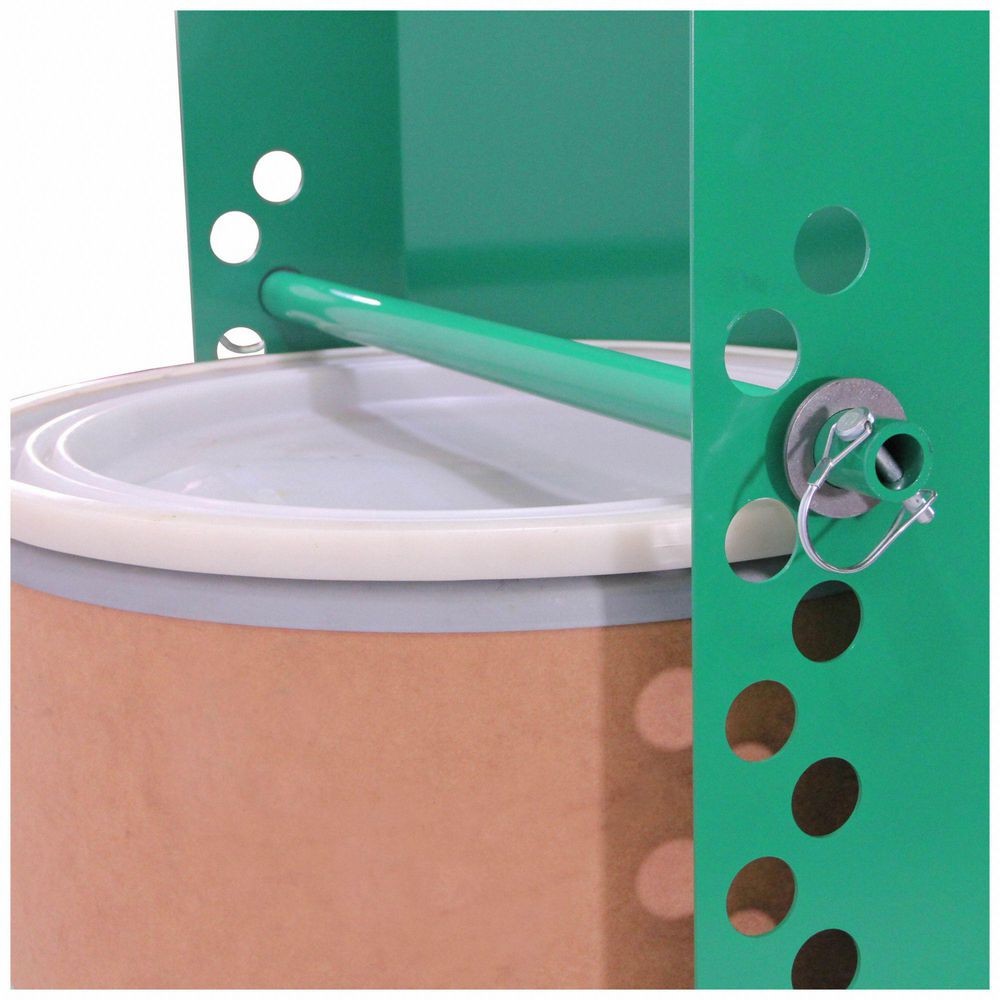

Drum Securing Mechanism
Hold Down Bar
Overall WxDxH
36 in x 52 in x 72 in
Dump Angle
45 °
Portability
Built-In Wheels
Dump Height
60 in
Raise Time
25 in/sec
Electrical Connection
Power Cord
Rotated Height
130 1/2 in
For Container Type
Drums
Rotation Angle
45 °
For Drum Capacity
55 gal
Rotation Height
132 in
For Maximum Drum Diameter
25 in
Total Raise Time
25 sec, Up Only
For Maximum Drum Height
60 in
Vertical Lift
60 in

Product Description

Low Level Drum Dumper, Portable, Single Stage, Overall Length 52 in, Overall Height 73 1/2 in, Level Height 60 in, Overall Width 36 in, Rotated Height 130 1/2 in, Dia. 14 in to 24 in, Dispensing Height 60 in, Clearance Between Legs 30 in, Dump Angle 45 Degrees , Total Raise Time 25 Seconds, Up Only, Number of Drums 1, Drum Capacity 55 gal, Load Capacity 1,500 lb, 3-1/4 in x 2 in Swivel Phenolic Wheels, 3-1/4 in x 2 in Swivel Phenolic Casters, Steel Construction, Powerder Coated Finish
