CLE-LINE

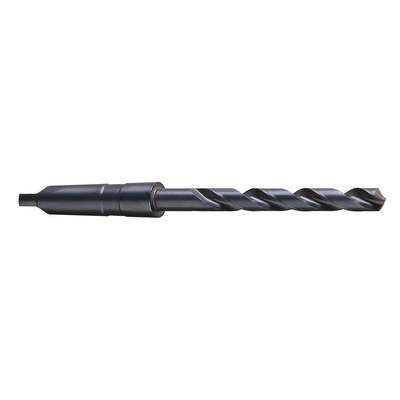

Cle-Line Taper Shank Drill Bit, Drill Bit Size 1 5/32", Drill Bit Point Angle 118 °, Conventional Point

Hover over image to magnify
Taper Shank Drill,Black,#4Ts 1-
Taper Shank Drill,Black,#4Ts 1-

#937236-4 | Pkg Qty: 1

$134.38 pkg | $134.38 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Brand
CLE-LINE
Item
Taper Shank Drill Bit
Cutting Direction
Right
Maximum Drilling Depth
7-1/4 in.
Decimal Equivalent
1.1562
Mfr. Part Number
C20574
Depth x Diameter Ratio
4xD
Number of Flutes
2
Drill Bit Dimension Type
Fractional Inch
Overall Length
12-7/8 in.
Drill Bit Finish
Black Oxide
Package Quantity
1
Drill Bit Material
High Speed Steel
Point Type
Conventional Point
Drill Bit Point Angle
118 deg.
Series
1894
Drill Bit Size
1-5/32 in.
Shank Diameter
MT4
Drill Point Length
0.3474 in.
Shank Length
5-5/8 in.
Flute Length
7-1/4 in.
Shipping Weight
2.73 lb.
Flute Type
Spiral
Spiral Direction
Right Hand
Helix Angle
21 to 34
General
Application
General Purpose Drilling
Material - Machining
High Speed Steel
Coolant Fed
Non-Coolant Through
Measurement System
Fractional Inch
Depth:Dia. Ratio
4xD
Primary Material Application ISO Code
K, P
Drill Bit Grouping
Individual
Shank Type - Machining
Taper
Drill Bit Point Type
Conventional Point
Standards
ASME B94.11M
Drill Diameter Tolerance
+0.0000 in /-0.0015 in
Taper Shank Size
MT4
Finish - Machining
Black Oxide

Product Description

These drill bits have a black-oxide finish that retains lubricants to improve the bits' wear resistance and chip flow. Black-oxide bits should only be used for drilling ferrous metals. High-speed steel drill bits provide more flexibility and absorb more shock and vibration than cobalt and carbide drill bits, making them suitable for use in manual drilling machines and handheld power tools. They may leave a rough finish on the hole. These bits have spiral flutes that evacuate chips as the bits drill into a workpiece.

Item Barcode
9372364
Taper Shank Drill,Black,#4Ts 1-
 NameItemDescription
Grainger DropshipGrainger Dropship50AY98
UNSPSC CODESUNSPSC CODES27112845
VMRS (ATA) CODESVMRS (ATA) CODES053-006-009Taper Shank Drill,Black,
