SQUARE D

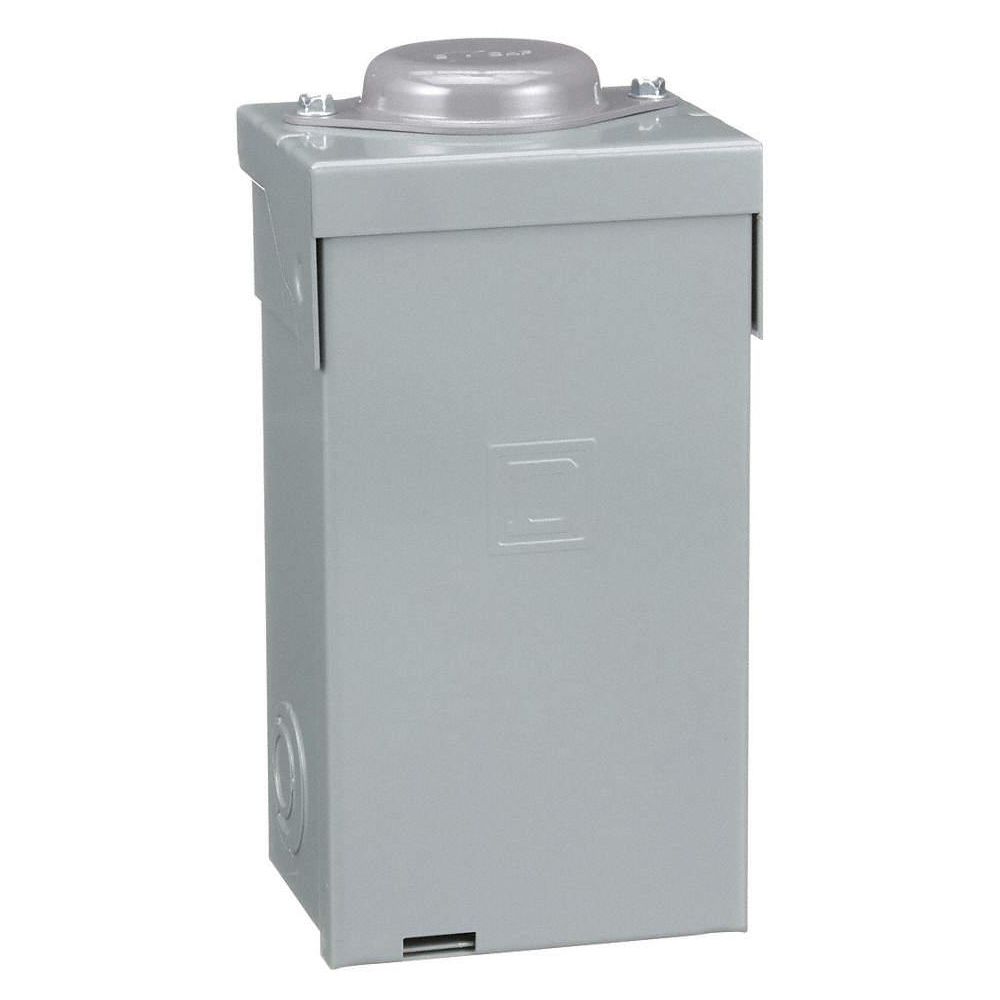

Square D Load Center: 40 A Amps, 120/240V AC, 2 Spaces, 65kA, 0 Max. No. of Tandem Breakers, Surface Cover

Hover over image to magnify
Load Center,Lug,40A,120/240VAC,
PI_Asset_1370598
Load Center,Lug,40A,120/240VAC,
PI_Asset_1370598
Double tap image to magnify
Load Center,Lug,40A,120/240VAC,
5B756_SS01_R01_C23
Load Center,Lug,40A,120/240VAC,
5B756_SS01_R01_C23

#926238-4Pkg Qty: 1

$138.64 pkg | $138.64 ea

In Stock

Shipping to 43085
Expected to arrive Mon. Mar 31.
|

Technical Specifications

Key Specifications
Aluminum Wire (AWG/kcmil)
12 to 6
Maximum Number of 1-Pole Circuits
2
Amperage
40 A
Maximum Number of Tandem Breakers
0
Amps
40 A
Mfr. Part Number
QO2L40RB
Brand
SQUARE D
NEMA Rating
3R
Bus
Shielded, One Piece
Number of Spaces
2
Bus Material
Tin Plated Aluminum
Package Quantity
1
Circuit Breaker Type
QO
Phase
1
Copper (AWG/kcmil)
14 to 6
RMS Symmetrical Amp Rating
10000
Depth
4 in.
Recommended Ground Bar Kit
5B717
Enclosure
Outdoor
Recommended Surface Cover
Included
Enclosure Material
Galvanized Steel
Series
QO
Enclosure NEMA Rating
3R
Shipping Weight
4.9 lb.
Federal Specification
W-P-115c as Type 1 Class 2
Short Circuit Current Rating
65kA
Ground Bar Kit
5B717
Surface Cover
Included
Height
9.38 in.
Type
Main Lugs
Item
Load Center
Voltage
120/240VAC
Main Circuit Breaker or Main Lug
Main Lug
Width
4.88 in.
Mains
Fixed Lug
General
Cover Attachment Style
Top Hinge
Included Enclosure Cover
Surface Cover
Cover Closure Method
Door Latch
Max. Operating Temp.
104°F
Enclosure Surface Finish
Enamel
Min. Operating Temp.
23°F
Feed Location
Top/Bottom
Special Features
Top Or Bottom Feed
For Use With
Square D QO Circuit Breakers
Standards
RoHS Compliant, Federal Specification W-P-115c As Type 1 Class 2

Product Description

These Square D main lug load centers distribute power downstream from main breakers and are used when all the circuit slots in the main breaker load center are full or when a remote panel is desired. They're used with QO series circuit breakers to protect circuits from overcurrents. They are used in residential, commercial, and industrial applications.
