SCHNEIDER ELECTRIC

Schneider Electric 120V AC IEC Magnetic Contactor; No. of Poles 3, Reversing: No, 80 A Full Load Amps-Inductive

Hover over image to magnify
Contactor,Iec,120VAC,3P,80A

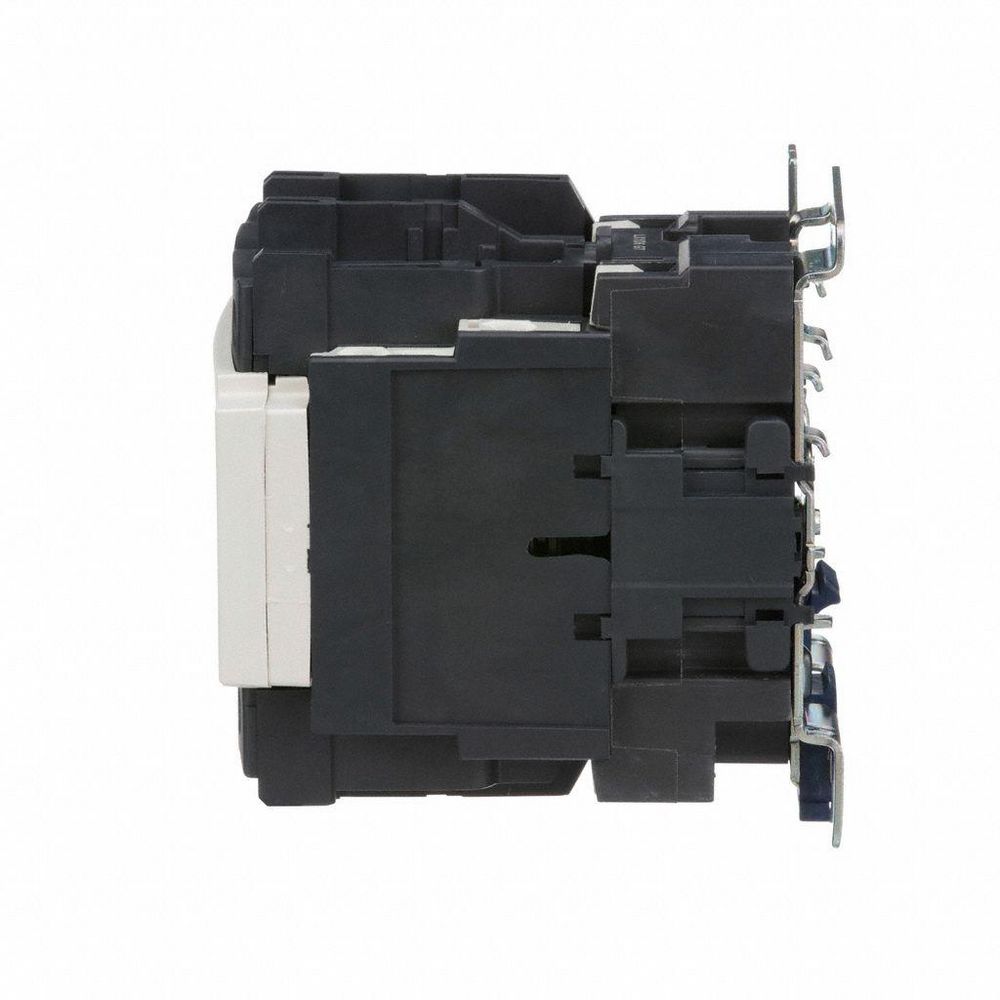

PI_Asset_1984657

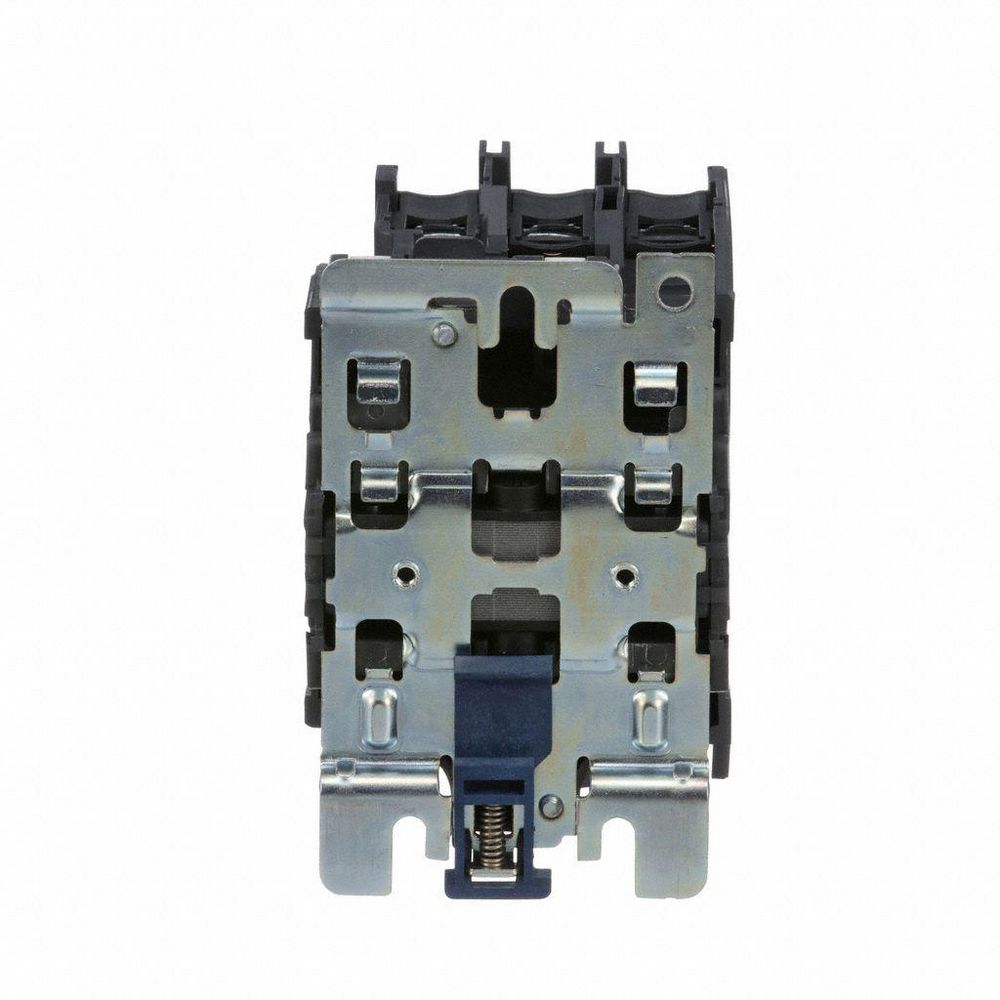

PI_Asset_1988681
PI_Asset_1991796
PI_Asset_1992762
Contactor,Iec,120VAC,3P,80A
PI_Asset_1984657
PI_Asset_1988681
PI_Asset_1991796
PI_Asset_1992762
Double tap image to magnify
Contactor,Iec,120VAC,3P,80A
3DB25_1
3DB25_2
3DB25_3
3DB25_4
Contactor,Iec,120VAC,3P,80A
3DB25_1
3DB25_2
3DB25_3
3DB25_4

#931529-9Pkg Qty: 1

$499.80 pkg | $499.80 ea

In Stock

Shipping to 43085
Expected to arrive Thu. Mar 27.
|

Technical Specifications

Key Specifications
Action
Nonreversing
Hz
50/60
Brand
SCHNEIDER ELECTRIC
Item
IEC Magnetic Contactor
Coil Volts
120 VAC
Mfr. Part Number
LC1D80G7
Depth
5.12 in.
Number of Poles
3
Enclosure NEMA Rating
No Enclosure
Package Quantity
1
Enclosure Type
Open
Reversing
No
HP @ 1 Phase - 120 V
7-1/2 hp
Series
TeSys
HP @ 1 Phase - 240 V
15 hp
Shipping Weight
3.52 lb.
Height
5 in.
Width
3.34 in.
General
Aux. Contact Configuration
1NO/1NC
HP @ 1 Phase - 230V
15
Auxiliary Contact Form
1NC/1NO
HP @ 3 Phase - 230V
30
Contactor Type
IEC
Standards
CSA, UL
Full Load Amps-Resistive
125 A

Product Description

For use in industrial motor control applications and suitable for DIN rail or panel mounting. You can combine a contactor with an overload relay to make a complete motor starter. IP20 touch-safe with removable terminal cover. Designed for a mechanical life of 15 million operations. Includes wire guides, and captive screws.

Expertly Selected Product Pairings

Iec Overload Relay
$146.26 pkg | $146.26 ea
Item: 912506-8 | Pkg Qty: 1
Iec Overload Relay
$169.33 pkg | $169.33 ea
Item: 912906-2 | Pkg Qty: 1
Iec Overload Relay,37 To 50A,
$155.91 pkg | $155.91 ea
Item: 914859-2 | Pkg Qty: 1
Iec Auxiliary Contact
$32.44 pkg | $32.44 ea
Item: 915010-3 | Pkg Qty: 1
Overload Relay,Class 10,25 To
$142.34 pkg | $142.34 ea
Item: 915599-7 | Pkg Qty: 1
Overload Relay,23 To 32A,Class
$142.43 pkg | $142.43 ea
Item: 919435-9 | Pkg Qty: 1
Ovrload Relay,48 To 65A,3P,
$137.81 pkg | $137.81 ea
Item: 931529-8 | Pkg Qty: 1

Documents

Technical Guide
Schneider Electric LC1D80G7 Product Environmental Profile
Technical Sell Sheet
