SQUARE D

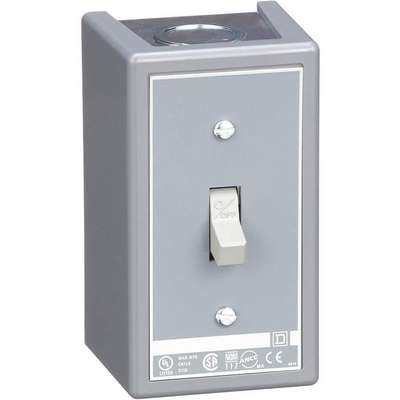

Square D Manual Motor Switch: 1, 30 A Amps AC, 2 Poles, 600 V AC, Gen Purpose Surface Mount
Hover over image to magnify
#916351-6 | Pkg Qty: 1
$88.36 pkg | $88.36 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Amps AC
30
NEMA Type
NEMA 1
Brand
SQUARE D
Number of Poles
2
Depth
2-3/4 in.
Package Quantity
1
Description/Special Features
General Purpose Surface Mount
Phase Loss Sensitivity
No
Enclosure NEMA Rating
1
Shipping Weight
.85 lb.
Enclosure Type
Enclosed
Starter Type
NEMA Style
Height
4-1/4 in.
Type
KG1
Item
Manual Motor Switch
Width
2.44 in.
Mfr. Part Number
2510KG1
General
HP @ 1 Phase - 115V
2
HP @ 3 Phase - 460V
3
HP @ 1 Phase - 120V
2 hp
HP @ 3 Phase - 480V
3 hp
HP @ 1 Phase - 230V
2 hp
HP @ 3 Phase - 575V
3 hp
HP @ 3 Phase - 230V
2
Operator
Toggle
HP @ 3 Phase - 240V
2 hp
Standards
UL, CSA, CE
HP @ 3 Phase - 460-575V
3 hp
Product Description
Manual Switches and Fractional Horsepower Manual Starters
- NEMA Manual Switches
- Nonreversing switches provide On/Off control of 1- or 3-phase AC motors where overload protection is not required or is provided separately. All switches rated 1, 1-1/2, 2 HP at 90/115/230VDC respectively. 2-pole, 10 switches rated 2 HP at 115/230V. 3-pole, 30 switches are rated 7-1/2 HP at 230V and 10 HP at 460 to 575V. For use in small machine tools, pumps, fans, conveyors, and electrical machinery. Also for nonmotor loads such as resistance heaters.
- UL Listed.
- NEMA Type 1
- Hubbell models feature an integral toggle guard with lockout capability to meet OSHA lockout/tagout regulations.
Expertly Selected Product Pairings
Item Barcode
Manual Motor Switch,30A,600VAC/
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 1H400 | Manual Motor Switch,30A, |
 | UNSPSC CODES | 39121521 | |
 | VMRS (ATA) CODES | 053-007-002 | Manual Motor Switch,30A, |
