SCHNEIDER ELECTRIC

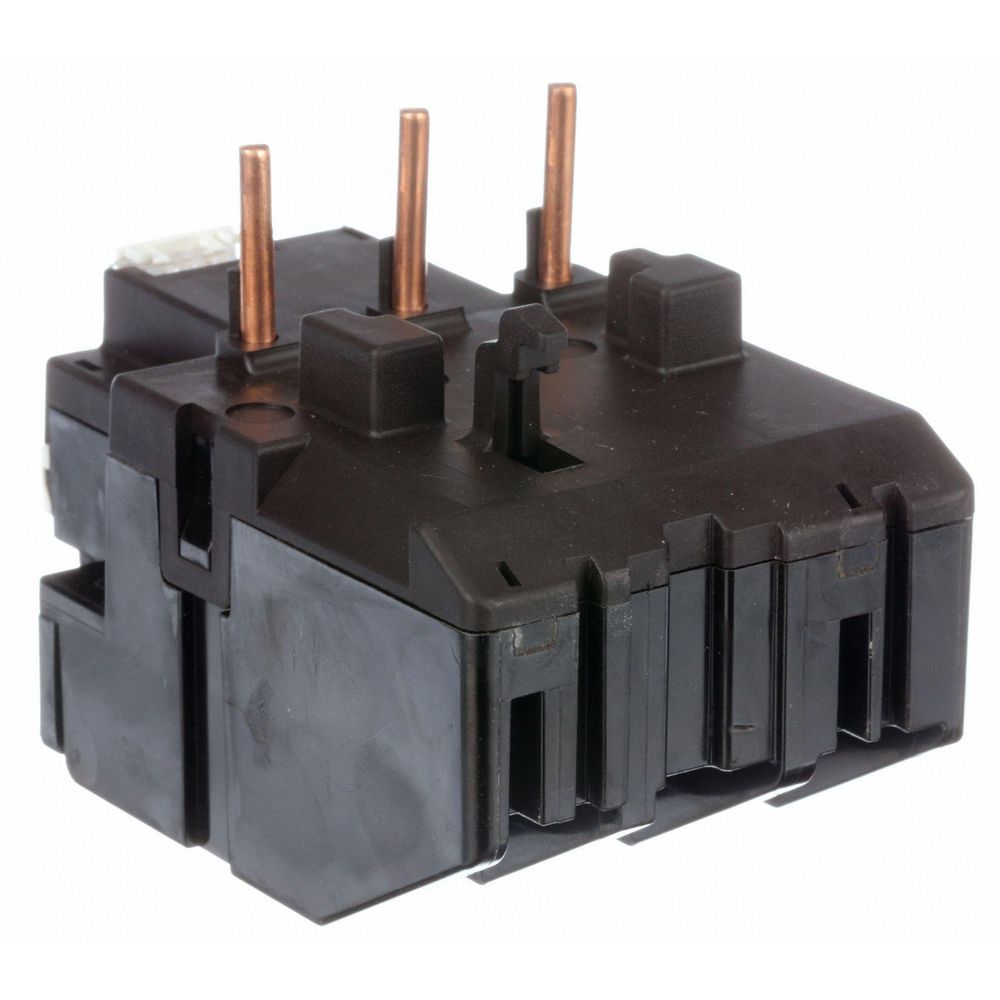

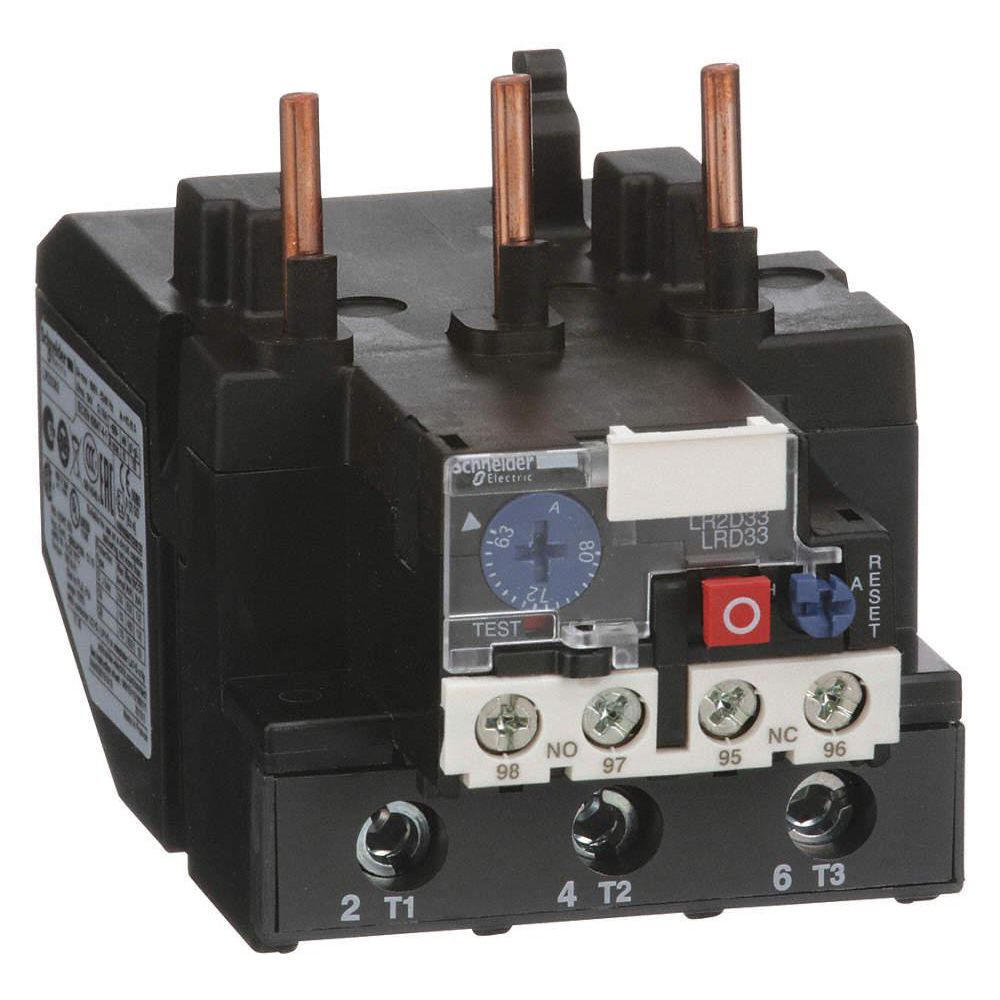

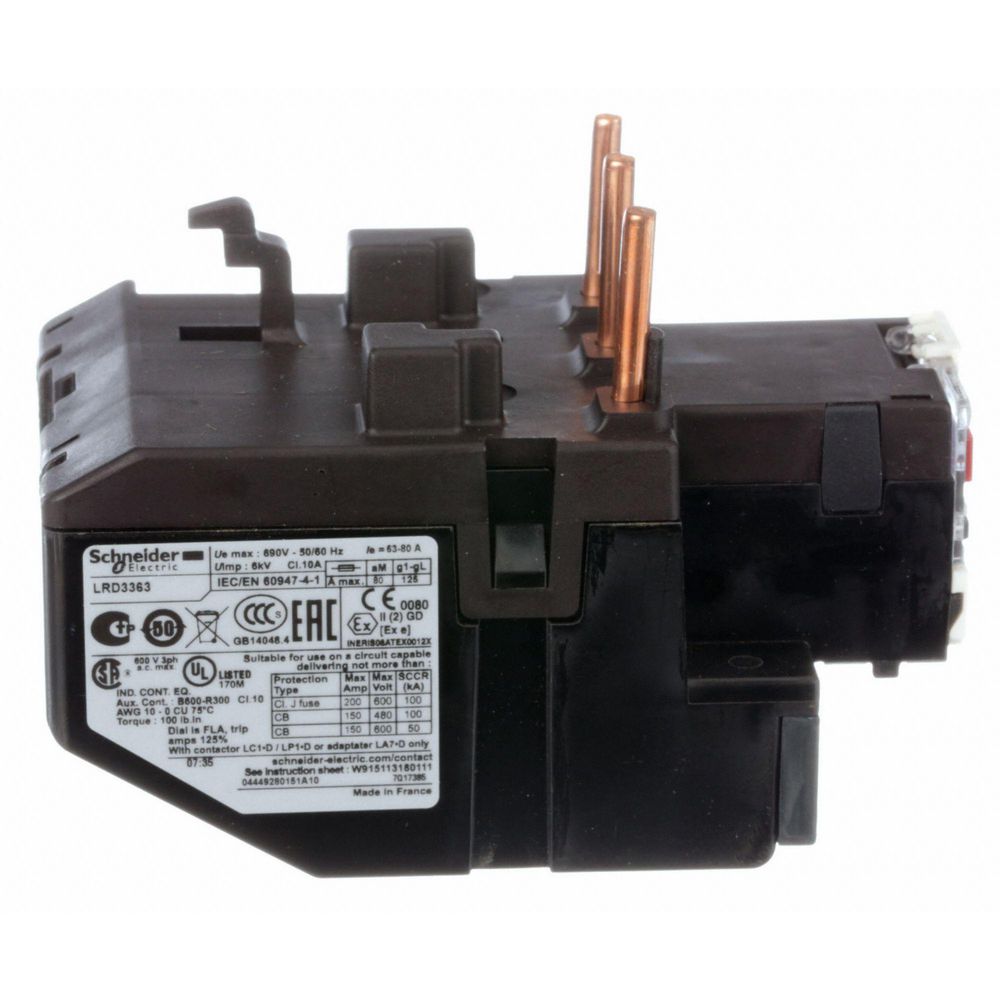

Schneider Electric Overload Relay, Trip Class: 10, Current Range: 63.0 to 80.0A, Number of Poles: 3

Hover over image to magnify
Iec Overload Relay
PI_Asset_1757861
PI_Asset_1767909
Iec Overload Relay
PI_Asset_1757861
PI_Asset_1767909
Double tap image to magnify
Iec Overload Relay
3DE31_2
3DE31_1
Iec Overload Relay
3DE31_2
3DE31_1

#912906-2Pkg Qty: 1

$169.33 pkg | $169.33 ea

In Stock

Shipping to 43085
Expected to arrive Tue. Apr 01.
|

Technical Specifications

Key Specifications
Brand
SCHNEIDER ELECTRIC
Package Quantity
1
Current Range
63.0 to 80.0A
Sensing Method
Bimetallic
Depth
4.76 in.
Shipping Weight
1.14 lb.
Height
4.84 in.
Starter Type
IEC
Item
Overload Relay
Voltage
690 VAC
Mfr. Part Number
LRD3363
Width
2.95 in.
Number of Poles
3
General
Body Depth - Relay
4.76 in
Overload Relay Current Range
63 to 80A
Body Height - Relay
4.84 in
Reset Type - Relay
Manual
Body Width - Relay
2.95 in
Standards
ATEX D 94/9/CE, CSA, GOST, UL
Features
Single Phase Sensitivity, Differential
Trip Class - Overload
10
For Use With
LC1D65 thru LC1D80 Contactor
Use With - Contactors and Starters
Mfr. Series LC1D65 to LC1D80 Contactors
Overall Height - Relay
4.84 in

Product Description

TeSys™ IEC Contactors and Overload Relays For industrial motor control applications, combine a contactor with an overload relay to make a complete motor starter. Rated 600VAC. Saddle clamp terminals. DIN rail- or panel-mount. CSA and CE Certified. Overload Relays For 3-phase applications. Bimetallic elements. Class 10 trip characteristics with 1-phase sensitivity. Ambient compensated. Adjustable current range. Lockable, sealable, manual/auto reset, test trip. Mount to underside of contactor.
