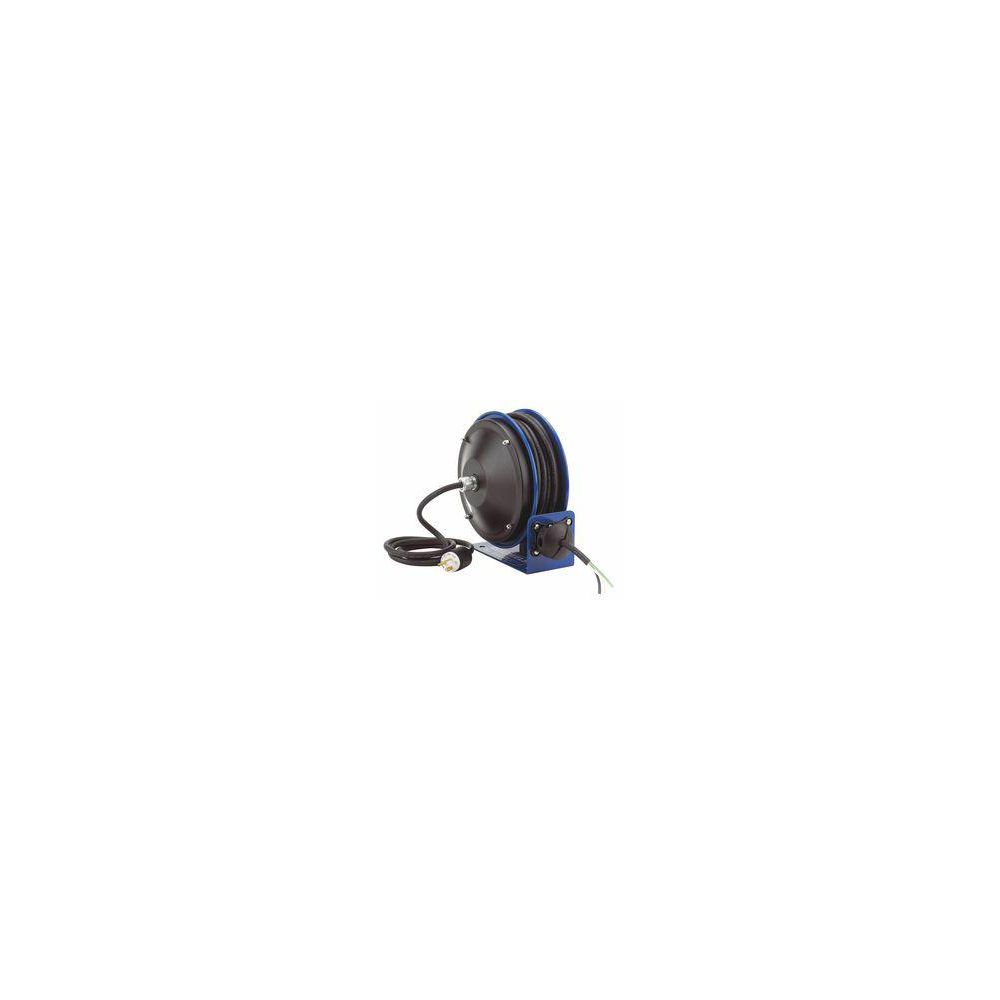

Coxreels 30 ft. Compact Retractable Cord Reel; Heavy Industrial Grade; 120 VAC; Blue Reel Color

Hover over image to magnify
Cord Reel,30 Ft,12/3,Sjo,Blue,
PI_Asset_948352
Cord Reel,30 Ft,12/3,Sjo,Blue,
PI_Asset_948352
Coxreels 30 ft. Compact Retractable Cord Reel; Heavy Industrial Grade; 120 VAC; Blue Reel Color Video
Coxreels 30 ft. Compact Retractable Cord Reel; Heavy Industrial Grade; 120 VAC; Blue Reel Color Video
Coxreels 30 ft. Compact Retractable Cord Reel; Heavy Industrial Grade; 120 VAC; Blue Reel Color Video
Coxreels 30 ft. Compact Retractable Cord Reel; Heavy Industrial Grade; 120 VAC; Blue Reel Color Video
Coxreels 30 ft. Compact Retractable Cord Reel; Heavy Industrial Grade; 120 VAC; Blue Reel Color Video
Double tap image to magnify
Cord Reel,30 Ft,12/3,Sjo,Blue,
9175424_1
Cord Reel,30 Ft,12/3,Sjo,Blue,
9175424_1
CYPC-kE7VWU
SX6FO_rSJrI
a4gQgpg9bxU
e5gDjGrQCk4
h9xLIeWQtq0

#928700-9Pkg Qty: 1

$762.62 pkg | $762.62 ea

In Stock

Shipping to 43085
Expected to arrive Mon. Mar 31.
|

Technical Specifications

Key Specifications
Brand
COXREELS
Mfr. Part Number
PC10-3012-X
Cord Color
Black
NEC Cord Designation
SJO
Cord Ending
5-20R
NEMA Plug Configuration
5-20P
Cord Ending NEMA Configuration
5-20R
Number of Conductors
3
Cord Included
Yes
Number of Outlets
0
Cord Length
30 ft.
Overall Depth
7-3/8 in.
Cord Type
SJO
Overall Height
10-5/8 in.
Depth
7-3/8 in.
Overall Width
10-1/2 in.
Description/Special Features
Blunt End
Package Quantity
1
Enclosed Reel
No
Reel Color
Blue
Enclosure Rating
Not Rated
Reel Material
Steel
Feeder Cord Ending
Grounding Plug
Reel Mounting
Bench, Floor, Wall
Feeder Cord Ending NEMA Configuration
5-20P
Shipping Weight
18.64 lb.
Feeder Cord Length
5 ft.
Slip Ring Rating
115 V
Grade
Heavy Industrial
Type
Spring Retractable
Height
10-5/8 in.
Voltage
120 VAC
Indoor/Outdoor
Indoor
Watts
1495 W
Item
Compact Retractable Cord Reel
Width
10-1/2 in.
Maximum Amps
20
Wire Size
12 AWG
General
Feeder Cord Ending Configuration
NEMA 5-20P
Retractable Cord Ending Configuration
Flying Lead
Gauge/Conductor - Ext. Cords and Outlet Strips
12/3
Tension Method
Ratchet Lock
Includes Cord
Yes
Voltage - Ext. Cords and Outlet Strips
120VAC
Max. Amps - Ext. Cords and Outlet Strips
20.0
Winding Method
Spring Retraction

Product Description

Self-retracting cord reels have a spring mechanism that automatically winds the cord back on the reel, making them easier to use than hand-winding cord reels. A stop, or ratchet, holds the cord at the desired length after it's pulled out for use. A quick tug on the cord disengages the stop, causing the spring to fully retract the cord. These reels provide access and storage of extension cords while protecting the cord from wear, tangling, and kinking.

Standard cord reels are spools that hold extension cords to provide access and storage while protecting them from tangling, kinking, and other damage. The cord can be extended to exactly the length needed to power equipment located at a distance from a power source. Self-retracting and motor-driven cord reels automatically wind extended cord back on the reel, while hand-winding cord reels have a handle or knob for winding the cord manually. These cords can be mounted out of the way in a central location, such as on a wall or ceiling, to keep a workspace organized and help reduce tripping hazards. They are commonly used in retail, commercial, and manufacturing applications, including pressure washing, landscaping and ground maintenance, and service garages.
