REELCRAFT

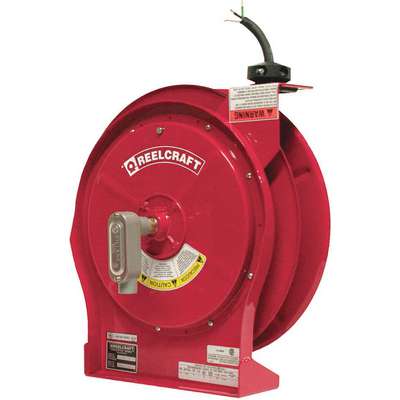

Reelcraft 50 ft. Retractable Cord Reel; Heavy Industrial Grade; 125/240 VAC; Red Reel Color

Hover over image to magnify
Cord Reel,50 Ft,10/3,Seoow,Red
Cord Reel,50 Ft,10/3,Seoow,Red
Reelcraft 50 ft. Retractable Cord Reel; Heavy Industrial Grade; 125/240 VAC; Red Reel Color Video
Double tap image to magnify
Cord Reel,50 Ft,10/3,Seoow,Red
Cord Reel,50 Ft,10/3,Seoow,Red
RoOYEWTcFQA

#925092-8Pkg Qty: 1

$1,641.08 pkg | $1,641.08 ea

In Stock

Shipping to 43085
Expected to arrive Mon. Mar 31.
|

Technical Specifications

Key Specifications
Brand
REELCRAFT
NEMA Configuration
No Configuration
Cord Color
Black
NEMA Plug Configuration
None
Cord Ending
No Configuration
Number of Conductors
3
Cord Ending NEMA Configuration
No Configuration
Number of Outlets
0
Cord Included
Yes
Overall Depth
12-1/2 in.
Cord Length
50 ft.
Overall Height
17-1/2 in.
Depth
12-1/2 in.
Overall Width
16-1/2 in.
Description/Special Features
No Plug or Connector
Package Quantity
1
Enclosed Reel
No
Reel Color
Red
Enclosure Rating
Not Rated
Reel Material
Steel
Feeder Cord Ending
Junction Box
Reel Mounting
Bench, Ceiling, Wall
Feeder Cord Ending NEMA Configuration
No Configuration
Shipping Weight
53 lb.
Feeder Cord Length
No Cord
Slip Ring Rating
30
Grade
Heavy Industrial
Temperature Range
0 deg. F to 125 deg. F
Height
17-1/2 in.
Type
Industrial, Automatic Retracting
Indoor/Outdoor
Indoor
Voltage
125/240 VAC
Item
Retractable Cord Reel
Watts
4025 W
Maximum Amps
30
Width
16-1/2 in.
Mfr. Part Number
L 5750 103 X
Wire Size
10 AWG
NEC Cord Designation
SEOOW
General
Gauge/Conductor - Ext. Cords and Outlet Strips
10/3
Standards
UL, CSA
Includes Cord
Yes
Tension Method
Ratchet Lock
Max. Amps - Ext. Cords and Outlet Strips
30.0
Voltage - Ext. Cords and Outlet Strips
120/240VAC
Retractable Cord Ending Configuration
Flying Lead
Winding Method
Spring Retraction

Product Description

Self-retracting cord reels have a spring mechanism that automatically winds the cord back on the reel, making them easier to use than hand-winding cord reels. A stop, or ratchet, holds the cord at the desired length after it's pulled out for use. A quick tug on the cord disengages the stop, causing the spring to fully retract the cord. These reels provide access and storage of extension cords while protecting the cord from wear, tangling, and kinking.

Standard cord reels are spools that hold extension cords to provide access and storage while protecting them from tangling, kinking, and other damage. The cord can be extended to exactly the length needed to power equipment located at a distance from a power source. Self-retracting and motor-driven cord reels automatically wind extended cord back on the reel, while hand-winding cord reels have a handle or knob for winding the cord manually. These cords can be mounted out of the way in a central location, such as on a wall or ceiling, to keep a workspace organized and help reduce tripping hazards. They are commonly used in retail, commercial, and manufacturing applications, including pressure washing, landscaping and ground maintenance, and service garages.
