HUBBELL WIRING DEVICE-KELLEMS

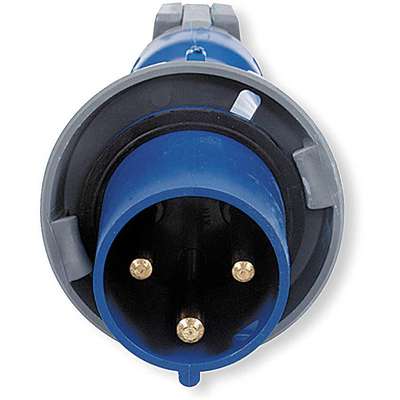

Hubbell Wiring Device-Kellems 60 Amp, 1-Phase Zytel 801 Nylon Watertight Pin and Sleeve Plug, Blue

Hover over image to magnify
Iec Pin And Sleeve Plug,2P,3W,
PI_Asset_1982254
Iec Pin And Sleeve Plug,2P,3W,
PI_Asset_1982254

#927541-7 | Pkg Qty: 1

$568.13 pkg | $568.13 ea

In Stock

Shipping to 43085
Expected to arrive Tue. Jan 14 - Wed. Jan 15.
|

Technical Specifications

Key Specifications
Amperage
60 A
Maximum Wire Size
2 AWG
Amps
60 A
Mfr. Part Number
HBL360P6W
Body Material
Zytel 801 Nylon
Minimum Operating Temperature
-40 °C
Brand
HUBBELL WIRING DEVICE-KELLEMS
Minimum Wire Size
8 AWG
Cap Type
No Cap or Cover
NEMA Rating
4X
Color Family
Blue
Number of Poles
2
Connection Orientation
Straight
Number of Wires
3
Current Rating
60 A
Overall Length
10.14 in.
Face Diameter
2.72 in.
Package Quantity
1
Features
Gasketed Sealing Ring Provides Watertight Seal
Phase
Single
For Maximum Cable Diameter
1.45 in.
Pin & Sleeve Standards
CSA Certifications, IEC 60309, UL Listed
For Minimum Cable Diameter
0.83 in.
Shipping Weight
2.23 lb.
Grounding
Grounded
Shrouded
Yes
Grounding Style
IEC
Standards
CSA Certified C22.2 No. 182.1, UL E146032, UL IEC 60309-1
Housing Color
Blue
Switch Rated
No
Housing Material
Polybutylene Terephthalate
Type
Male Plug
IP Rating
IP67
UL 94 Flammability Rating
HB
Item
Watertight Pin and Sleeve Plug
Voltage
250VAC
Material of Construction
Nonmetallic, Watertight and Abuse Resistant
Voltage Rating
250V AC
Maximum Operating Temperature
75 °C
Wire Connection Type
Screw Terminals
General
Amps - Plugs and Receptacles
60
Phase - Electrical
1
Features
Watertight
Voltage - Plugs and Receptacles
250V AC

Product Description

IEC Nonmetallic Watertight Pin and Sleeve Devices

  • Designed and manufactured to meet international standards IEC 60309-1 and 60309-2. Feature a nonconductive nylon housing and OSHA-compliant lockout hole in the plug shroud to provide additional safety. The all-nonmetallic housing withstands heavy-duty industrial environments. Devices are color-coded for each specific voltage. Pin configurations are singly rated to prevent accidental mismating.
