HUBBELL WIRING DEVICE-KELLEMS

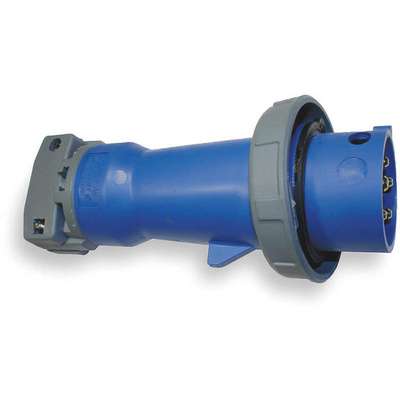

Hubbell Wiring Device-Kellems 60 Amp, 3Y-Phase Zytel 801 Nylon Watertight Pin and Sleeve Plug, Blue

Hover over image to magnify

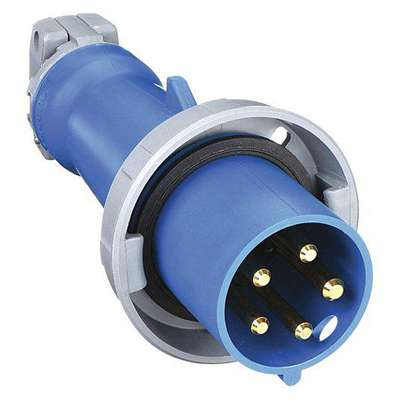

Plug,4 Pole,5 Wire
PI_Asset_1507962
Plug,4 Pole,5 Wire
PI_Asset_1507962

#912343-1 | Pkg Qty: 1

$704.90 pkg | $704.90 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Amperage
60 A
Minimum Operating Temperature
-40 °C
Amps
60 A
Minimum Wire Size
8 AWG
Body Material
Zytel 801 Nylon
NEMA Rating
4X
Brand
HUBBELL WIRING DEVICE-KELLEMS
Number of Poles
4
Cap Type
No Cap or Cover
Number of Wires
5
Color Family
Blue
Outside Diameter
4.48 in.
Connection Orientation
Straight
Overall Length
10.14 in.
Current Rating
60 A
Package Quantity
1
Face Diameter
2.72 in.
Phase
Three
For Minimum Cable Diameter
0.83 in.
Pin & Sleeve Standards
CSA Certifications, IEC 60309, UL Listed
Grounding
Grounded
Power Indicating Light
No
Grounding Style
IEC
Reverse Service
No
Horsepower
3 hp
Shipping Weight
2.5 lb.
Housing Color
Blue
Shrouded
Yes
Housing Material
Polybutylene Terephthalate
Standards
CSA Certified C22.2 No. 182.1, IEC 60309-1, UL E146032
IP Rating
IP67
Switch Rated
No
Item
Watertight Pin and Sleeve Plug
Type
Male Plug
Material of Construction
Nonmetallic, Watertight and Abuse Resistant
UL 94 Flammability Rating
HB
Maximum Operating Temperature
75 °C
Voltage
120/208VAC
Maximum Wire Size
2 AWG
Voltage Rating
120/208V AC
Mfr. Part Number
HBL560P9W
Wire Connection Type
Screw Terminals
General
Amps - Plugs and Receptacles
60
Phase - Electrical
3Y
Features
Watertight and Abuse Resistant
Voltage - Plugs and Receptacles
120/208V AC
HP
3 hp

Product Description

IEC Nonmetallic Watertight Pin and Sleeve Devices Designed and manufactured to meet international standards IEC 60309-1 and 60309-2. Feature a nonconductive nylon housing and OSHA-compliant lockout hole in the plug shroud to provide additional safety. The all-nonmetallic housing withstands heavy-duty industrial environments. Devices are color-coded for each specific voltage. Pin configurations are singly rated to prevent accidental mismating.
