APPLETON ELECTRIC

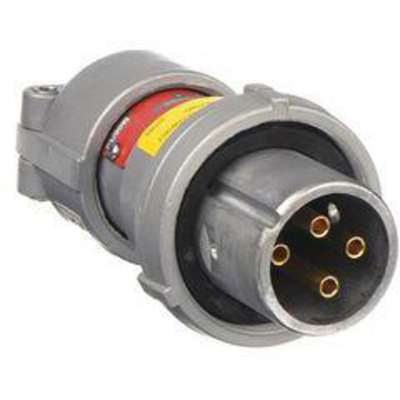

Appleton Electric Plug, 600VAC Voltage, 30 Amps, Number of Poles: 4, Number of Wires: 3
Hover over image to magnify
#927038-4 | Pkg Qty: 1
$689.07 pkg | $689.07 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Amperage
30 A
Material of Construction
Copperfree Aluminum
Amps
30 A
Maximum Wire Size
8 AWG
Brand
APPLETON ELECTRIC
Mfr. Part Number
ACP3034BC
Cap Type
Screw-On Cap
Minimum Wire Size
10 AWG
Color Family
Gray
NEMA Rating
3, 3R, 4, 4X, 7CD, 9FG
Compatible With
FSQC
Number of Poles
4
Connection Orientation
Straight
Number of Wires
3
Current Rating
30 A
Outside Diameter
3.13 in.
Face Diameter
1.86 in.
Overall Length
6 in.
Features
Auxiliary Contacts 1NO + 1NC, Special Polarization: Prevents Plug Insertion in a Receptacle or Connector Wired for a Different Voltage
Package Quantity
1
For Environment
Hazardous Location
Phase
Three
For Maximum Cable Diameter
1.125 in.
Pin & Sleeve Standards
CSA Certifications, UL 1682, UL Listed
For Minimum Cable Diameter
0.5 in.
Polarized
Yes
Grounding
Grounded
Reverse Service
No
Grounding Style
Style 2
Shipping Weight
1.72 lb.
Hazardous Location Specification
Class I, Div 1 and 2, Group B, C, D, Class II, Div 1 and 2, Group F, G, Class III, Div 1 and 2
Standards
CSA Certified 025875, CSA Certified C22.2 No. 159, CSA Certified C22.2 No. 25, CSA Certified C22.2 No. 30, UL 1010 (UL 1203), UL 1682, UL 894, UL E10784
Horsepower
20 hp
Switch Rated
No
Housing Color
Gray
Type
Pin and Sleeve
Housing Material
Copper-Free Aluminum
Voltage
600V AC
Item
Watertight Pin and Sleeve Plug
Voltage Rating
600V AC
Material
Copperfree Aluminum
General
HP
20 hp
Housing Material Finish
Epoxy Coat with Powder Finish
Product Description
Copper-free aluminum construction helps this clamping ring plug resist corrosion.
Expertly Selected Product Pairings
Item Barcode
Plug,30A,4P,3W,Alum,600V,Nema
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 12G131 | Plug,30A,4P, 3W,Alum,600V, |
 | UNSPSC CODES | 39121402 | |
 | VMRS (ATA) CODES | 053-006-009 | Plug,30A,4P, 3W,Alum,600V, |
