Home All Products Electrical Plugs & Connectors Twist Lock Connectors SKU: 927416-9
Share
Print
BRYANT

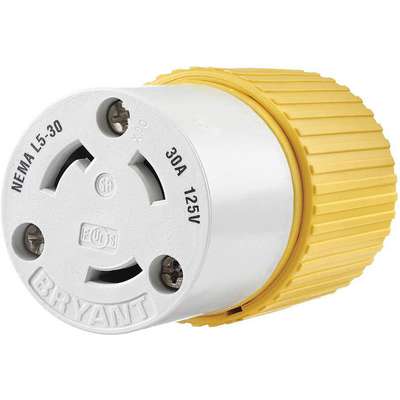

Bryant 30 Amp Industrial Grade Locking Connector, L5-30R NEMA Configuration, Yellow/White

Hover over image to magnify
Locking Connector,Yellow/White,
PI_Asset_1979592
PI_Asset_1987915
PI_Asset_1990929
PI_Asset_1992985
Locking Connector,Yellow/White,
PI_Asset_1979592
PI_Asset_1987915
PI_Asset_1990929
PI_Asset_1992985
Double tap image to magnify
Locking Connector,Yellow/White,
49YW95_1
49YW95_2
49YW95_3
49YW95_4
Locking Connector,Yellow/White,
49YW95_1
49YW95_2
49YW95_3
49YW95_4

#927416-9Pkg Qty: 1

$37.91 pkg | $37.91 ea

In Stock

Shipping to 43085
Expected to arrive Mon. Mar 24.
|

Technical Specifications

Key Specifications
Amperage
30 A
Mfr. Part Number
70530NCCR
Amps
30 A
Minimum Operating Temperature
-40 °C
Antimicrobial
No
Minimum Wire Size
18 AWG
Brand
BRYANT
NEMA Configuration - Plugs & Connectors
L5-30
Cap Type
No Cap or Cover
NEMA Plug Configuration
L5-30R
Color Family
Yellow / White
Number of Poles
2
Connection Orientation
Straight
Number of Wires
3
Cord Size
0.300 in to 0.950 in
Overall Length
2.13 in.
Corrosion Resistant
Yes
Package Quantity
1
Current Rating
30 A
Phase
Single
For Environment
Dry
Polarized
Yes
Grade
Industrial
Power Indicator
No
Grounding
Grounded
Shipping Weight
.34 lb.
Housing Material
Composite
Shrouded
No
IP Rating
IP20
Standards
CSA Certified, UL Listed
Item
Locking Connector
Voltage
125VAC
Material
Nylon
Voltage Rating
125V AC
Maximum Operating Temperature
75 °C
Wire Connection Type
Screw Terminals
Maximum Wire Size
8 AWG
Wiring Style
Standard
General
Amps - Plugs and Receptacles
30
Special Features
Corrosion Resistant
NEMA Plug Configuration - Plugs and Receptacles
L5-30R

Product Description

Nylon device is chemical- and impact-resistant. Incorporates a true, one-piece grounding system. Plugs and Connectors are polarized and moisture-resistant. Receptacles are single locking.
