BRYANT

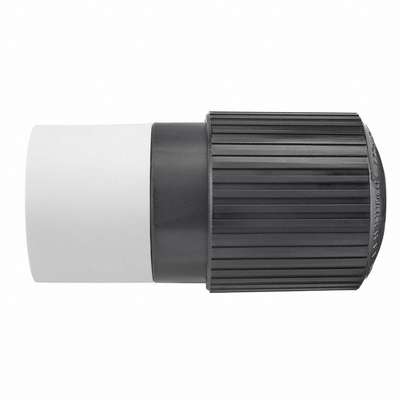

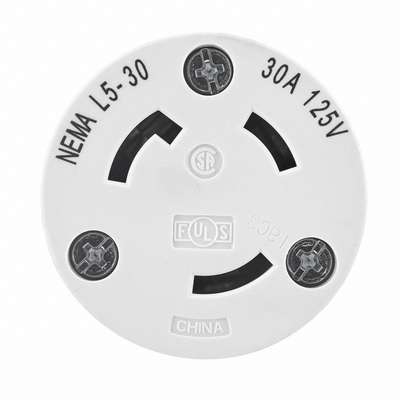

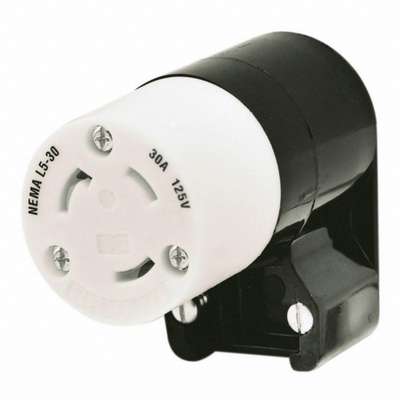

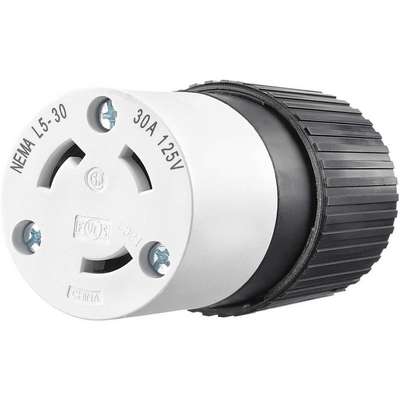

Bryant 30 Amp Industrial Grade Locking Connector, L5-30R NEMA Configuration, Black/White
Hover over image to magnify
#921486-9 | Pkg Qty: 1
$52.27 pkg | $52.27 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Amperage
30 A
Midget Locking
No
Amps
30 A
Minimum Operating Temperature
-40 °C
Antimicrobial
No
Minimum Wire Size
18 AWG
Brand
BRYANT
NEMA Configuration - Plugs & Connectors
L5-30
Cap Type
No Cap or Cover
NEMA Plug Configuration
L5-30R
Color Family
Black / White
NEMA Receptacle Configuration
L5-30R
Connection Orientation
Straight
Number of Poles
2
Cord Size
0.300 in to 0.950 in
Number of Wires
3
Corrosion Resistant
No
Overall Length
2.13 in.
Current Rating
30 A
Package Quantity
1
For Environment
Dry
Phase
Single
For Location
Indoor
Polarized
Yes
Grade
Industrial
Power Indicating Light
No
Grounding
Grounded
Power Indicator
No
Housing Material
Composite
Shipping Weight
.33 lb.
IP Rating
IP20
Shrouded
No
Item
Locking Connector
Standards
CSA Certified, UL Listed
Material
Nylon
Voltage
125VAC
Maximum Operating Temperature
75 °C
Voltage Rating
125V AC
Maximum Wire Size
8 AWG
Wire Connection Type
Screw Terminals
Mfr. Part Number
70530NC
Wiring Style
Standard
General
Amps - Plugs and Receptacles
30
NEMA Plug Configuration - Plugs and Receptacles
L5-30R
Grade - Plugs and Receptacles
Industrial
Voltage - Plugs and Receptacles
125V AC
Product Description
Nylon device is chemical- and impact-resistant. Incorporates a true, one-piece grounding system. Plugs and Connectors are polarized and moisture-resistant. Receptacles are single locking.
