KH INDUSTRIES

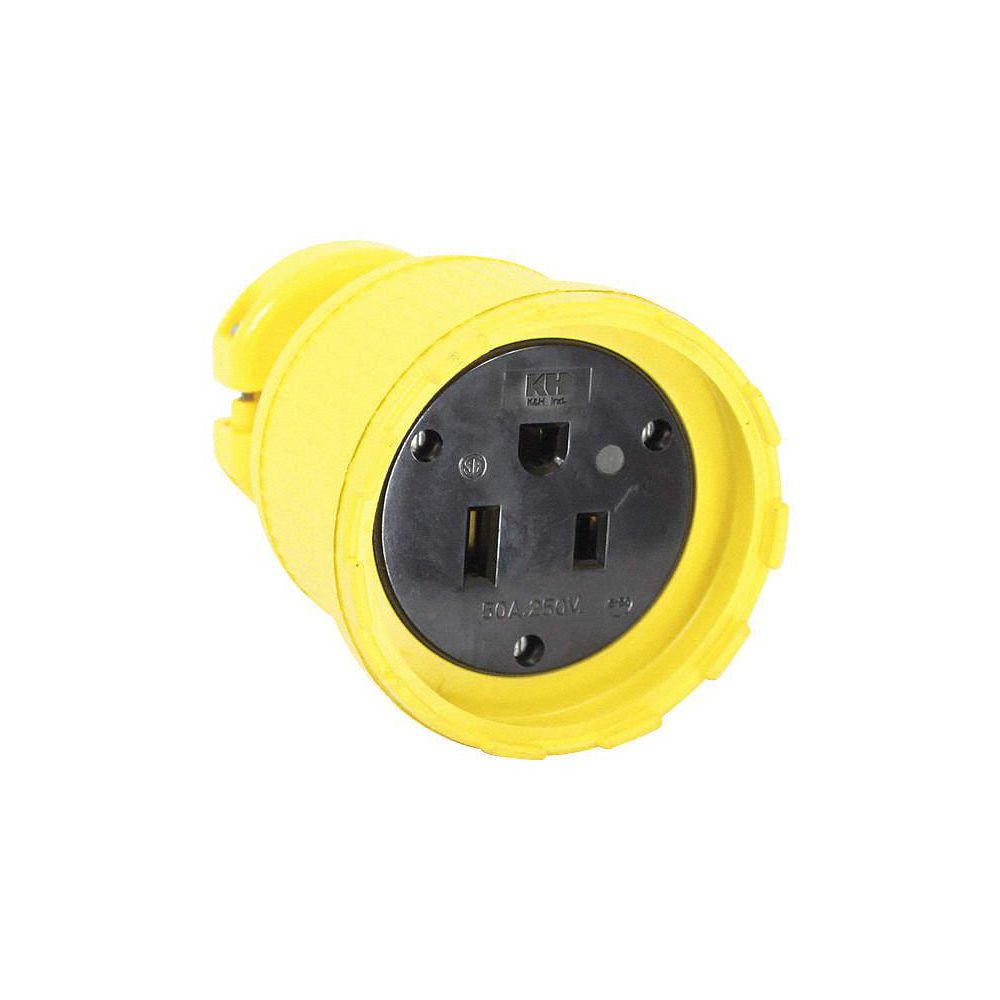

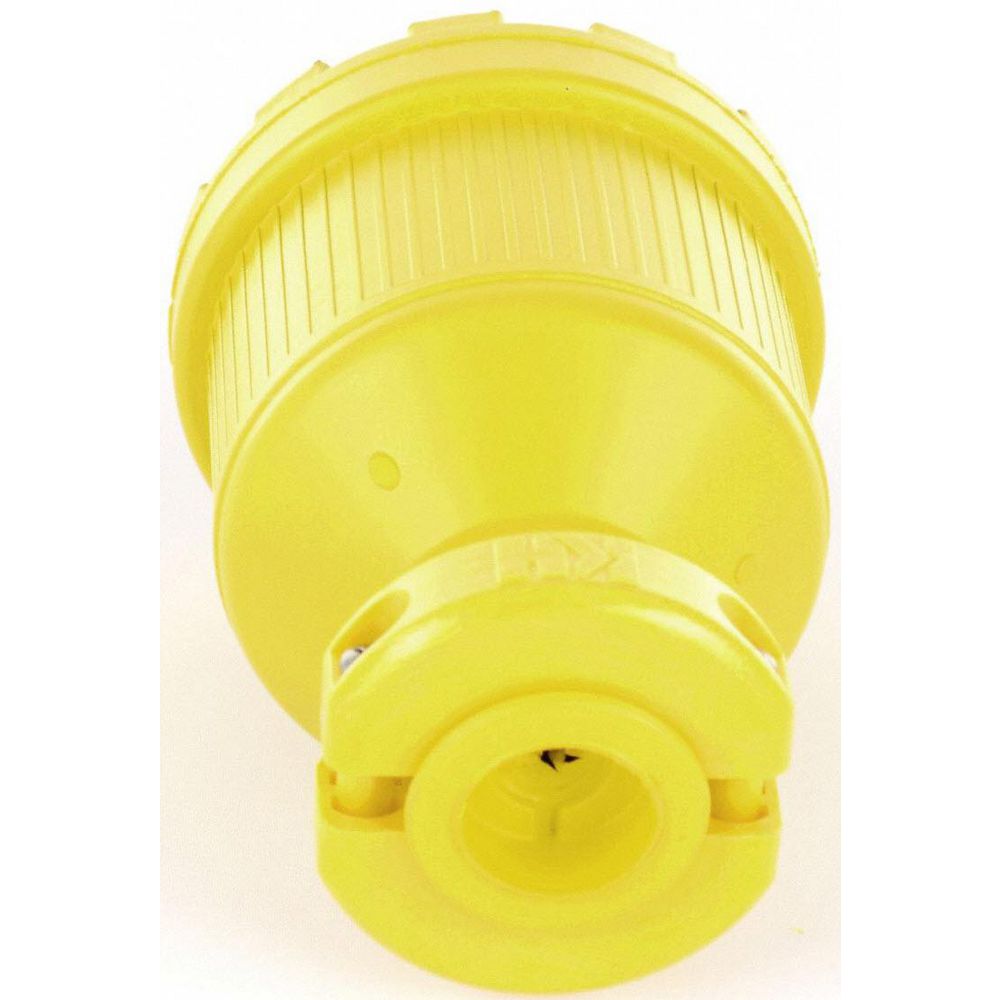

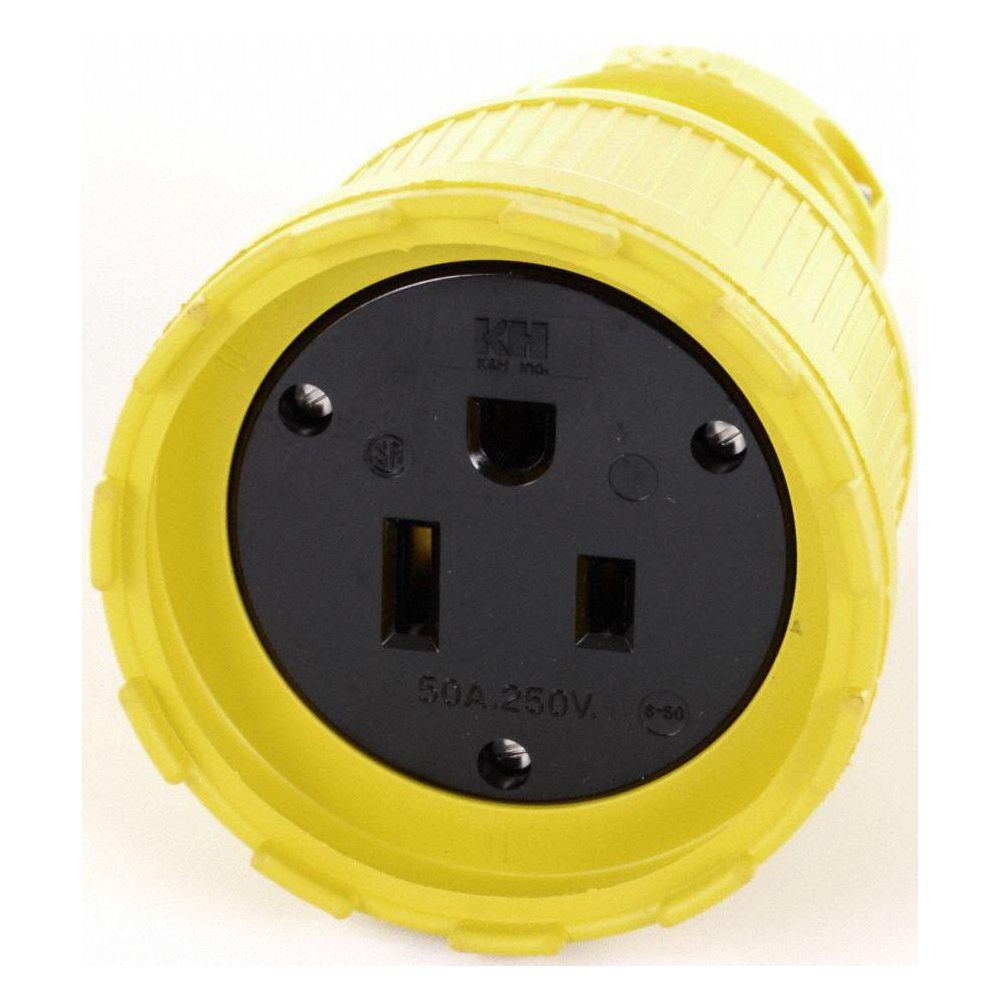

KH Industries 50 Amp Industrial Grade Standard Straight Blade Connector, 6-50R NEMA Configuration, Yellow
Hover over image to magnify
#912475-3 | Pkg Qty: 1
$148.54 pkg | $148.54 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Amperage
50 A
Mfr. Part Number
C650DF
Amps
50 A
NEMA Configuration - Plugs & Connectors
6-50
Antimicrobial
No
NEMA Plug Configuration
6-50R
Brand
KH INDUSTRIES
NEMA Receptacle Configuration
6-50R
Color Family
Yellow
Number of Poles
2
Cord Size
0.600 in to 1.300 in
Number of Wires
3
Corrosion Resistant
No
Package Quantity
1
Current Rating
50 A
Phase
Single
Description
Re-Wireable, Flip Seal Connector, Industrial Grade, Moisture, Dust, and Weather Resistant. Grounded
Power Indicating Light
No
Grade
Industrial
Power Indicator
No
Grounding
Grounded
Shipping Weight
1.41 lb.
Housing Color
Yellow
Standards
CSA/US Certified
Housing Material
Rubber Housing with Phenolic
Sub-Category
Connectors
IP Rating
Not Rated
Type
Straight Blade
Item
Straight Blade Connector
Voltage
250VAC
Material
Neoprene Rubber/Phenolic
Voltage Rating
250V AC
Material of Construction
Neoprene Rubber/Phenolic
Wiring Style
Standard
General
Amps - Plugs and Receptacles
50
Special Features
Moisture, Dust, and Weather Resistant
Grade - Plugs and Receptacles
Industrial
Voltage - Plugs and Receptacles
250V AC
NEMA Plug Configuration - Plugs and Receptacles
6-50R
Product Description
With rugged yellow thermoplastic and rubber material construction, this connecter helps withstand impact and abrasion while keeping moisture, dust, and dirt away from important points of contact. The grounded, rewireable design is also recommended for industrial, commercial, and agricultural applications.
Expertly Selected Product Pairings
Item Barcode
Connector,6-50R,250V,3 Wire,
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 6PGT5 | Connector,6- 50R,250V,3 |
 | UNSPSC CODES | 39121421 | |
 | VMRS (ATA) CODES | 053-006-009 | Connector,6- 50R,250V,3 |
