LOCTITE

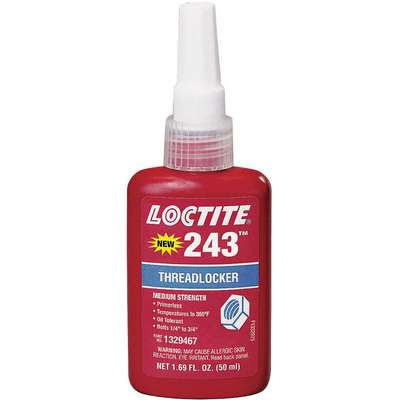

Loctite Primerless Threadlocker: Series 243, Primerless Threadlocker, Blue, Liquid, 50 mL, Bottle

Hover over image to magnify
Primerless Threadlocker 243,
Primerless Threadlocker 243,
Loctite Primerless Threadlocker: Series 243, Primerless Threadlocker, Blue, Liquid, 50 mL, Bottle Video
Loctite Primerless Threadlocker: Series 243, Primerless Threadlocker, Blue, Liquid, 50 mL, Bottle Video

#917553 | Pkg Qty: 1

$63.07 pkg | $63.07 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Appearance
Blue
Package Quantity
1
Begins to Harden
5 min.
Performance Temperature Range
-65 deg. F to 360 deg. F
Brand
LOCTITE
Physical Form
Liquid
Chemical Type
Anaerobic
Removable With
Hand Tools
Color Family
Blue
Series
243
Fills
Gaps Between Threads
Shipping Weight
.18 lb.
Fixture Time
10 min.
Size
50 mL
Flash Point
199 deg. F
Specific Gravity
1.08
For Fastener Diameter
1/4 in. to 3/4 in.
Temperature Range
-65 to 360 deg. F
Full Cure
24 hr.
Threadlocker Classification
Primerless Threadlocker
Full Cure Time
1 day
Threadlocker Disassembly
Removable
Gap Fill
0.005 in.
Threadlocker Strength
Medium Strength
Item
Primerless Medium-Strength Threadlocker
Type
Medium Strength
Mfr. Part Number
1329467
Viscosity
1,300 to 3,000 cP
Net Weight
50 mL
General
Application
For Locking and Sealing Fasteners up to 3/4 in.
Pack Size
1 EA
Breakaway Torque
230 in-lb
Prevailing Torque
40 in-lb
Breakaway Torque Range
201 in-lb to 300 in-lb
Product Form
Liquid
Clean Up Method
Solvent, Wire Brush
Recommended Surface Preparation
Dry Surface
Compatible Materials
Brass, Bronze, Copper, Iron, Manganese, Nickel, Plated Metal, Steel, Zinc
Removal Method
Hand Tool
Container Size Range
Over 1.1 oz
Standards
NSF 61, RoHS Certified
Container Size and Type
1.69 fl oz Bottle
Storage Requirements
8 Degrees to 21 Degrees C
Container and Size
Bottle Over 1.1 oz
Threadlocker Properties
Oil Tolerant, Primerless
Cure Type
Anaerobic
Torque and Strength
230 in-lb Medium
For Material Type
Aluminum, Brass, Bronze, Copper, Iron, Manganese, Monel, Nickel, Plated Metals, Stainless Steel, Steel, Zinc
VOC Content Range
11 g/L to 50 g/L
For Maximum Thread Diameter
3/4 in
VOC Content Weight Percentage
0.0001
Green Certification/Other Recognition
NSF® Certified (Sustainability or Environmental Standard)
Working Time
10 min
Minimum Viscosity
2,000 cps
Working Time Range
6 min to 10 min

Product Description

1-step formula develops usable strength within 1 hr., with no need for mixing with an activator or priming surfaces prior to application. When joining pieces with a threaded fastener, threadlockers fill gaps between threads, and help form solid, unitized assemblies. They prevent fasteners from loosening due to vibration and protect against rust and corrosion, while still allowing parts to be separated using hand tools.
