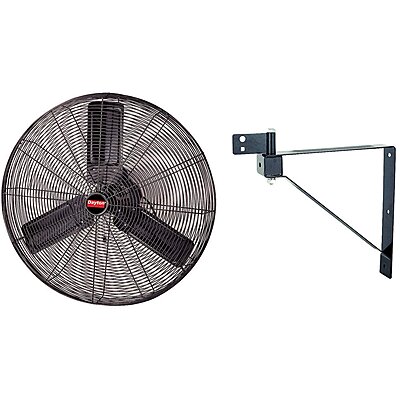

Dayton 30" Light-Duty Industrial Fan, Stationary, Ceiling, Wall, 120 VAC

Hover over image to magnify
Air Circulator,30 In,Wall
Air Circulator,30 In,Wall

#911575 | Pkg Qty: 1

$304.53 pkg | $304.53 ea
This item requires special shipping, additional charges may apply.

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Air Circulator Height
34-1/2 in.
Motor RPM
1100/900
Air Flow
4,650/7,250 cfm
Motor Type
Permanent Split Capacitor
Assembled/Unassembled
No
Mounting Location
Ceiling, Wall
Bearing Type
Ball
NEMA Plug Configuration
5-15P
Blade Diameter
30 in.
Number of Blades
3
Blade Material
Aluminum
Number of Conductors
3
Brand
DAYTON
Oscillating
No
Cord Length
9 ft.
Outside Diameter
33 in.
Drive Type
Direct
Package Quantity
1
Duty
Light Duty
Phase
1
Guard Material
Steel
Shaft Diameter
17 mm
Hz
60 Hz
Shipping Weight
44 lb.
Item
Industrial Fan
Sound Level
77 dBA
Mfr. Part Number
1RWB4
Standards
cULus Listed
Mobile/Stationary
Stationary
Thermal Protection
Automatic
Motor Enclosure
Open Air Over
Voltage
120V AC
Motor HP
1/4
Watts
320/225
Motor Insulation
Class B
Width
33 in.
General
Air Velocity @ 10 Ft.
1010/680 fpm
Fan Cord Length
9 ft
Air Velocity @ 20 Ft.
715/480 fpm
Fan Housing Material
Steel
Air Velocity @ 40 Ft.
370/350 fpm
Fan Mounting Location
Ceiling, Wall
Air Velocity @ 60 Ft.
280/250 fpm
Includes
Mounting Hardware, Secondary Safety Support Cable, Wall/Ceiling Bracket
Application
Spot Cooling and People Cooling
Max. Ambient Temp.
104 Degrees F
Assembly Required
Yes
Wheeled Base
Stationary
Environmental Applications
Industrial
Wire Guard Finish
Polyester Powder Coated Black

Product Description

Light-duty industrial wall-mount fans cool light manufacturing areas, warehouses, and other dry, clean spaces where floor space is limited. These air circulators are used where an office fan is inadequate and a heavier-duty or wet-location industrial fan isn't needed. Compared to standard-duty industrial fans, these light-duty fans are made of lighter-gauge materials and have a lower-horsepower motor with less-robust bearings.

Industrial wall-mount fans attach to a wall, ceiling, or beam so they won't take up floor space, block traffic flow, or create a tripping hazard. These air circulators are often used for cooling people, machinery, and products in aisles, tight spaces, and busy areas of manufacturing plants, warehouses, and shipping operations. Made of heavy-gauge materials suitable for daily use, these axial fans have a powerful motor that drives the fan blades to move large volumes of air and feature high-performance bearings for a long life. A guard encloses the fan blades to help protect them from damage and prevent injuries from accidental contact.
