SCHNEIDER ELECTRIC

Schneider Electric 240VAC IEC Magnetic Contactor; No. of Poles 3, Reversing: No, 25 Full Load Amps-Inductive

Hover over image to magnify
Contactor,Iec,240VAC,3P,25A
PI_Asset_1984662

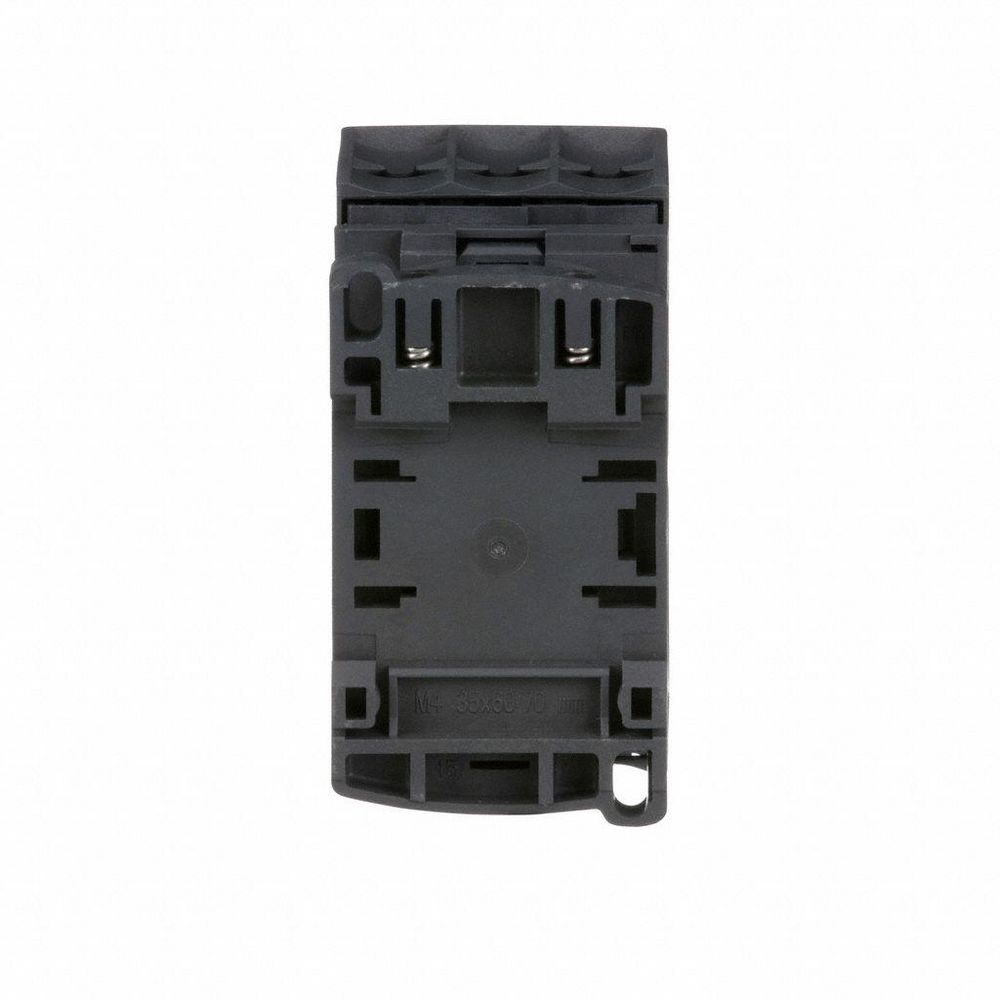

PI_Asset_1988685
PI_Asset_1991800
PI_Asset_1992768
Contactor,Iec,240VAC,3P,25A
PI_Asset_1984662
PI_Asset_1988685
PI_Asset_1991800
PI_Asset_1992768

#915065-7 | Pkg Qty: 1

$229.12 pkg | $229.12 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Action
Nonreversing
Height
3.36 in.
Brand
SCHNEIDER ELECTRIC
Hz
50/60
Coil Volts
240 VAC
Item
IEC Magnetic Contactor
Depth
3.62 in.
Mfr. Part Number
LC1D25U7
Enclosure NEMA Rating
No Enclosure
Number of Poles
3
Enclosure Type
Open
Package Quantity
1
HP @ 1 Phase - 120 V
2 hp
Reversing
No
HP @ 1 Phase - 240 V
3 hp
Series
TeSys
HP @ 3 Phase - 240 V
7-1/2 hp
Shipping Weight
.95 lb.
HP @ 3 Phase - 480 V
15 hp
Width
1.77 in.
General
Aux. Contact Configuration
1NO/1NC
HP @ 1 Phase - 240V
3 hp
Auxiliary Contact Form
1NC/1NO
HP @ 3 Phase - 208V
7 1/2 hp
Contactor Type
IEC
HP @ 3 Phase - 230V
7-1/2
Frame / Series / Class / Code
TeSys
HP @ 3 Phase - 240V
7 1/2 hp
Full Load Amps-Inductive
25 A
HP @ 3 Phase - 480V
15 hp
Full Load Amps-Resistive
40 A
HP @ 3 Phase - 575V
20 hp
HP @ 1 Phase - 120V
2 hp
Standards
CSA, UL
HP @ 1 Phase - 230V
3

Product Description

For use in industrial motor control applications and suitable for DIN rail or panel mounting. You can combine a contactor with an overload relay to make a complete motor starter. Model comes with saddle clamp terminals, inclined wire guides, captive screws, and is IP20 touch-safe with removable terminal cover. Designed for a mechanical life of 15 million operations. Contactor includes built-in auxiliary contacts.
