SCHNEIDER ELECTRIC

Schneider Electric Overload Relay, Trip Class: 10, Current Range: 7.00 to 10.0A, Number of Poles: 3

Hover over image to magnify

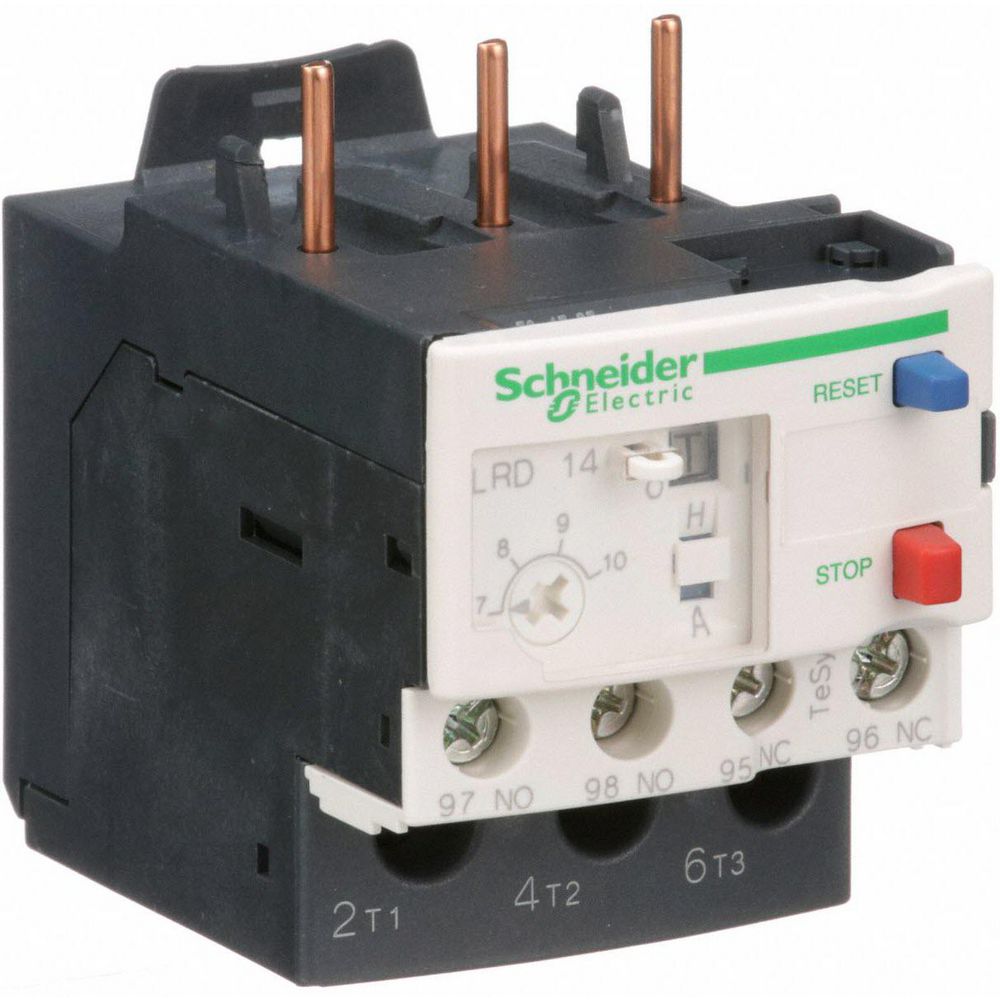

Iec Overload Relay
PI_Asset_1369692
Iec Overload Relay
PI_Asset_1369692
Double tap image to magnify
Iec Overload Relay
3DY99_SS01_R01_C23
Iec Overload Relay
3DY99_SS01_R01_C23

#912319-2Pkg Qty: 1

$88.31 pkg | $88.31 ea

In Stock

Shipping to 43085
Expected to arrive Fri. Mar 28.
|

Technical Specifications

Key Specifications
Brand
SCHNEIDER ELECTRIC
Package Quantity
1
Current Range
7.00 to 10.0A
Sensing Method
Bimetallic
Depth
2-3/4 in.
Shipping Weight
.3 lb.
Height
3.62 in.
Starter Type
IEC
Item
Overload Relay
Voltage
690 VAC
Mfr. Part Number
LRD14
Width
1.77 in.
Number of Poles
3
General
Body Depth - Relay
2.75 in
Overload Relay Current Range
7.0 to 10.0A
Body Height - Relay
3.62 in
Reset Type - Relay
Manual
Body Width - Relay
1.77 in
Standards
UL, CSA, ATEX D 94/9/CE, GOST
Features
Single Phase Sensitivity, Differential
Trip Class - Overload
10
For Use With
LC1D09 thru LC1D32 Contactor
Use With - Contactors and Starters
Mfr. Series LC1D09 to LC1D32 Contactors
Overall Height - Relay
3.62 in

Product Description

TeSys™ IEC Contactors and Overload Relays For industrial motor control applications, combine a contactor with an overload relay to make a complete motor starter. Rated 600VAC. Saddle clamp terminals. DIN rail- or panel-mount. CSA and CE Certified. Overload Relays For 3-phase applications. Bimetallic elements. Class 10 trip characteristics with 1-phase sensitivity. Ambient compensated. Adjustable current range. Lockable, sealable, manual/auto reset, test trip. Mount to underside of contactor.
