SCHNEIDER ELECTRIC

Schneider Electric Overload Relay, Trip Class: 10, Current Range: 5.50 to 8.00A, Number of Poles: 3

Hover over image to magnify

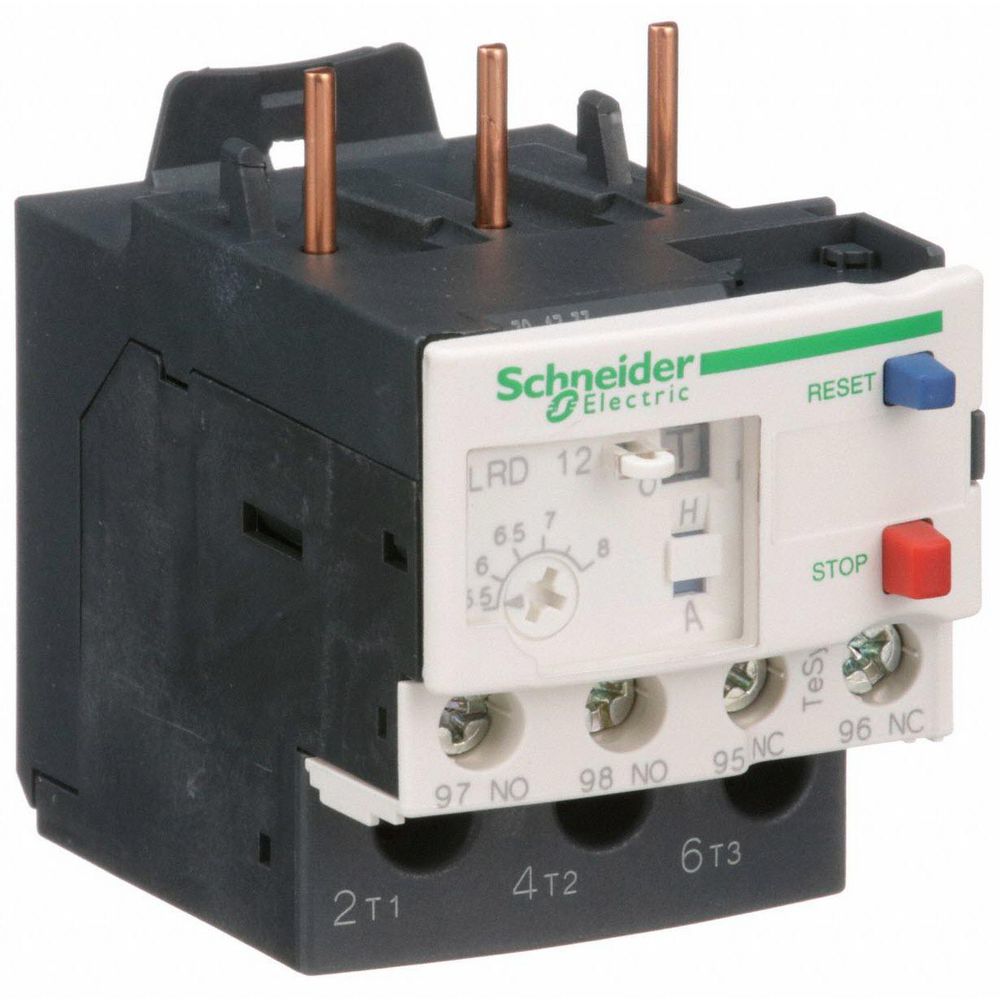

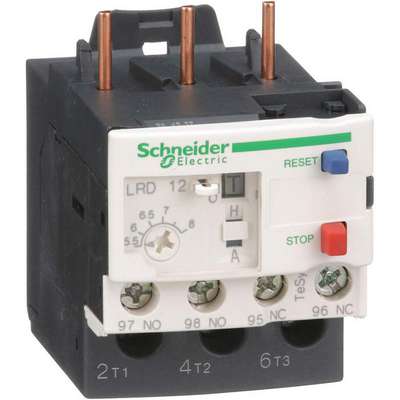

Iec Overload Relay
PI_Asset_1368672
Iec Overload Relay
PI_Asset_1368672

#913917-2 | Pkg Qty: 1

$106.83 pkg | $106.83 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Brand
SCHNEIDER ELECTRIC
Package Quantity
1
Current Range
5.50 to 8.00A
Sensing Method
Bimetallic
Depth
2-3/4 in.
Shipping Weight
.2 lb.
Height
3.62 in.
Starter Type
IEC
Item
Overload Relay
Voltage
690 VAC
Mfr. Part Number
LRD12
Width
1.77 in.
Number of Poles
3
General
Body Depth - Relay
2.75 in
Overload Relay Current Range
5.5 to 8.0A
Body Height - Relay
3.62 in
Reset Type - Relay
Manual
Body Width - Relay
1.77 in
Standards
UL, CSA, ATEX D 94/9/CE, GOST
Features
Single Phase Sensitivity
Trip Class
10
For Use With
LC1D09 thru LC1D32 Contactor
Trip Class - Overload
10
Overall Height - Relay
3.62 in
Use With - Contactors and Starters
Mfr. Series LC1D09 to LC1D32 Contactors

Product Description

TeSys™ IEC Contactors and Overload Relays For industrial motor control applications, combine a contactor with an overload relay to make a complete motor starter. Rated 600VAC. Saddle clamp terminals. DIN rail- or panel-mount. CSA and CE Certified. Overload Relays For 3-phase applications. Bimetallic elements. Class 10 trip characteristics with 1-phase sensitivity. Ambient compensated. Adjustable current range. Lockable, sealable, manual/auto reset, test trip. Mount to underside of contactor.
