GE

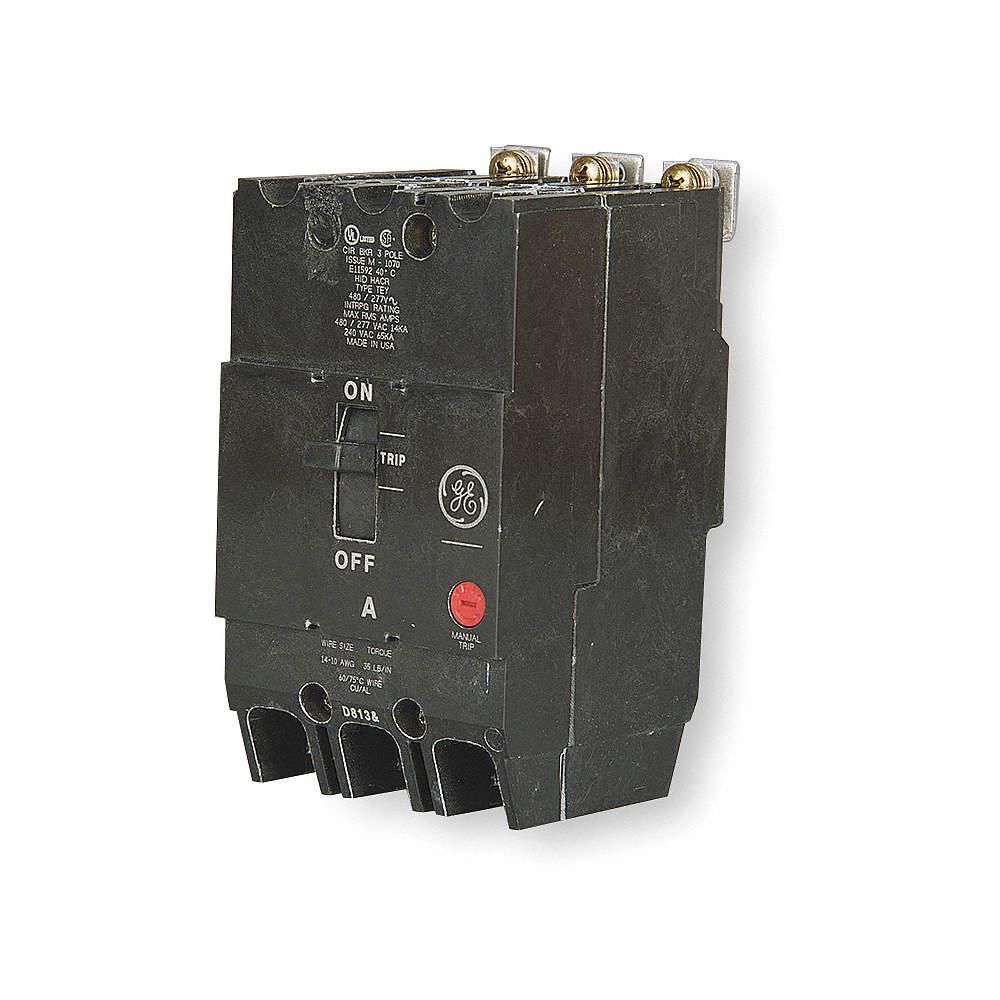

GE Molded Case Circuit Breaker: 30 A Amps, 14Ka At 277/480V Ac, Fixed, Lug, Abc

Hover over image to magnify

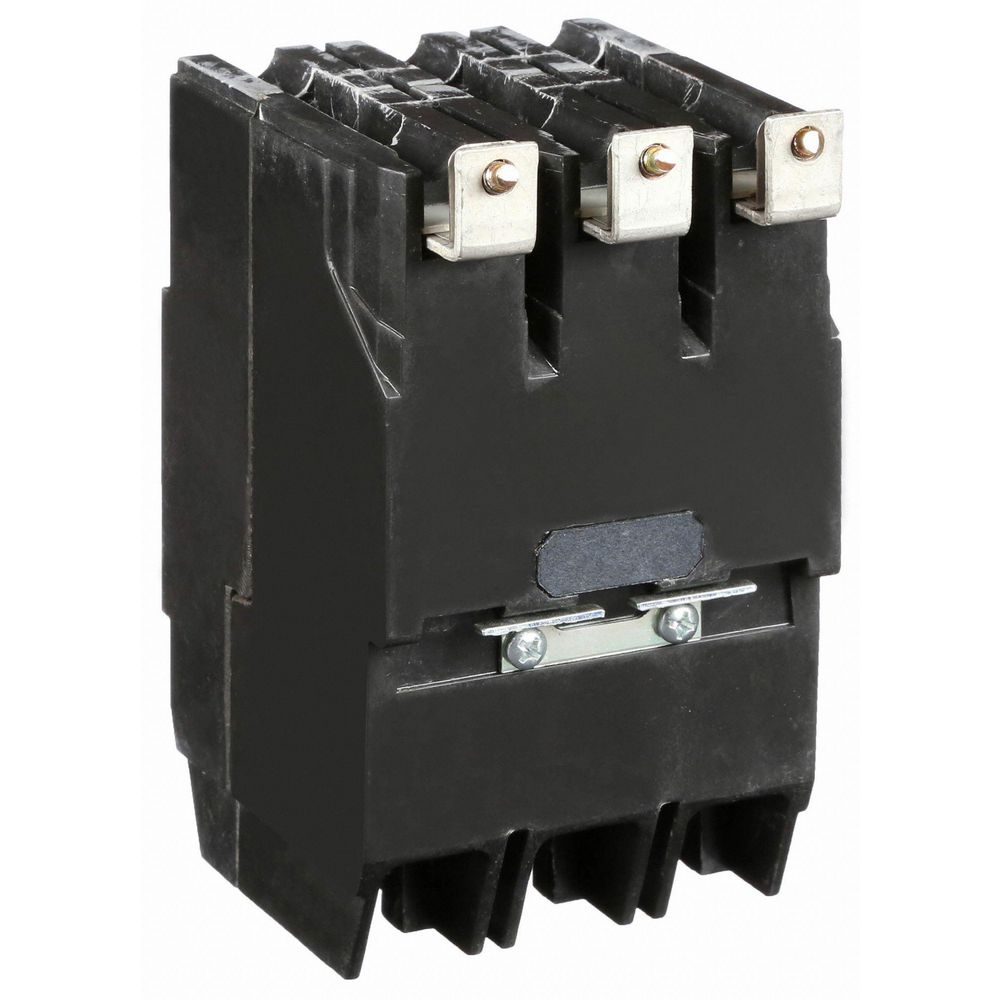

Circuit Breaker,30A,Bolt On,
PI_Asset_3734008
Circuit Breaker,30A,Bolt On,
PI_Asset_3734008
Double tap image to magnify
Circuit Breaker,30A,Bolt On,
3HXF2_1
Circuit Breaker,30A,Bolt On,
3HXF2_1

#942252-7Pkg Qty: 1

$885.12 pkg | $885.12 ea

In Stock

Shipping to 43085
Expected to arrive Tue. Apr 01.
|

Technical Specifications

Key Specifications
AC Voltage Rating
277/480VAC
Instantaneous Trip
Fixed
Air @ 120 VAC
14kA
Item
Molded Case Circuit Breaker
Air @ 125 VDC
Not Rated
Length
5-1/4 in.
Air @ 240 VAC
14kA
Maximum Air Rating
14kA at 277/480VAC
Air @ 277 VAC
14kA
Maximum Wire Size
10 AWG
Air @ 48 VDC
Not Rated
Mfr. Part Number
TEY330
Air @ 480 VAC
14kA
Minimum Wire Size
14 AWG
Air @ 600 VAC
Not Rated
Number of Poles
3
Air @ 65 VDC
Not Rated
Package Quantity
1
Amps
30 A
Phase
Three
Brand
GE
Phase Connection
ABC
Circuit Breaker Type
Standard
Series
TEY
DC Voltage Rating
250VDC
Shipping Weight
1.99 lb.
Depth
3.06 in.
Terminal Connection
Lug
For Use With
GE AE Lighting Panels
Trip Type
Thermal Magnetic
Frame Size
125A/TEY
Voltage
480Y - 277VAC
Height
5-1/4 in.
Width
3 in.
High Amp Trip Setting
575 A
General
Circuit Breaker Actuator
Toggle
Max. Wire Size
10 AWG
Circuit Breaker Mounting Style
Bolt On Panelboard
Min. Wire Size
14 AWG
Max. AIR Rating
14kA at 277/480V AC
Standards
CSA, UL

Product Description

TEY-frame GE molded case circuit breakers are rated up to 125A and interrupt excessive current flows to protect devices from electrical damage. They're typically used with GE light panels, motor control centers, and panelboards. Their current-carrying parts, mechanisms, and trip devices are contained in a molded case.
