DAYTON

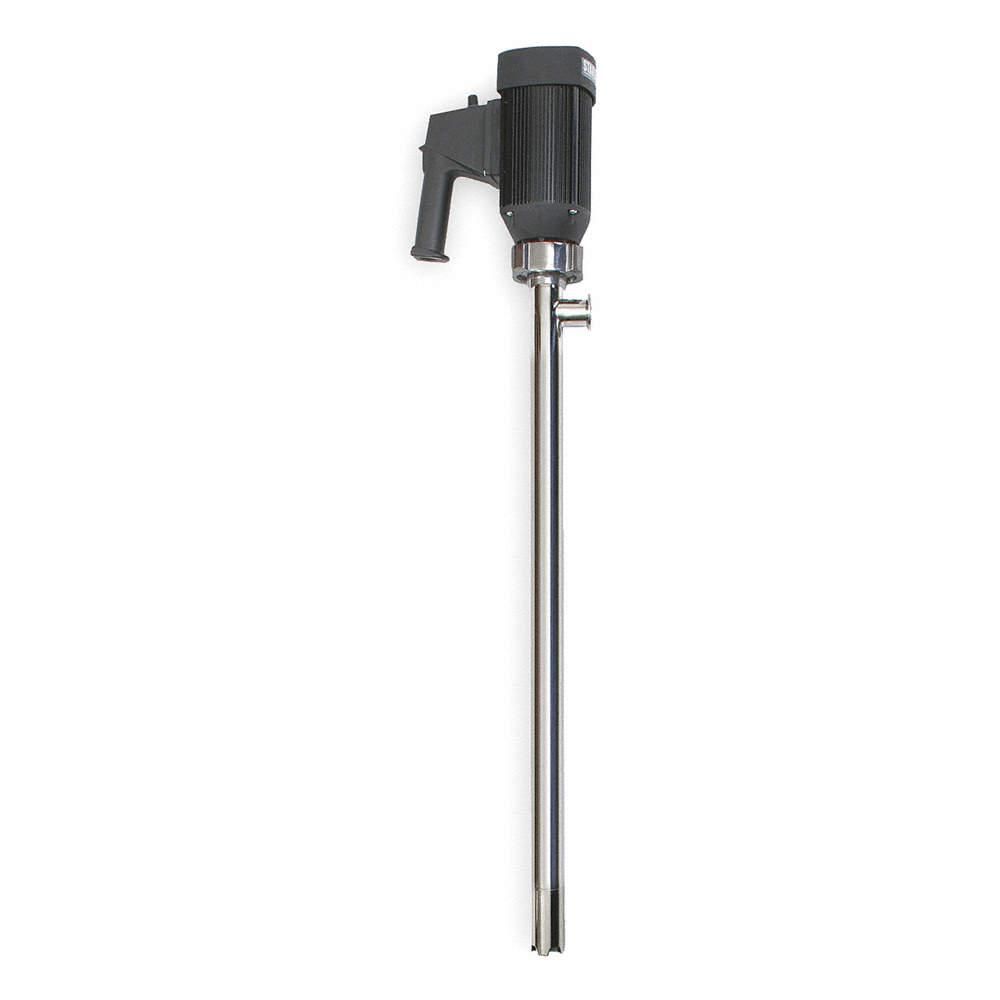

Electric Operated Drum Pump: 1 1/10 hp Motor HP, 55 gal For Container Size, 110V AC, 8.5

Hover over image to magnify
Electric Drum Pump,110V,35 Gpm,
Electric Drum Pump,110V,35 Gpm,

#940097-8 | Pkg Qty: 1

$3,072.97 pkg | $3,072.97 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Brand
DAYTON
Package Quantity
1
Mfr. Part Number
3PXK1
Shipping Weight
27.67 lb.
General
Compatible Chemicals
Acetic Acid 20%, Acetic Acid 80%, Ammonia (Liquids), Ammonium Hydroxide, Antifreeze (Coolant), Calcium Chloride, Citric Acid 50%, Deionized Water, Ethylene Glycol, Fresh Water, Glycerin, Hydraulic Oils (Petroleum), Hydraulic Oils (Synthetic), Methyl Chloride, Motor Oil, Nitric Acid (10% Solution), Nitric Acid (20% Solution), Nitric Acid (50% Solution), Nitric Acid (Concentrated Solution), Phosphoric Acid (40% Solution), Potassium Hydroxide (50%), Salt Water, Sodium Bicarbonate (10%), Sodium Bisulfate, Sodium Bisulfite, Sodium Hydroxide/Caustic Soda (20%), Sodium Hydroxide/Caustic Soda (50%), Trichlorethylene (50%)
Max. Oil Flow
7 gpm
Discharge Connection Type
Tri-Clamp
Max. Outlet Pressure
40 psi
Discharge Tube Outlet ID
1 in
Max. Viscosity
1,000 cps
Discharge Tube Outlet OD
1 1/2 in
Noise Level
88 db
For Container Size
55 gal
Nominal Voltage
110V AC
For Container Type
Drum
Not Recommended Chemicals
Acetic Acid (Glacial), Acetone, Chromic Acid 30%, Chromic Acid 50%, Cyclohexane, DEF, Diesel Fuel, Ethyl (Ethanol), Ethyl Acetate, Formaldehyde, Formaldehyde 40%, Formic Acid, Gasoline, Heptane, Hexane, Hydrochloric/Muriatic Acid (100%), Hydrochloric/Muriatic Acid (20%), Hydrochloric/Muriatic Acid (37%), Hydrofluoric Acid (20%), Hydrofluoric Acid (75%), Hydrofluoric Acid 100%, Isopropyl (Isopropanol), Kerosene, Lacquer Thinners, Methyl (Methanol), Methyl Ethyl Ketone (MEK), Sodium Hypochlorite/Bleach (to 20%), Stoddard Solvent (Mineral Spirits), Sulfuric Acid (10% - 75%), Sulfuric Acid (75% - 100%), Toluene, Xylene
For Media Type
Acetic Acid, Ammonia, Ammonium Hydroxide, Antifreeze, Calcium Chloride, Citric Acid, Ethylene Glycol, Glycerin, Hydraulic Oil, Methyl Chloride, Motor Oil, Nitric Acid, Phosphoric Acid (40% Solution), Potassium Hydroxide (50%), Sodium Bicarbonate, Sodium Bisulfate, Sodium Bisulfite, Sodium Hydroxide, Trichlorethylene, Water
Number of Phases
1
Frequency (Hz)
50/60
Pump Package Type
Basic Pump without Discharge Hose
Housing Material - Pumps
316 Stainless Steel
Rated Voltage
110V AC
Includes Suction Tube
Yes
Runs Dry
Yes
Max. Flow Rate
35 gpm
Suction Tube ID
1 1/3 in
Max. Fluid Temp.
175 Degrees F
Suction Tube Material
Stainless Steel
Max. Head - Pumps
92 ft
Suction Tube OD
1 3/5 in
Max. Head Pressure
40 psi

Product Description

Electric Operated Drum Pump, Voltage 110VAC, Hz 60, Phase 1, HP 1, Motor RPM 0-10,000, Motor Enclosure TEFC, Motor Type Electric AC Brush, Housing Material 316L Stainless Steel, Wetted Materials 316L Stainless Steel, PTFE, Discharge Tubing Material -, For Use With SP-ENC-V / SP-8700-39, GPM 15, Max. Pressure 32 psi, Max. Viscosity 1,000 cps, Max. GPM for Oil 7, Max. GPM for Water 16, Inlet Size 1-5/8 In., Outlet Size 1-1/4 In., Suction Tube Length 39 in, Suction Tube Type Impeller, Metered No

Item Barcode
9400978
Electric Drum Pump,110V,35 Gpm,
 NameItemDescription
Grainger DropshipGrainger Dropship3PXK1
UNSPSC CODESUNSPSC CODES40151529
VMRS (ATA) CODESVMRS (ATA) CODES053-006-009
