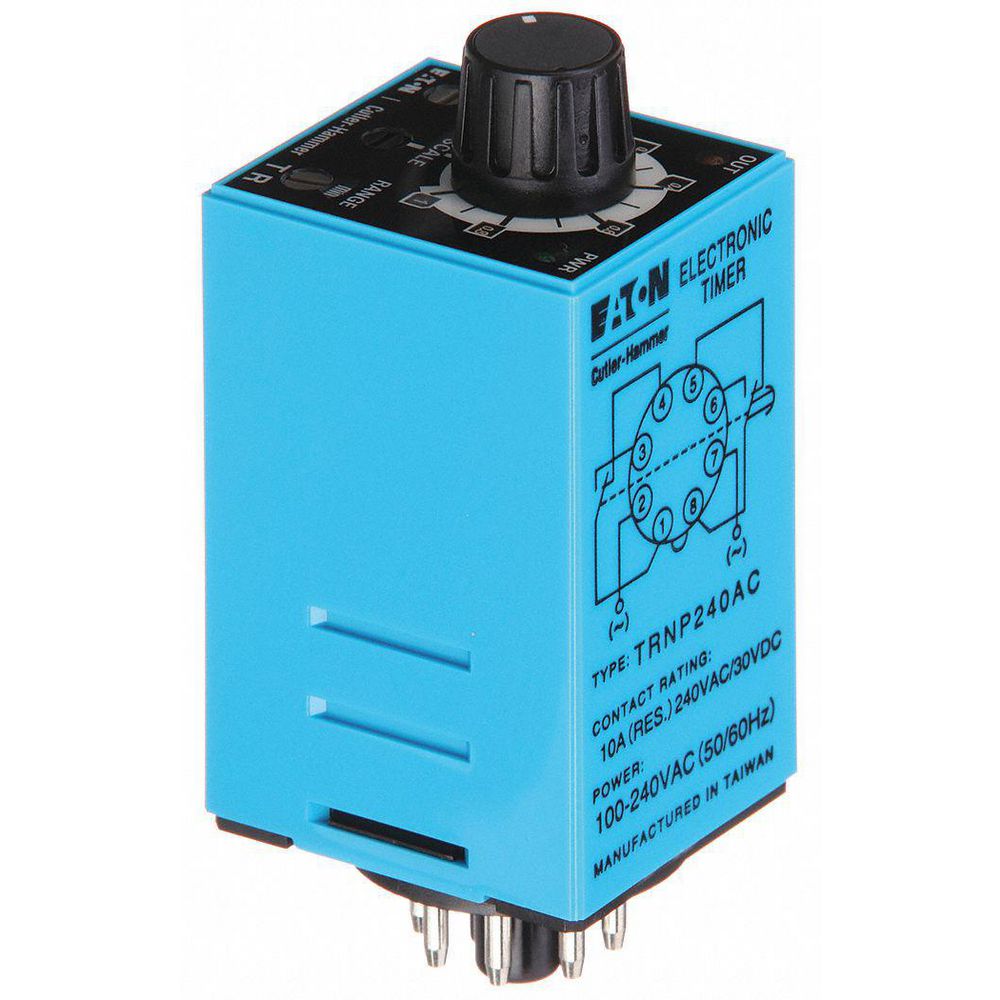

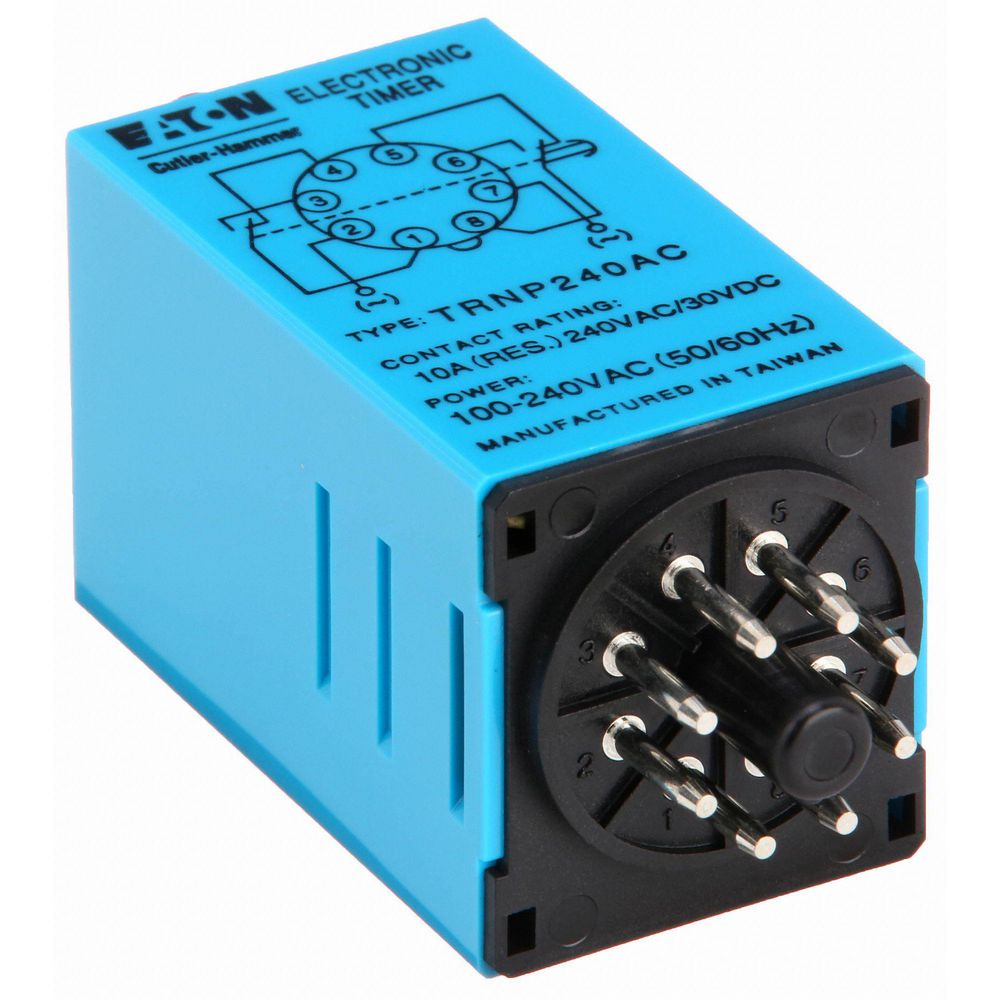

Eaton Multi-Function Time Delay Relay: Panel Door Mounted, 100 To 240V Ac, 10 A, 8 Pins/Terminals

Name: Eaton Multi-Function Time Delay Relay: Panel Door Mounted, 100 To 240V Ac, 10 A, 8 Pins/Terminals
Brand: EATON
SKU: 9418302
Price: 329.74 USD
Availability: InStock

Hover over image to magnify

Double tap image to magnify

#941830-2Pkg Qty: 1

$329.74 pkg | $329.74 ea

In Stock

Shipping to 43085

Expected to arrive Fri. Apr 04.

Technical Specifications

Key Specifications

Adjustment Method

Rotary Knob

Item

Multi-Function Time Delay Relay

Body Depth

1.58 in.

Maximum Time Setting

600 hr.

Body Height

3.07 in.

Mfr. Part Number

TRNP240AC

Body Width

1.42 in.

Minimum Time Setting

0.1 sec.

Brand

EATON

Number of Pins

Coil Volts

120VAC

Package Quantity

Contact Form

DPDT

Shipping Weight

.2 lb.

Contact Material

Silver Alloy

Socket Code

Electrical Connection

Socket

General

Base Shape

Octal

Input Voltage

100 to 240V DC

Coil Voltage

100 to 240V AC

Maximum Time Setting Range

1 day or more

Contact Rating (AC)

10 A @ 240V

Mounting Style

Panel Door

Contact Rating (DC)

10 A @ 30V

Number of Delay Functions

Current Rating

10 A

Overall Depth

3.07 in

Delay Function

Flasher Pause or On First, On Delay, Power Triggered, Single Shot Leading Edge Voltage Controlled

Power Consumption

6.5 VA

Delay Function Group

Cycle/Flasher

Relay Mounting Style

Panel Door

Electrical Connection Type

Sealing

Semi-Sealed

Environmental Protection

Enclosed

Socket Code Configurator

Panel Door / Octal / 8

Environmental Protection Combo

Semi-Sealed / IP20

Standards

CE Certified, CSA Certified, cULus Listed, TUV Certified

Frequency

50/60 Hz

Time Range

0.1 sec - 600 hr

IP Rating

IP20

Product Description

Multi-Function Time Delay Relay, Function - Timing Relay Cycle (Off First), Cycle (On First), Interval, ON Delay, Coil Volts 120V AC, AC Contact Rating - Relay 10A @ 250V, DC Contact Rating - Relay 10A @ 30V, Base Type - Plug In Relay Square, Number of Pins - Relay 8, Mounting - Relay Plug In, Through Panel, Contact Form - Relay DPDT, Power Consumption - Relay 6.5 VA, Adjustment Method - Timer Rotary Knob, Min. Time Setting - Timer 0.1 sec, Max. Time Setting - Timer 25 day, Status Indicator LED
