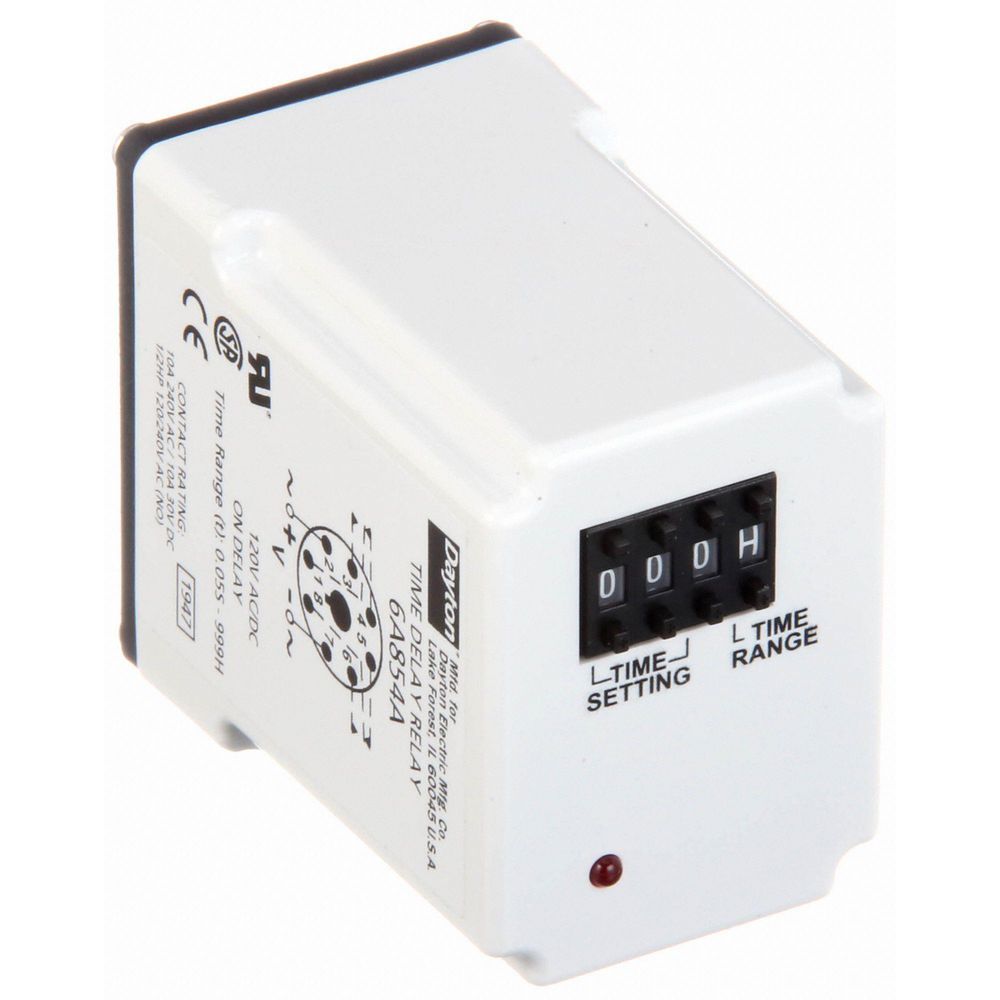

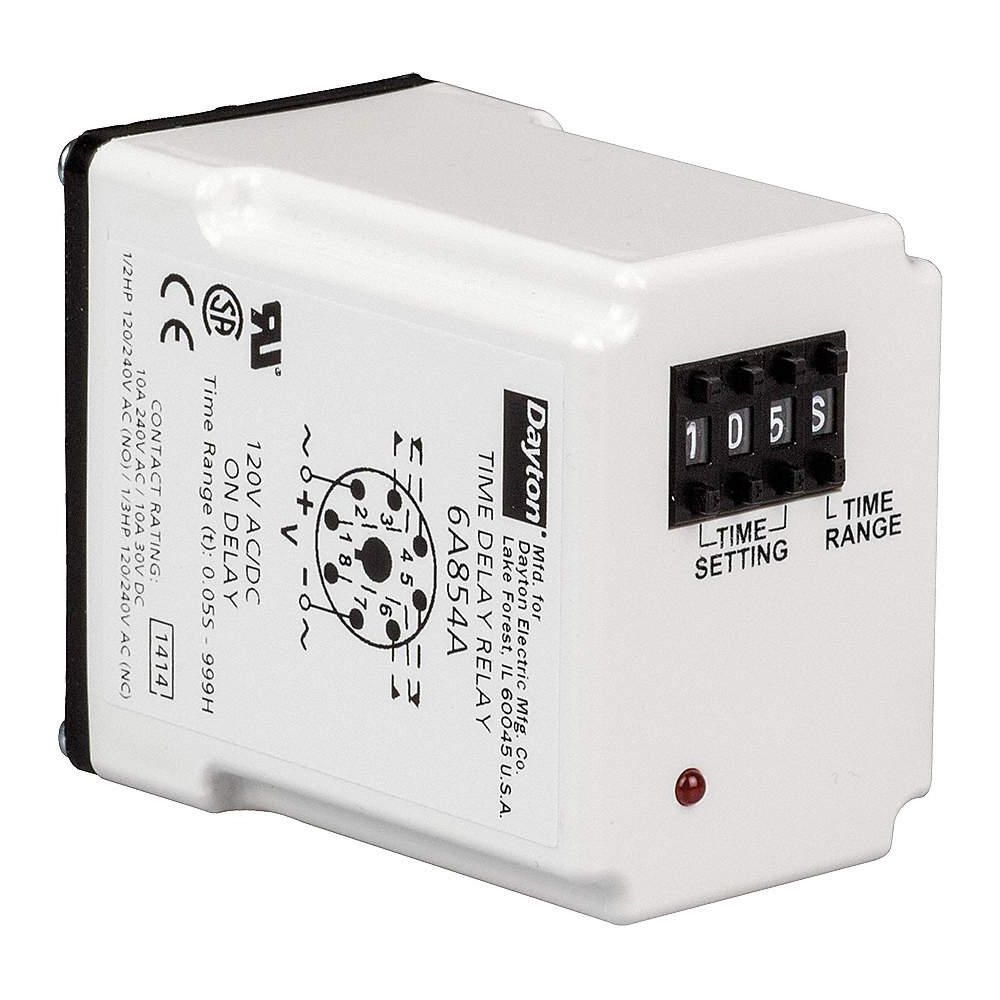

Dayton Single Function Time Delay Relay, 12VDC Coil Volts, 10A Contact Amp Rating (Resistive), Contact Form
Hover over image to magnify
#924676-2 | Pkg Qty: 1
$99.99 pkg | $99.99 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
AC Contact Rating
10 A @ 240 V
Mfr. Part Number
5DPZ7
Adjustment Method
Push Button Thumbwheels
Minimum Time Setting
0.05 sec.
Base Type
Octal
Mounting
Plug In
Body Depth
1.7 in.
Number of Contacts
2
Body Height
2.9 in.
Number of Digits
4
Body Width
2.4 in.
Number of Functions
1
Brand
DAYTON
Number of Pins
8
Coil Rating
3W
Number of Poles
2
Coil VA Rating
3
Operating Functions
1
Coil Volts
12 VDC
Overall Height
3 in.
Contact Form
DPDT
Package Quantity
1
Contact Material
Silver Nickel
Pins
8
DC Contact Rating
10 A @ 30 V
Relay Power Consumption
3.0 W
Electrical Connection
Socket
Resistive Contact Amp Rating
10A
Function
On Delay
Shipping Weight
.33 lb.
Hz
50/60
Socket
5X852, 1EGP3, 1EGP5
Input Power Consumption
3.0 W
Socket Code
A
Input or Control Voltage
12 VDC
Status Indicator
LED
Item
Single Function Time Delay Relay
Type
Plug-In
Maximum Time Setting
999 hr.
General
AC Contact Rating - Relay
10A @ 240V
HP @ 240V
1/2
Adjustment Method - Timer
Push Button, Rotary Knob
Hz - Electrical
50 Hz, 60 Hz
Base Type - Plug In Relay
Octal
Max. Time Setting - Timer
41 day 15 hr
Body Depth - Relay
1.7 in
Min. Time Setting - Timer
0.05 sec
Body Height - Relay
2.9 in
Mounting - Relay
Plug In
Body Width - Relay
2.4 in
Number of Pins - Relay
8
Contact Form - Relay
DPDT
Overall Height - Relay
3 in
DC Contact Rating - Relay
10A @ 30V
Power Consumption - Relay
3 W
Function - Timing Relay
On Delay
Standards
UR, CSA, CE
HP @ 120V
1/3
Timing Relay Functionality
On Delay
Product Description
This programmable time delay relay offers an easy and accurate way to any time delay between 50ms and 999 hours with an On Delay function. Programming is accomplished by using a pushbutton thumbwheel to select one of seven built-in time ranges and to digitally set the time delay required. An LED indicates timing mode and time-out condition.
