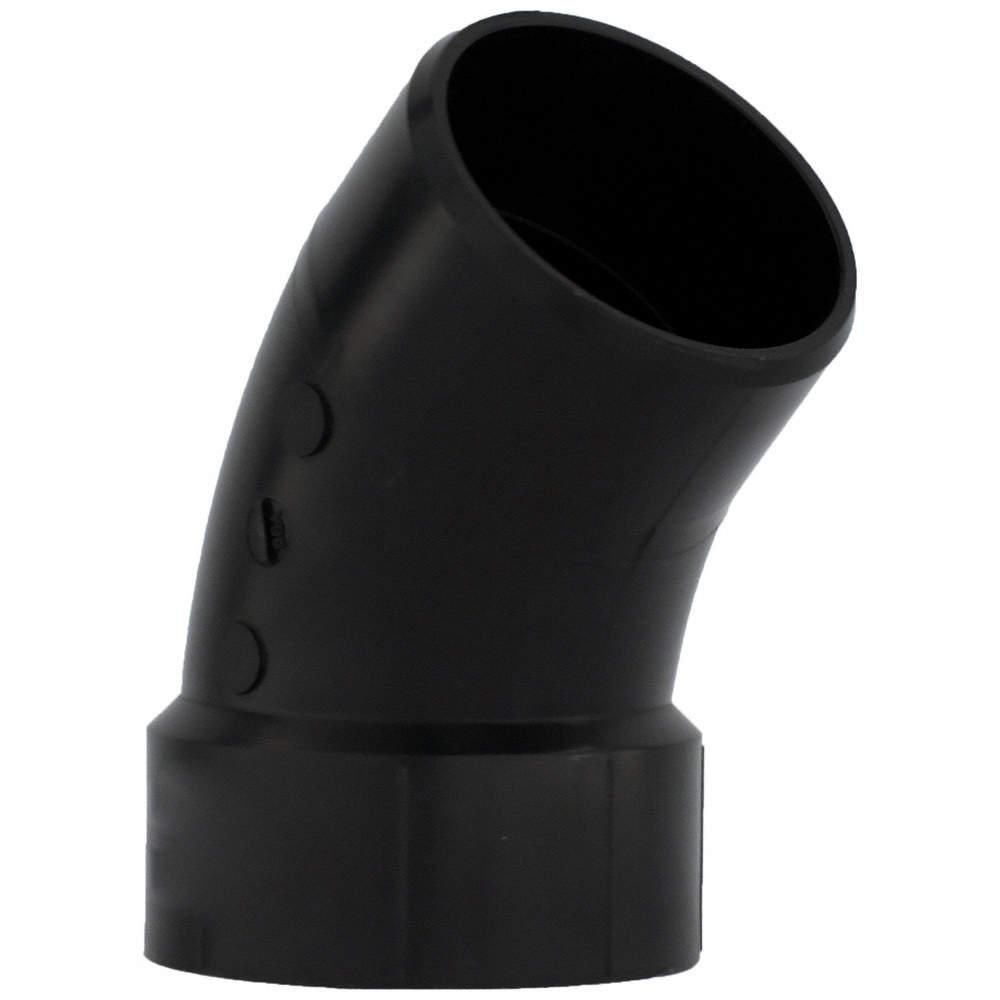

45 Degrees Street Elbow: 3 in x 3 in Pipe Size, Schedule 40, Male Spigot x Female Socket, Black

Hover over image to magnify
45 Street Elbow, 3 In,

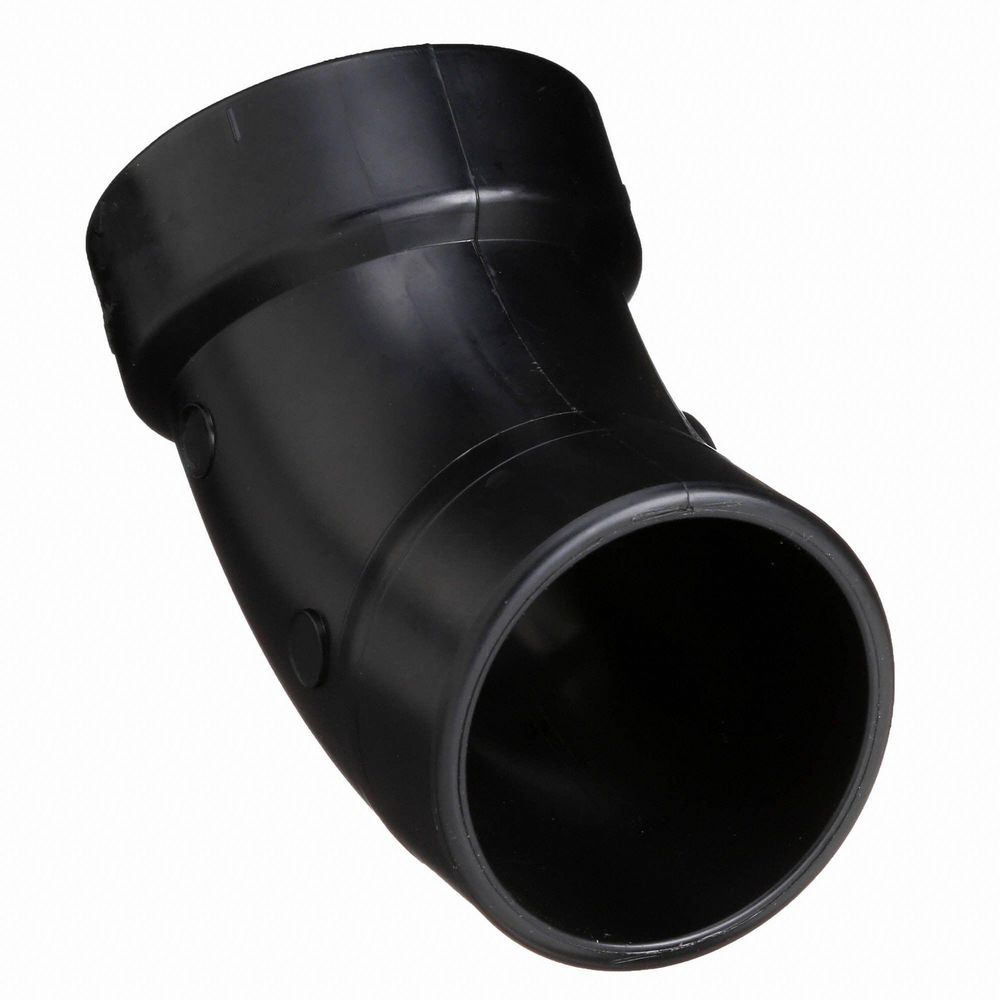

PI_Asset_2107097

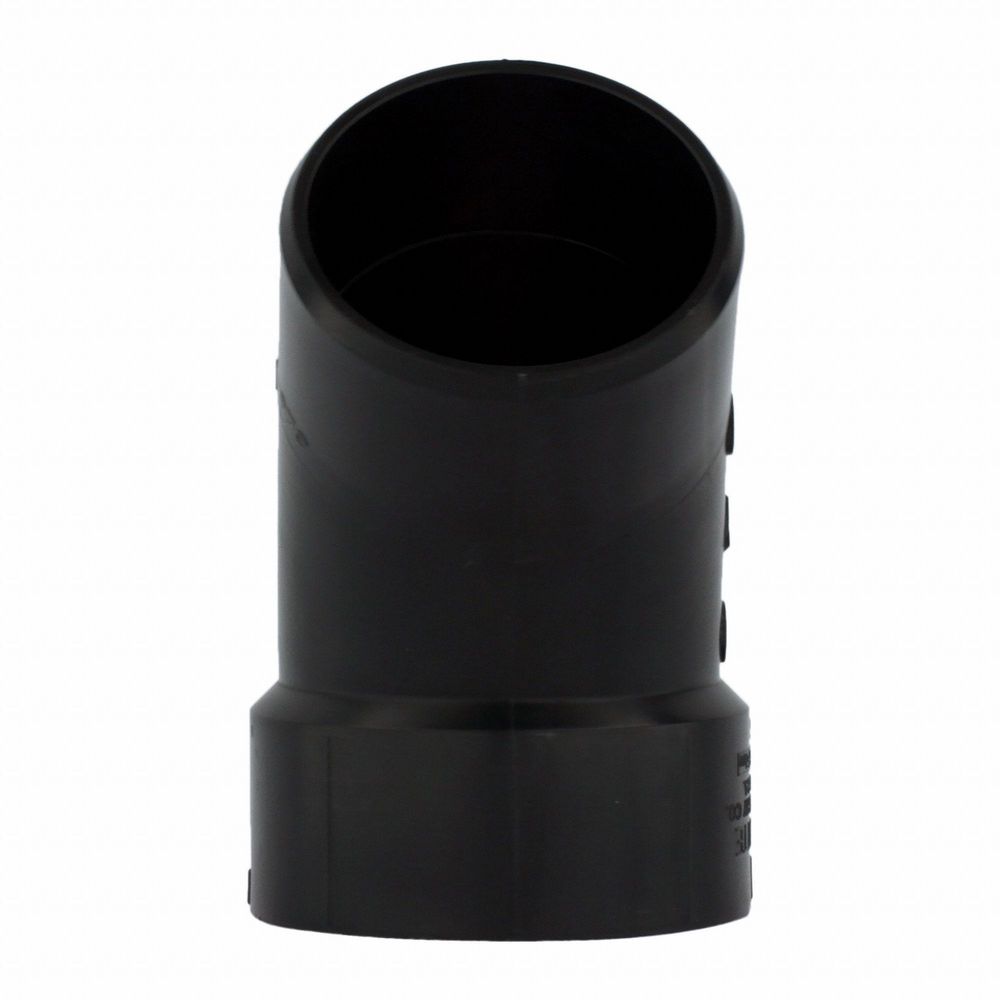

PI_Asset_2107098

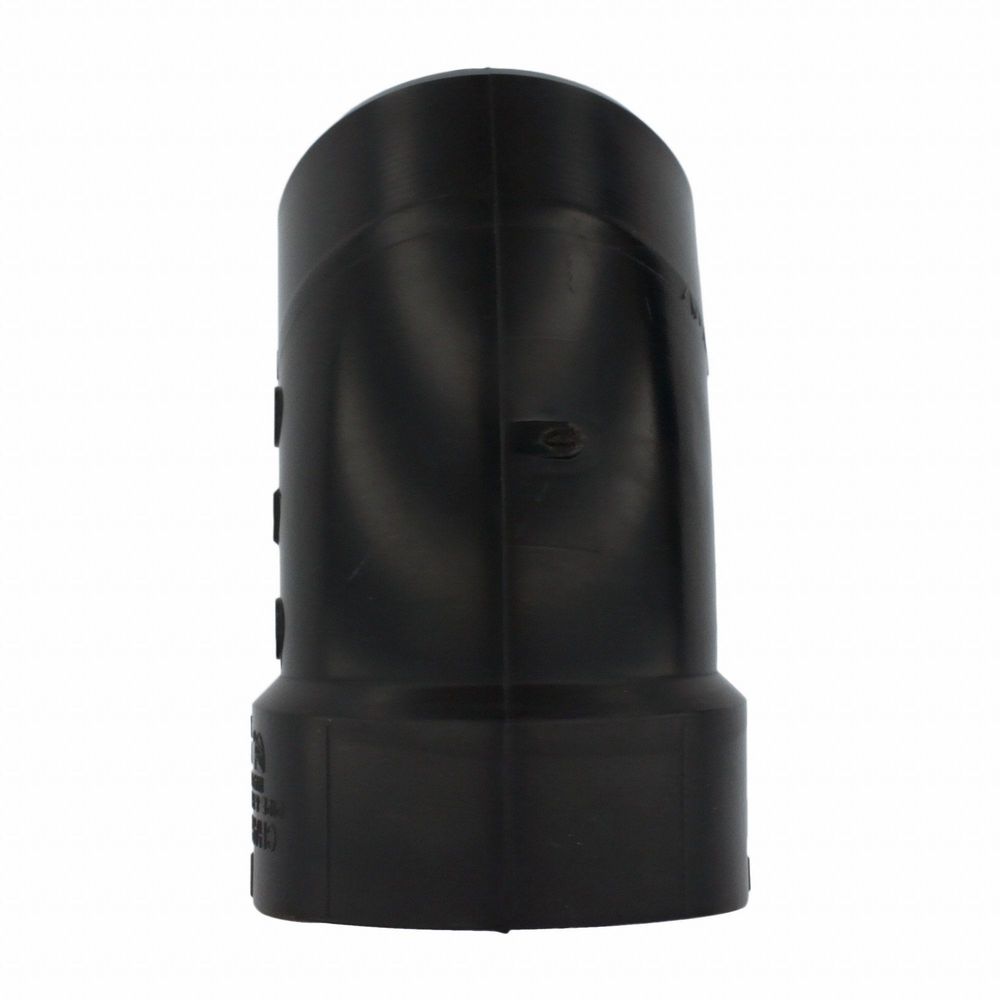

PI_Asset_2107099

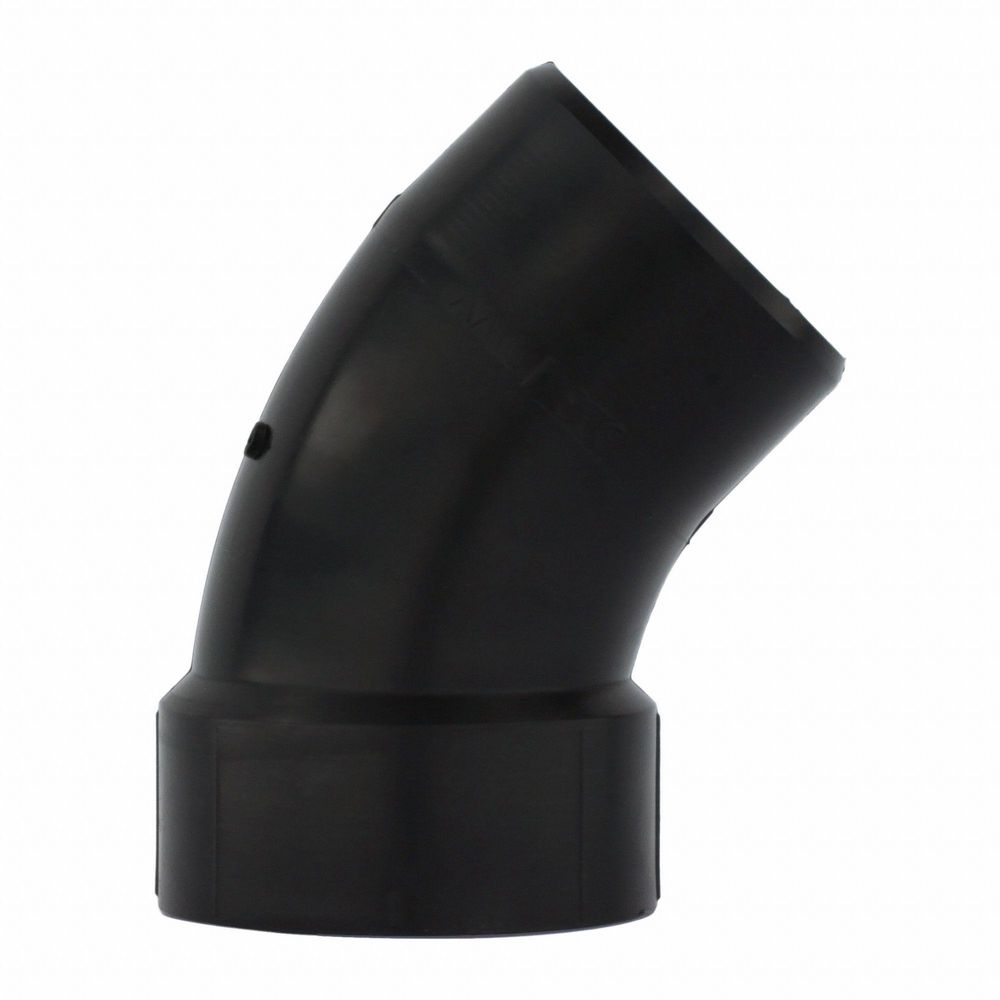

PI_Asset_2107100
PI_Asset_2107101
45 Street Elbow, 3 In,
PI_Asset_2107097
PI_Asset_2107098
PI_Asset_2107099
PI_Asset_2107100
PI_Asset_2107101

#939128-9 | Pkg Qty: 1

$9.36 pkg | $9.36 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Application
DWV
Fitting Pipe Size
3 in. x 3 in.
Brand
APPROVED SUPPLIER
Fitting Shape
Elbow
Color Family
Black
For Pipe Outside Diameter
3-1/2 in.
Connection Type
Socket, Spigot
For Pipe Schedule
40
Fitting Connection (A) Gender
Male
Includes Plug
No
Fitting Connection (A) Outside Diameter
3-9/16 in.
Includes Seal
No
Fitting Connection (A) Pipe Size
3 in.
Item
45 Degrees Street Elbow
Fitting Connection (A) Type
Spigot
Mfr. Part Number
1WJA7
Fitting Connection (B) Gender
Female
Package Quantity
1
Fitting Connection (B) Outside Diameter
3-9/16 in.
Pipe Fitting Material
ABS
Fitting Connection (B) Pipe Size
3 in.
Shipping Weight
.56 lb.
Fitting Connection (B) Type
Socket
Standards
ASTM D2661, ASTM D3311, ASTM D3965, NSF 14
Fitting Connection Type
Spigot x Hub
Temperature Range
-20 Degrees to 140 Degrees F
General
Fitting Side A Gender
Male
Fitting Side B Type
Socket
Fitting Side A Nominal Pipe Size
3 in
Gender
Female, Male
Fitting Side A Outside Diameter
3 9/16 in
Low Lead Compliance Level
Not Compliant
Fitting Side A Type
Spigot
Pipe Fitting Connection Type
Male Spigot x Female Socket
Fitting Side B Gender
Female
Pipe Fitting Gender
Male Female
Fitting Side B Nominal Pipe Size
3 in
Pipe Size - Pipe Fitting
3 in
Fitting Side B Outside Diameter
3 9/16 in
Temp. Range
-20 Degrees to 140 Degrees F

Product Description

Socket x spigot fittings connect with ABS (acrylonitrile butadiene styrene) pipe. These fittings include a socket (hub or slip) end that fits over a pipe and a spigot (also known as street) end that fits inside a socket. The spigot end is needed when a fitting connects to another fitting (not directly to a pipe). These fittings require glue or adhesive to seal the connection.

ABS (acrylonitrile butadiene styrene) is an opaque thermoplastic polymer with high tensile strength and low temperature properties. The smooth interior walls of ABS pipe resist physical impact, chemical corrosion, and scaling. ABS pipe connects with pipe fittings to transport potable water, slurries, and chemicals in light commercial applications.
