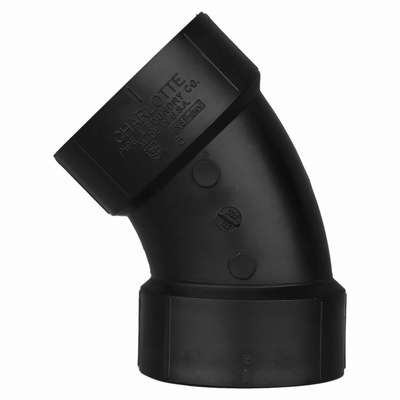

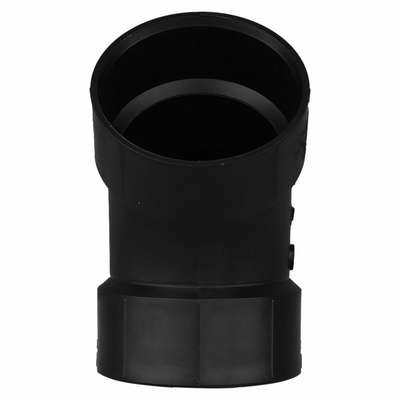

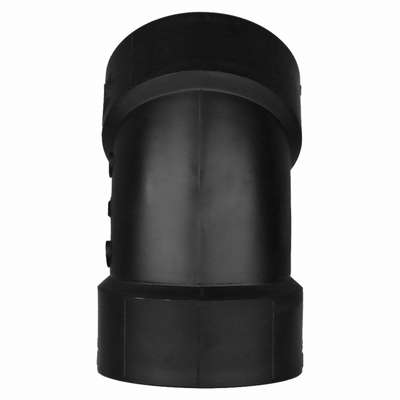

45° Elbow: 3 in x 3 in Fitting Pipe Size, Schedule 40, Female Socket x Female Socket, Black

Hover over image to magnify
45 Deg Elbow,3 In Hub
PI_Asset_1982913
PI_Asset_1987374
PI_Asset_1990404
PI_Asset_1992449
45 Deg Elbow,3 In Hub
PI_Asset_1982913
PI_Asset_1987374
PI_Asset_1990404
PI_Asset_1992449

#918261-7 | Pkg Qty: 1

$8.11 pkg | $8.11 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Angle
45 deg.
Fitting Pipe Size
3 in. x 3 in.
Application
DWV
Fitting Shape
Elbow
Body Material
ABS
For Pipe Outside Diameter
3-1/2 in.
Brand
APPROVED SUPPLIER
For Pipe Schedule
40
Color Family
Black
For Pipe Size
3 in.
Connection Type
Socket
Includes Plug
No
Fitting Connection (A) Gender
Female
Includes Seal
No
Fitting Connection (A) Outside Diameter
3-9/16 in.
Item
45 Degrees Elbow
Fitting Connection (A) Pipe Size
3 in.
Mfr. Part Number
1WJA3
Fitting Connection (A) Type
Socket
Package Quantity
1
Fitting Connection (B) Gender
Female
Pipe Fitting Material
ABS
Fitting Connection (B) Outside Diameter
3-9/16 in.
Shipping Weight
.6 lb.
Fitting Connection (B) Pipe Size
3 in.
Standards
ASTM D2661, ASTM D3311, ASTM D3965, NSF 14
Fitting Connection (B) Type
Socket
Temperature Range
-20 Degrees to 140 Degrees F
Fitting Connection Type
Hub x Hub
General
Fitting Side A Gender
Female
Fitting Side B Nominal Pipe Size
3 in
Fitting Side A Nominal Pipe Size
3 in
Fitting Side B Outside Diameter
3 9/16 in
Fitting Side A Outside Diameter
3 9/16 in
Fitting Side B Type
Socket
Fitting Side A Type
Socket
Low Lead Compliance Level
Not Compliant
Fitting Side B Gender
Female
Temp. Range
-20 Degrees to 140 Degrees F

Product Description

Socket x socket fittings, also called slip or hub fittings, include socket ends on all fitting connection ends. The socket ends fit over the end of an ABS (acrylonitrile butadiene styrene) pipe and require glue or adhesive to secure the connection.

Drain, waste, and vent (DWV) systems convey effluent streams, such as black water or gray water waste. ABS (acrylonitrile butadiene styrene) is an opaque thermoplastic polymer with high tensile strength and low temperature properties. ABS DWV fittings connect the same or different sizes of ABS pipe and use gravity to divert, divide, or return the flow of water and waste through the pipeline. DWV pipe and fittings are not for use in pressure applications. The smooth interior walls of ABS pipe and fittings resist physical impact, chemical corrosion, and scaling.
