DAYTON

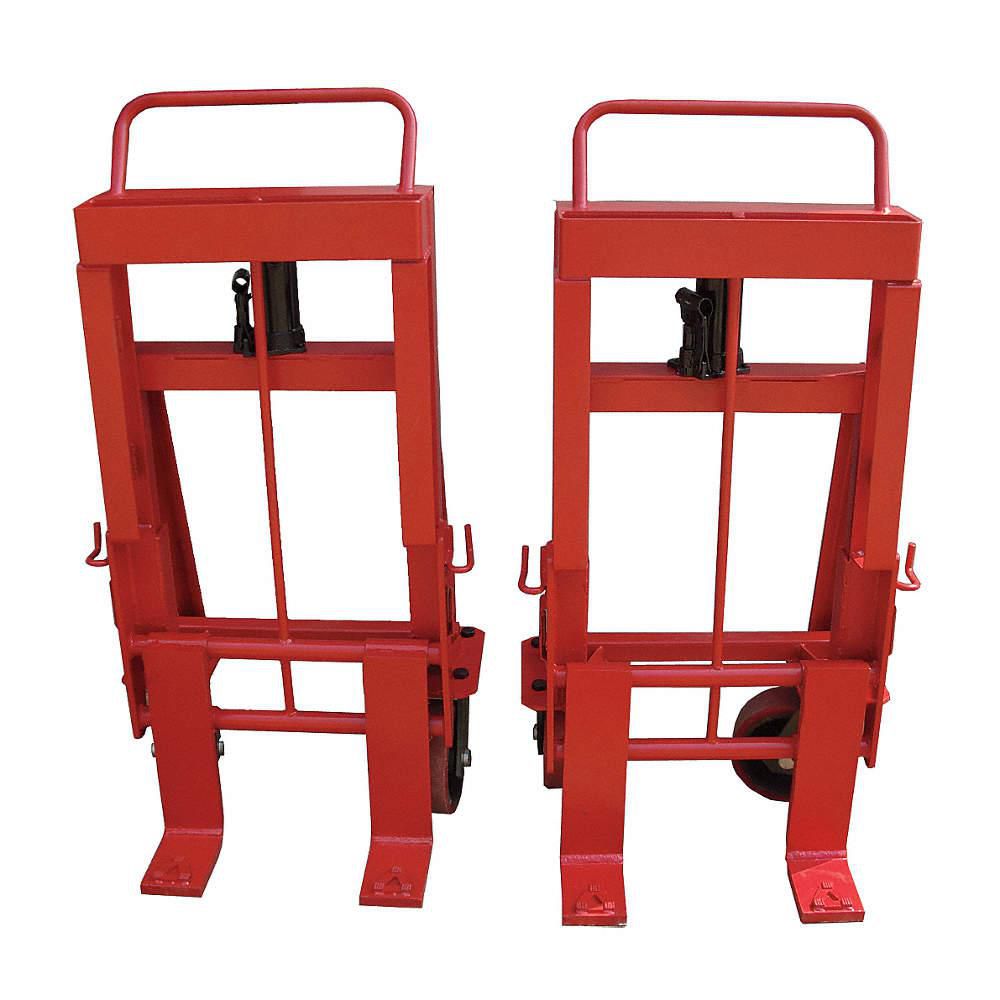

Dayton Hydraulic-Lift Machinery & Equipment Mover with Dual-Forks: 10,000 lb Load Capacity, 2 PK
Hover over image to magnify
#938528-9 | Pkg Qty: 2
$2,763.48 pkg | $1,381.74 ea
This item requires special shipping, additional charges may apply.
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Action
A
Lift Control
Hand Pump
Brand
DAYTON
Lift Mechanism
Hydraulic
Caster Brake Type
No Caster Brake
Maximum Lifting Height
8 in.
Caster Stem Type
Grip Neck
Mfr. Part Number
13V420
Caster Wheel Bearings
Ball Bearing
Number of Rollers
4
Caster Wheel Type
Solid
Overall Height
47-5/8 in.
Caster Wheel/Tread Material
Steel
Overall Length
24 in.
Color Family
Red
Overall Width
18-1/2 in.
Fork Length
6 in.
Package Quantity
2
Fork Thickness
3/4 in.
Roller Material
Steel
Fork Width
4 in.
Shipping Weight
330 lb.
Frame Finish
Powder Coated
Total Number of Wheels
4
Frame Material
Steel
Wheel Diameter
8 in.
Handle Height
47-1/2 in.
Wheel Type
Steel
Handle Type
Flow Back
Wheel Width
2-3/4 in.
Item
Hydraulic-Lift Machinery & Equipment Mover with Dual-Forks
General
Assembled
Yes
Lift Height
6"
Caster Frame Material
Steel
Load Capacity (Lb.)
10,000
Caster Mounting Height
7 1/2 in
Max. Load Width
19 in
Caster Mounting Type
Stem
Minimum Load Width
9 in
Caster Stem Diameter
1/2 in
Non-Marking Casters/Wheels
Yes
Caster Stem Length
1 1/8 in
Nose Plate/Fork Material
Steel
Caster Wheel Dia.
8 in
Nose Plate/Fork Style
Dual Fork
Caster Wheel Width
2 in
Overall LxWxH
24 in x 18 1/2 in x 47 5/8 in
Caster/Wheel Configuration
(4) Swivel
Roller Dia.
8 in
Frame Gauge
10 ga
Steer Type
No Steer
Includes Straps
Without Straps
Wheel Dia.
8 in
Product Description
These machinery and equipment movers have two forks and can raise and move flat-bottomed equipment. They have hydraulic lifting systems and require less physical effort to operate than machinery and equipment movers with mechanical lifting systems. They have attachments points for load-securing straps but do not come with the straps.
Item Barcode
Machinery Mover,Load Cap 10,
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 13V420 | |
 | UNSPSC CODES | 24101501 | |
 | VMRS (ATA) CODES | 053-006-009 |
