DAYTON

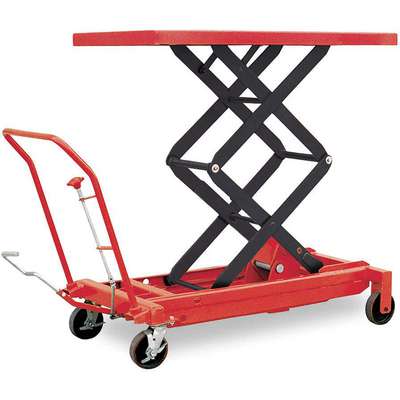

Mobile Manual Lift, Manual Push Scissor Lift Table, 1500 lb. Load Capacity, Lifting Height Max. 59

Hover over image to magnify
Scissor Lift Cart,1500 Lb.,
Scissor Lift Cart,1500 Lb.,

#917900-5 | Pkg Qty: 1

$1,514.51 pkg | $1,514.51 ea
This item requires special shipping, additional charges may apply.

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Brand
DAYTON
Lifting Height Minimum
18-3/8 in.
Caster Diameter
6 in.
Load Capacity
1500 lb.
Caster Material
Polyurethane
Lowered Height
18-3/8 in.
Caster Type
(2) Rigid, (2) Swivel with Brake
Maximum Lifting Height
59 in.
Caster Wheel Diameter
6 in.
Mfr. Part Number
4ZD01
Caster Wheel Type
(2) Rigid, (2) Swivel with Brake
Minimum Lifting Height
18-3/8 in.
Frame Material
Steel
Mobile/Stationary
Mobile
Item
Scissor Lift Table
Package Quantity
1
Lift Control
Foot Pump
Platform Length
48 in.
Lift Mechanism
Hydraulic
Platform Style
Fixed
Lift Mobility
Manual Lift, Manual Push
Platform Width
24 in.
Lift Table Item
Scissor Lift Table
Powered By
Hydraulic
Lift Table Platform Style
Fixed
Raised Height
59 in.
Lifting Height Maximum
59 in.
Shipping Weight
439.9 lb.
General
Brake Type
Side Pedal Brake
Overall LxWxH
50 3/4 in x 24 in x 40 in
Caster Dia.
6 in
Platform LxW
48 in x 24 in
Caster Wheel Dia.
6 in
Platform Type
Solid
Elevation per Stroke
1-1/4"
Scissor Type
Dual
Includes
Hydraulic Foot Pump
Wheel Configuration
(2) Swivel with Brake, (2) Rigid
Lifting Height Max.
59 in
Wheel/Tread Material
Polyurethane
Lifting Height Min.
18 3/8 in

Product Description

These manual mobile lift tables have a scissor-style support frame that allows their platform to be raised or lowered to a wider range of heights than post-lift tables. The platform sits close to the ground when fully lowered, so heavy items don't need to be lifted far when moving them onto or off of it. The tables' hydraulic lifting mechanism is controlled with a foot pump.

Expertly Selected Product Pairings

Cylinder
$248.46 pkg | $248.46 ea
Item: 929615-3 | Pkg Qty: 1

Compliance & Restrictions

California Proposition 65 Icon
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Documents

Dayton Hydraulic Elevating Carts OIPM
Dayton Hydraulic Elevating Cart 3KR46J 6W803J 4ZC18J 4ZD01J Replacement Parts List
