Hubbell Wiring Device-Kellems 20 Amp, 3-Phase Zytel 801 Nylon Watertight Pin and Sleeve Connector, Red

Hover over image to magnify

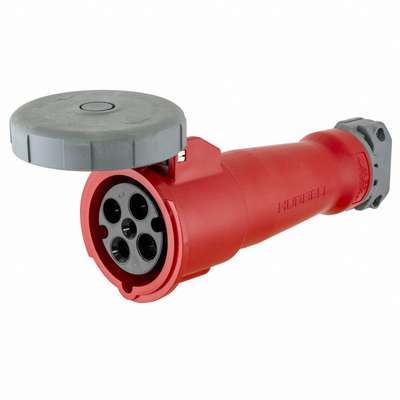

Iec Pin And Sleeve Connector,
PI_Asset_1982256
Iec Pin And Sleeve Connector,
PI_Asset_1982256

#938328-1 | Pkg Qty: 1

$334.21 pkg | $334.21 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Amperage
20 A
Mfr. Part Number
HBL420C7W
Amps
20 A
Minimum Operating Temperature
-40 °C
Body Material
Zytel 801 Nylon
Minimum Wire Size
14 AWG
Brand
HUBBELL WIRING DEVICE-KELLEMS
NEMA Rating
4X
Cap Type
Spring-Loaded Cap
Number of Poles
3
Color Family
Red
Number of Wires
4
Compatible With
HBL Heavy Duty
Outside Diameter
3.43 in.
Connection Orientation
Straight
Overall Length
7.57 in.
Current Rating
20 A
Package Quantity
1
Features
Color Coded Housings for Easy Identification, Corrosion-Resistant Self-Closing Gasketed Cover, Insulated Non-Metallic Housing
Phase
Three
For Maximum Cable Diameter
0.83 in.
Pin & Sleeve Standards
IEC 60309
For Minimum Cable Diameter
0.33 in.
Power Indicating Light
No
Grounding
Grounded
Reverse Service
No
Grounding Style
IEC
Shipping Weight
1.3 lb.
Horsepower
10 hp
Shrouded
Yes
Housing Color
Red
Standards
CSA Certified LR280C, UL Classified to IEC 60309-1 IEC 60309-2, UL E146033
Housing Material
PBT
Switch Rated
No
Housing Material Type
Non-Metallic
Type
Female Connector Body
IP Rating
IP68, IP69K
UL 94 Flammability Rating
V-0
Item
Watertight Pin and Sleeve Connector
Voltage
480VAC
Material of Construction
Nonmetallic, Watertight and Abuse Resistant
Voltage Rating
480V AC
Maximum Operating Temperature
75 °C
Wire Connection Type
Screw Terminals
Maximum Wire Size
10 AWG
General
Amps - Plugs and Receptacles
20
Phase - Electrical
3
Features
Abuse Resistant
Voltage - Plugs and Receptacles
480V AC
HP
5 hp

Product Description

IEC Nonmetallic Watertight Pin and Sleeve Devices Designed and manufactured to meet international standards IEC 60309-1 and 60309-2. Feature a nonconductive nylon housing and OSHA-compliant lockout hole in the plug shroud to provide additional safety. The all-nonmetallic housing withstands heavy-duty industrial environments. Devices are color-coded for each specific voltage. Pin configurations are singly rated to prevent accidental mismating.
