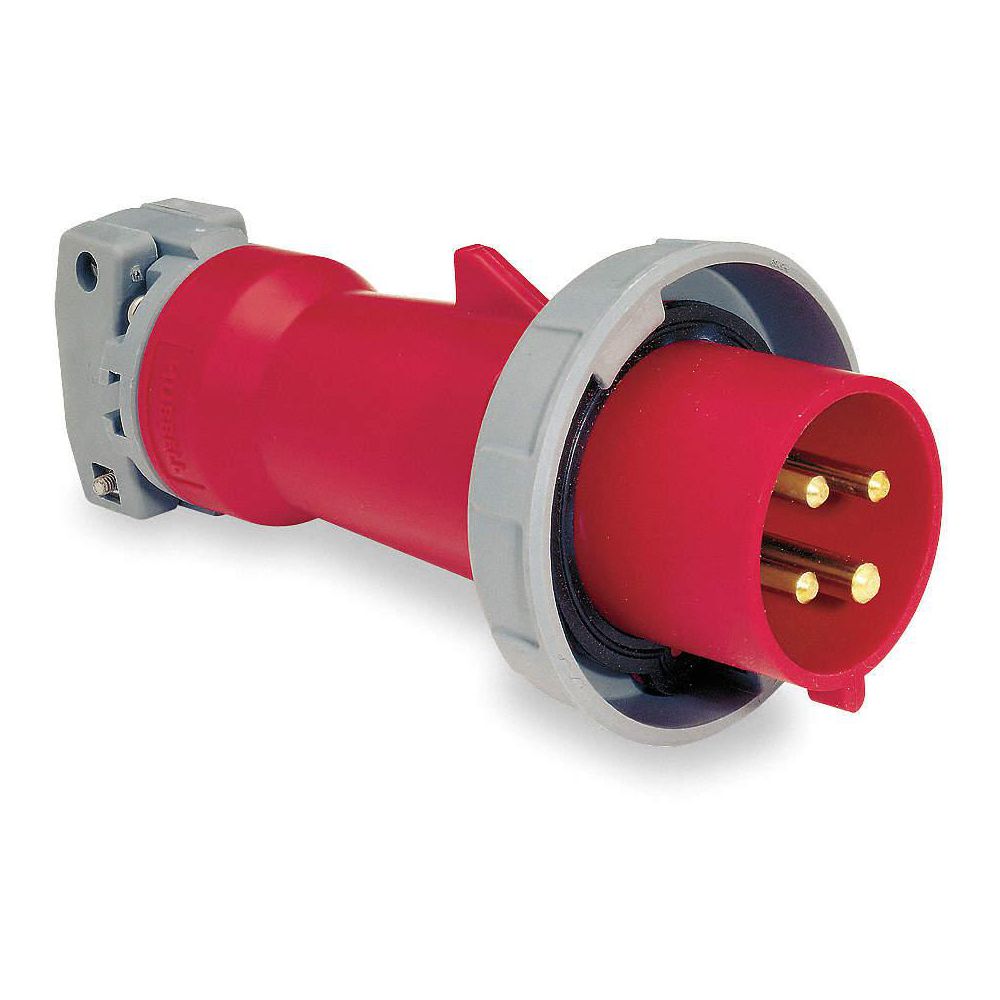

Hubbell Wiring Device-Kellems 20 Amp, 3-Phase Zytel 801 Nylon Watertight Pin and Sleeve Plug, Red

Name: Hubbell Wiring Device-Kellems 20 Amp, 3-Phase Zytel 801 Nylon Watertight Pin and Sleeve Plug, Red
Brand: HUBBELL WIRING DEVICE-KELLEMS
SKU: 9231706
Price: 278.99 USD
Availability: InStock

Hover over image to magnify

Double tap image to magnify

#923170-6Pkg Qty: 1

$278.99 pkg | $278.99 ea

In Stock

Shipping to 43085

Expected to arrive Fri. Mar 28.

Technical Specifications

Key Specifications

Amperage

20 A

Maximum Wire Size

10 AWG

Amps

20 A

Mfr. Part Number

HBL420P7W

Body Material

Zytel 801 Nylon

Minimum Operating Temperature

-40 °C

Brand

HUBBELL WIRING DEVICE-KELLEMS

Minimum Wire Size

14 AWG

Cap Type

No Cap or Cover

NEMA Rating

Color Family

Red

Number of Poles

Connection Orientation

Straight

Number of Wires

Current Rating

20 A

Overall Length

7.01 in.

Features

Gasketed Sealing Ring Provides Watertight Seal

Package Quantity

For Maximum Cable Diameter

0.83 in.

Phase

Three

For Minimum Cable Diameter

0.33 in.

Pin & Sleeve Standards

CSA Certifications, IEC 60309, UL Listed

Grounding

Grounded

Shipping Weight

.95 lb.

Grounding Style

IEC

Shrouded

Yes

Horsepower

10 hp

Standards

CSA Certified C22.2 No. 182.1, UL E146032, UL IEC 60309-1

Housing Color

Red

Switch Rated

Housing Material

Polybutylene Terephthalate

Type

Male Plug

IP Rating

IP67

UL 94 Flammability Rating

Item

Watertight Pin and Sleeve Plug

Voltage

480VAC

Material of Construction

Nonmetallic, Watertight and Abuse Resistant

Voltage Rating

480V AC

Maximum Operating Temperature

75 °C

Wire Connection Type

Screw Terminals

General

Amps - Plugs and Receptacles

Phase - Electrical

Features

Watertight and Abuse Resistant

Voltage - Plugs and Receptacles

480V AC

5 hp

Product Description

IEC Nonmetallic Watertight Pin and Sleeve Devices

Designed and manufactured to meet international standards IEC 60309-1 and 60309-2. Feature a nonconductive nylon housing and OSHA-compliant lockout hole in the plug shroud to provide additional safety. The all-nonmetallic housing withstands heavy-duty industrial environments. Devices are color-coded for each specific voltage. Pin configurations are singly rated to prevent accidental mismating.
