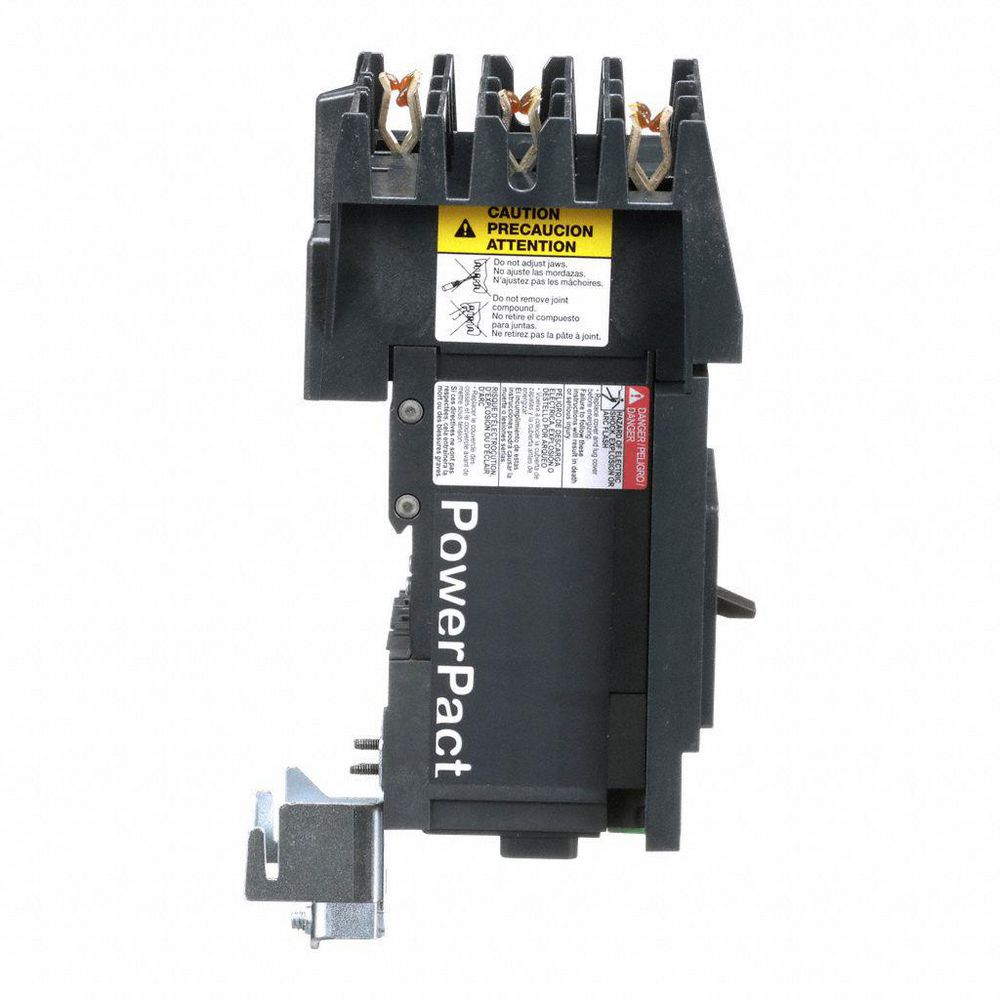

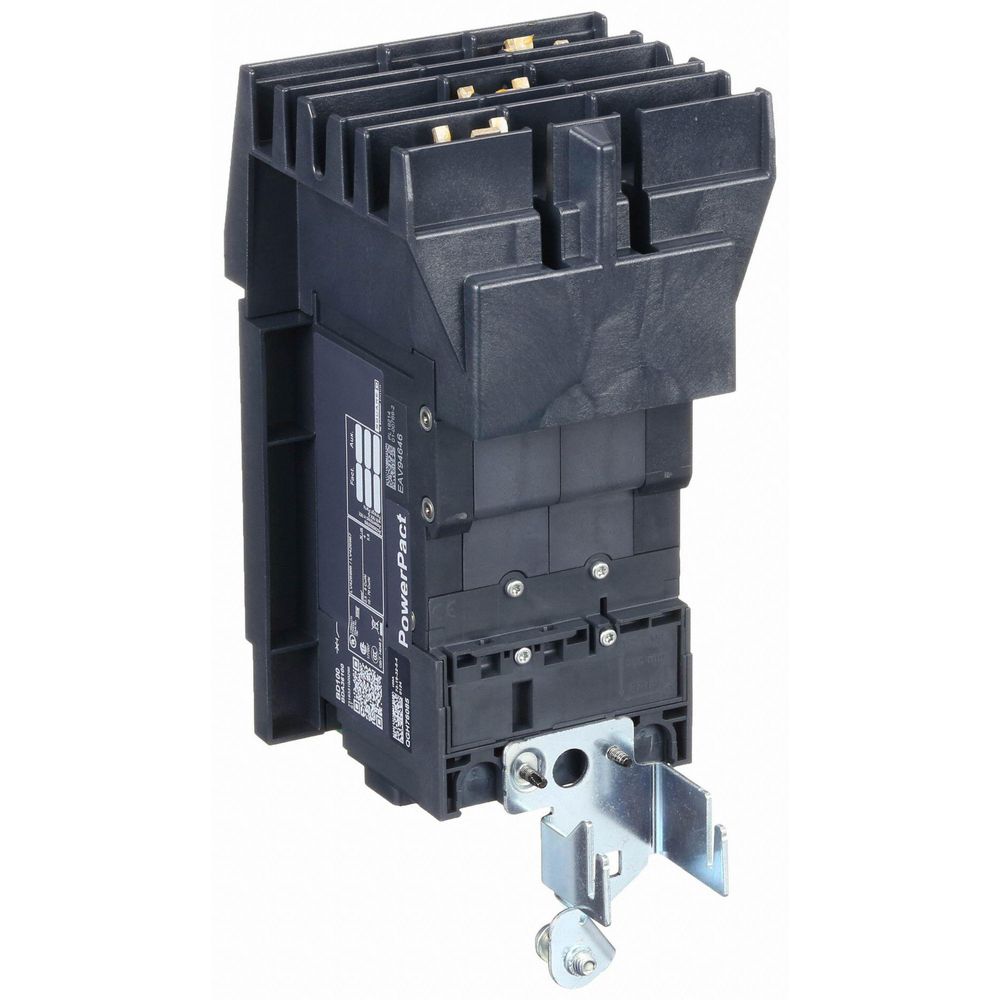

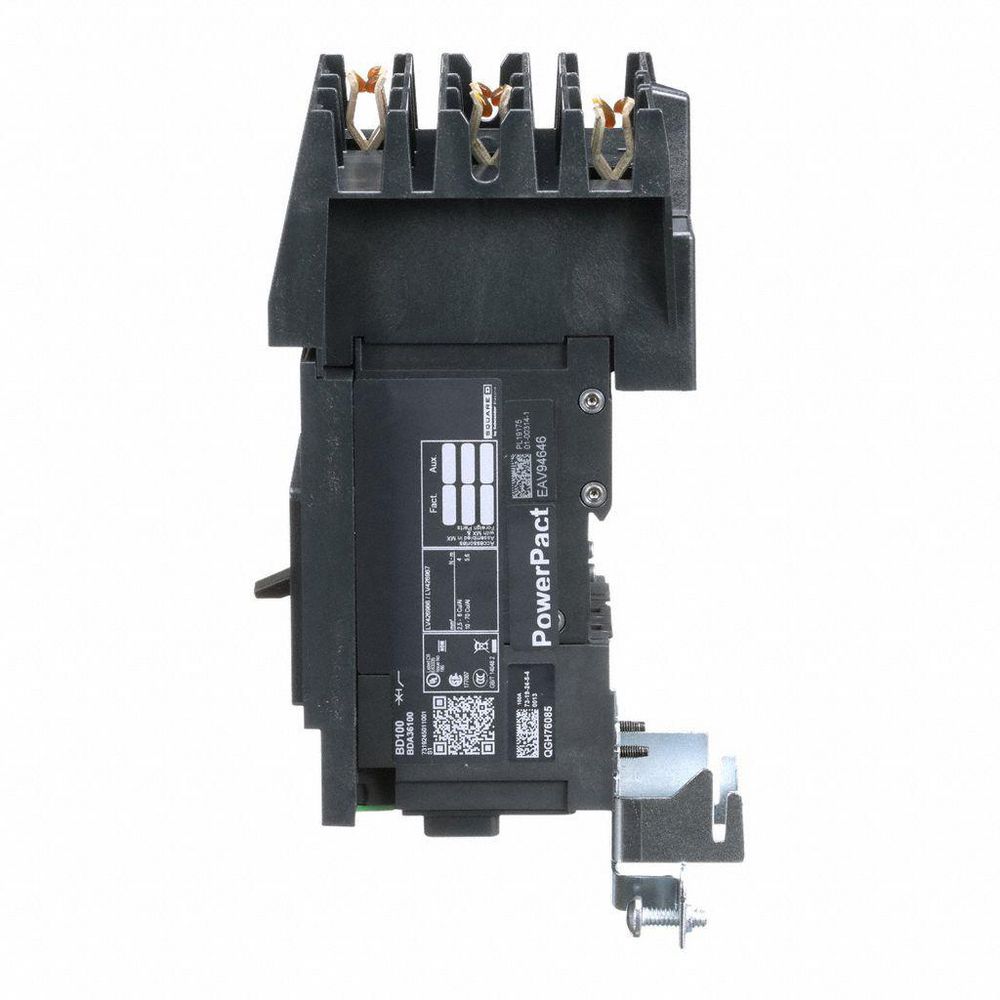

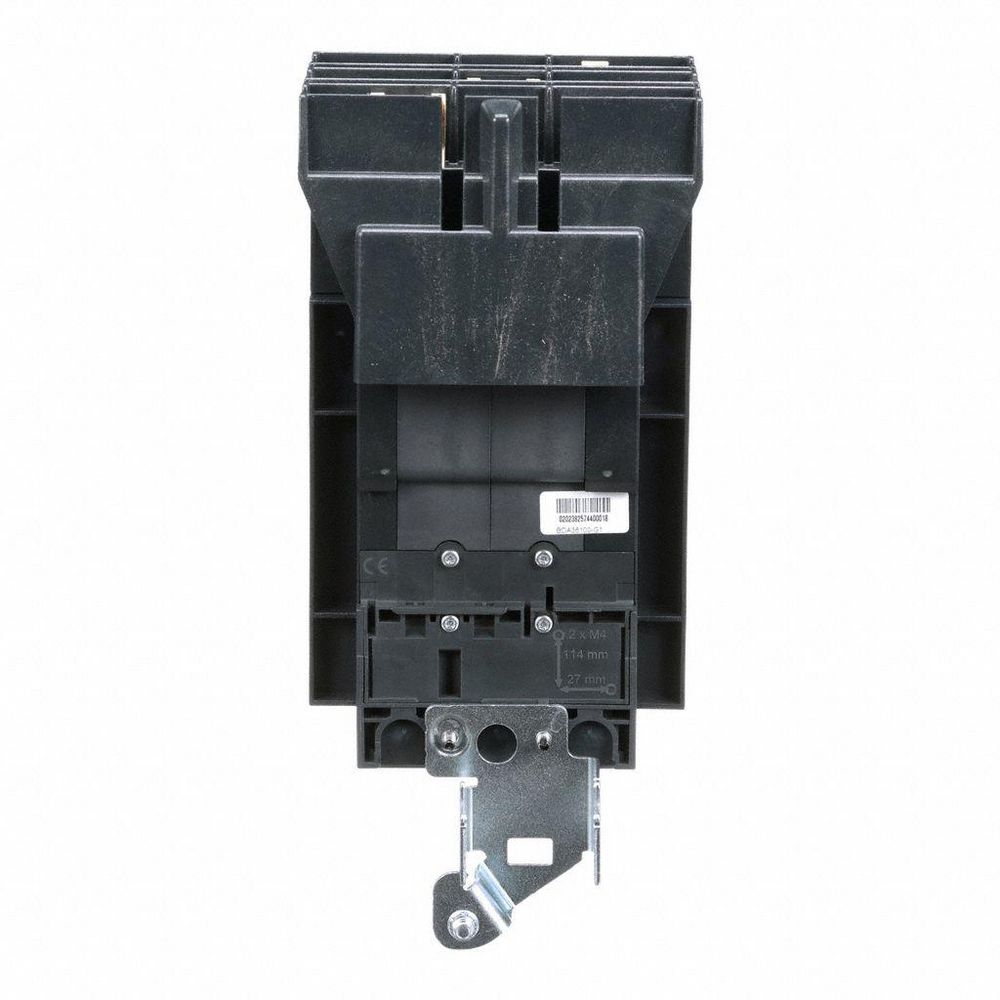

Square D Molded Case Circuit Breaker, 100 A Amps, Number of Poles 3, Series BDA

Name: Square D Molded Case Circuit Breaker, 100 A Amps, Number of Poles 3, Series BDA
Brand: SQUARE D
SKU: 9377651
Price: 1164.99 USD
Availability: InStock

Hover over image to magnify

Double tap image to magnify

#937765-1Pkg Qty: 1

$1,164.99 pkg | $1,164.99 ea

In Stock

Shipping to 43085

Expected to arrive Tue. Apr 01.

Technical Specifications

Key Specifications

AC Voltage Rating

525VAC

Maximum Wire Size

2 AWG

Amperage

100 A

Mfr. Part Number

BDA36100

Amps

100 A

Minimum Wire Size

2 AWG

Brand

SQUARE D

Mounting

I-Line

Circuit Breaker Type

Standard

Number of Poles

DC Voltage Rating

Not Rated

Package Quantity

Depth

3-1/2 in.

Phase

Three

For Use With

Electrical Distribution Equipment, Industrial Control Panels

Phase Connection

ABC

Frame Size

125A/BD

Series

BDA

Height

5.39 in.

Shipping Weight

3.8 lb.

Instantaneous Trip

Fixed

Terminal Connection

Al Mechanical Lug OFF End, I-Line ON End

Item

Molded Case Circuit Breaker

Trip Type

Thermal Magnetic

Maximum Air Rating

25kA at 277/408VAC

Width

3.19 in.

General

Circuit Breaker Actuator

Toggle

Min. Operating Temp.

-13°F

Max. Operating Temp.

158°F

Standards

CSA C22.2 No 5, EN/IEC 60947-2, EN/IEC 60947-5-1, GB 14048.2, NEMA AB1, NMX J-266, UL 489

Product Description

B-frame Square D molded case circuit breakers are rated up to 125A and interrupt excessive current flows to protect devices from electrical damage. They're used in industrial control panels, commercial OEM, electrical distribution equipment, and other industrial and commercial applications. Their current-carrying parts, mechanisms, and trip devices are contained in a molded case.
