SQUARE D

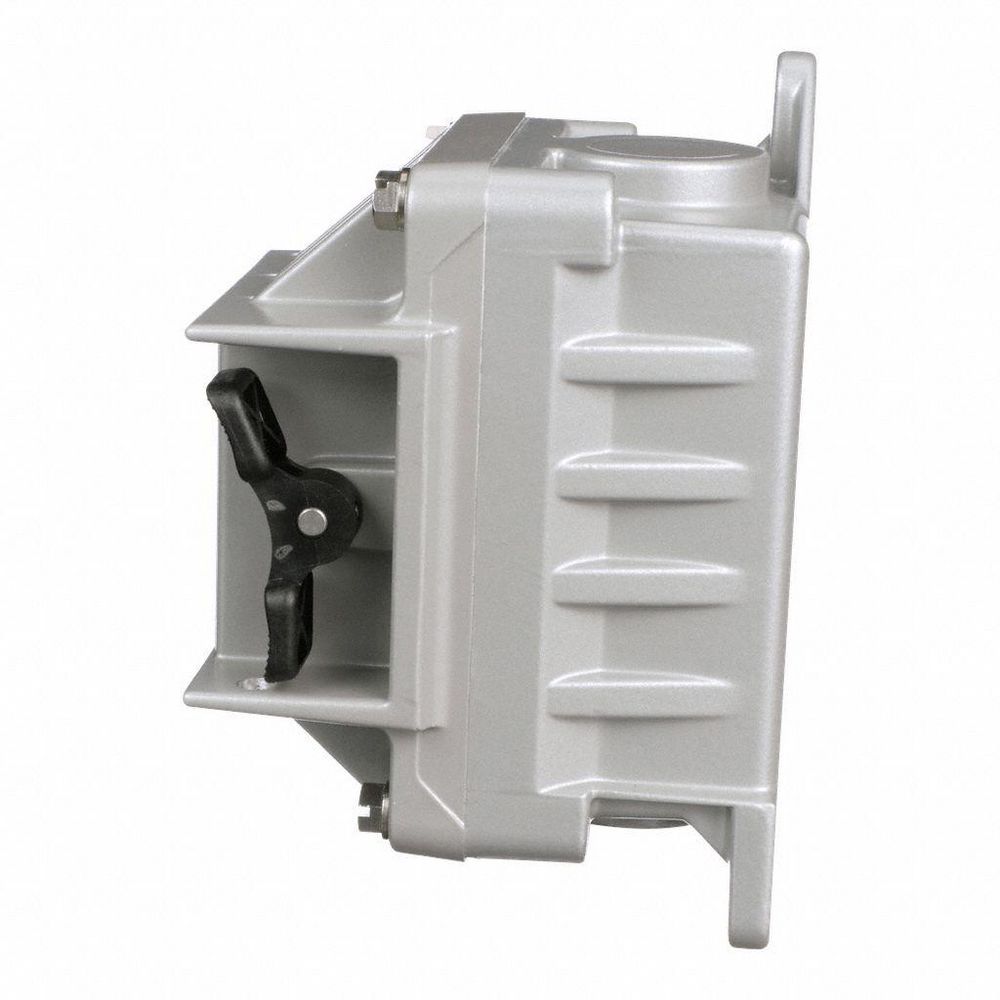

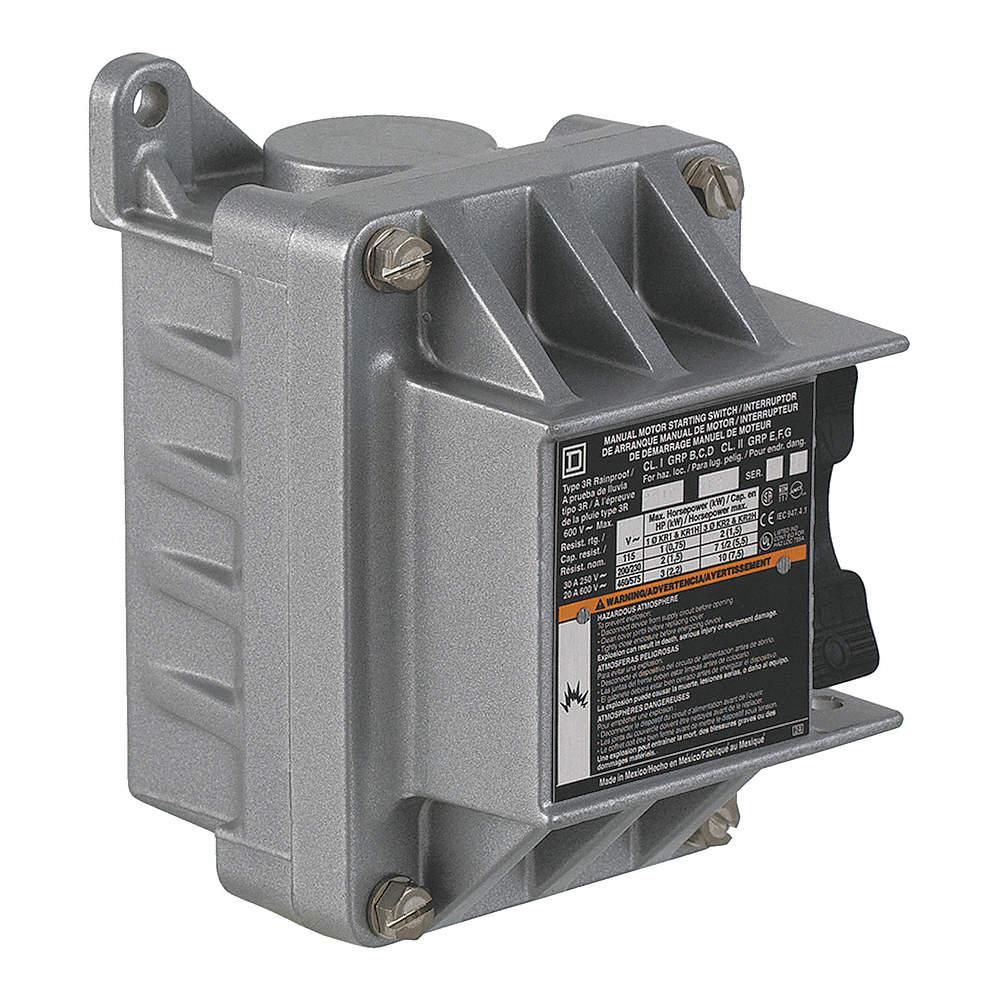

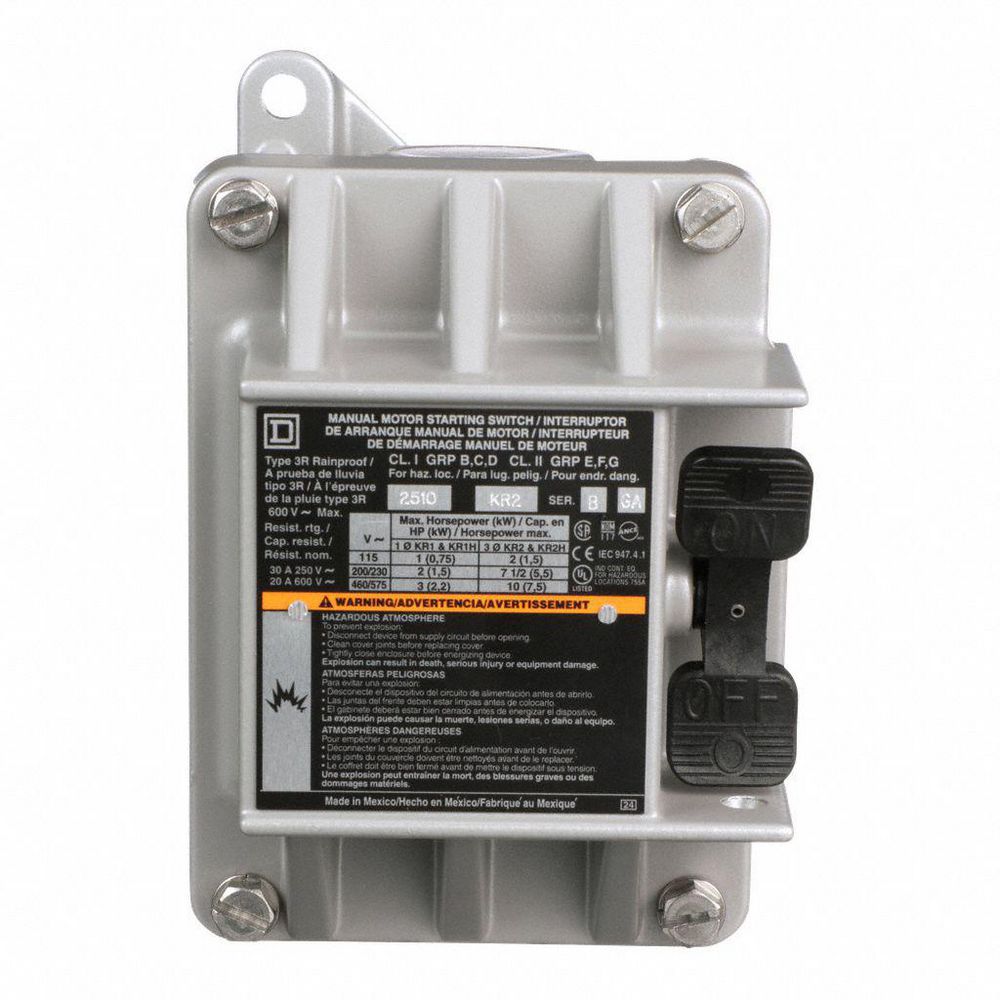

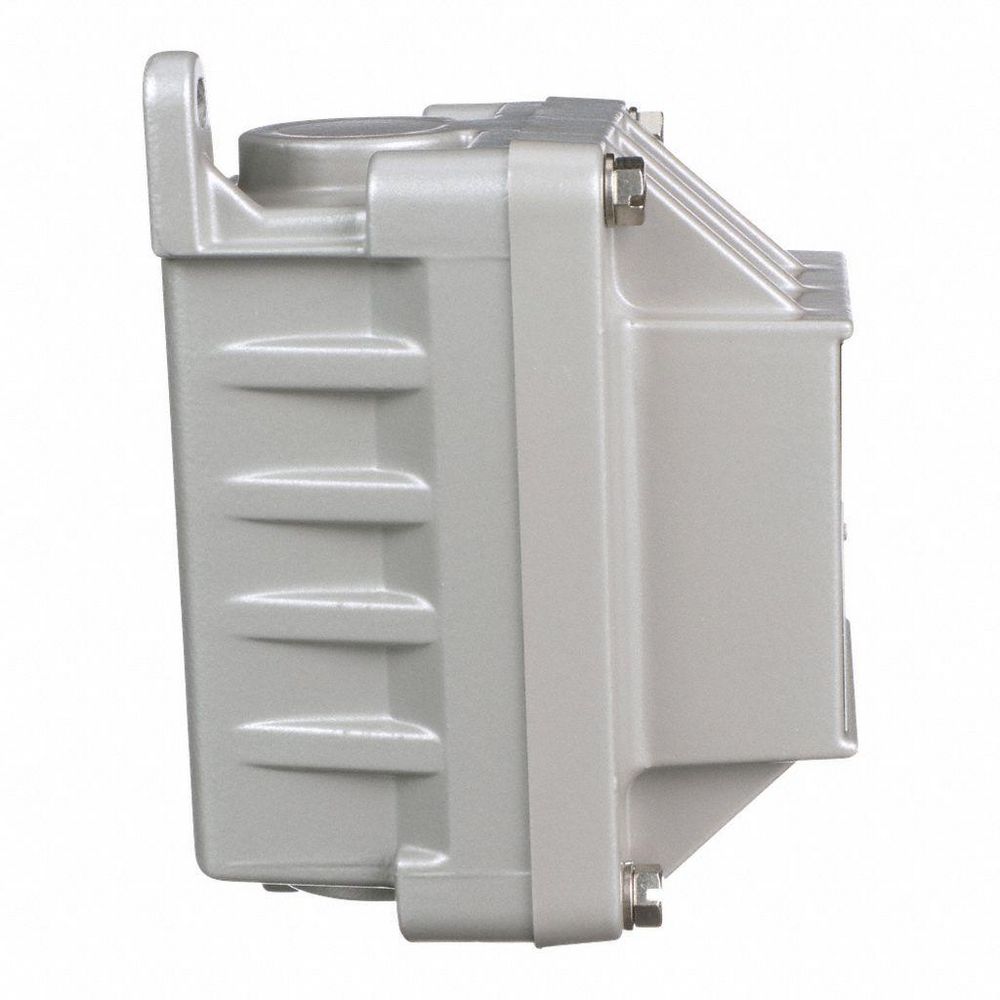

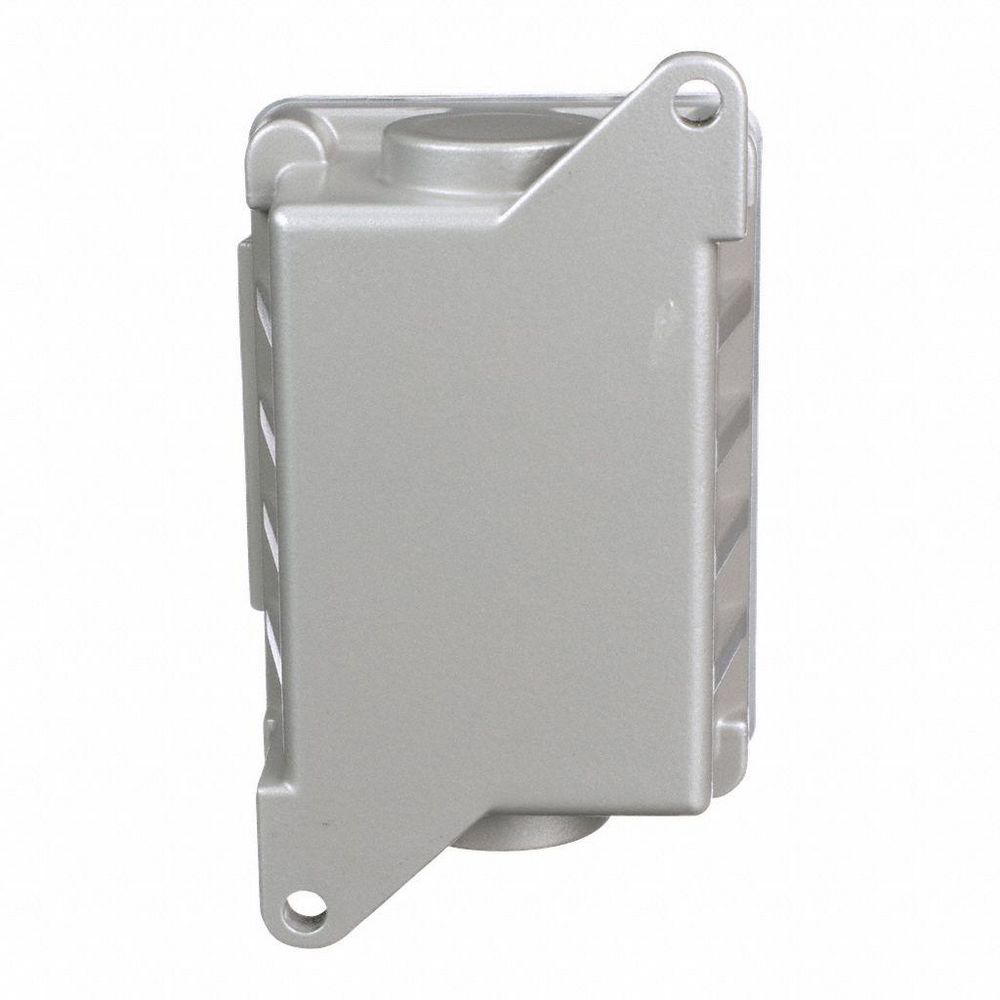

Square D Manual Motor Switch, Toggle, 3R, 7, 9 Enclosure NEMA Rating
Hover over image to magnify
#932389-3 | Pkg Qty: 1
$508.12 pkg | $508.12 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Amps AC
30 A
Height
6.36 in.
Brand
SQUARE D
Item
Manual Motor Switch
Depth
4-1/4 in.
Mfr. Part Number
2510KR2
Description/Special Features
Hazardous Location
Number of Poles
3
Enclosure NEMA Rating
3R, 7, 9
Package Quantity
1
Enclosure Type
Enclosed
Phase Loss Sensitivity
No
HP @ 1 Phase - 120 V
2 hp
Shipping Weight
3.6 lb.
HP @ 1 Phase - 230 V
7-1/2 hp
Starter Type
NE mA Style
HP @ 3 Phase - 240 V
7-1/2 hp
Width
3.95 in.
HP @ 3 Phase - 480 V
10 hp
General
HP @ 1 Phase - 120V
2 hp
HP @ 3 Phase - 460V
10
HP @ 1 Phase - 230V
7 1/2 hp
HP @ 3 Phase - 480V
10 hp
HP @ 3 Phase - 230V
7-1/2
HP @ 3 Phase - 575V
10 hp
HP @ 3 Phase - 240V
7 1/2 hp
Operator
Toggle
HP @ 3 Phase - 460-575V
10 hp
Standards
CE, CSA, UL
Product Description
Nonreversing Square D 3-Pole NEMA Hazardous Location Manual Motor Switch provides On/Off control of 1- or 3-phase AC motors where overload protection is not required or is provided separately. Use in small machine tools, pumps, fans, conveyors, and electrical machinery, and also for nonmotor loads such as resistance heaters.
- Screw clamp terminals
Item Barcode
Manual Motor Switch,Nema,
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 2BV97 | Manual Motor Switch,NEMA, |
 | UNSPSC CODES | 39121521 | |
 | VMRS (ATA) CODES | 053-006-009 | Manual Motor Switch,NEMA, |
