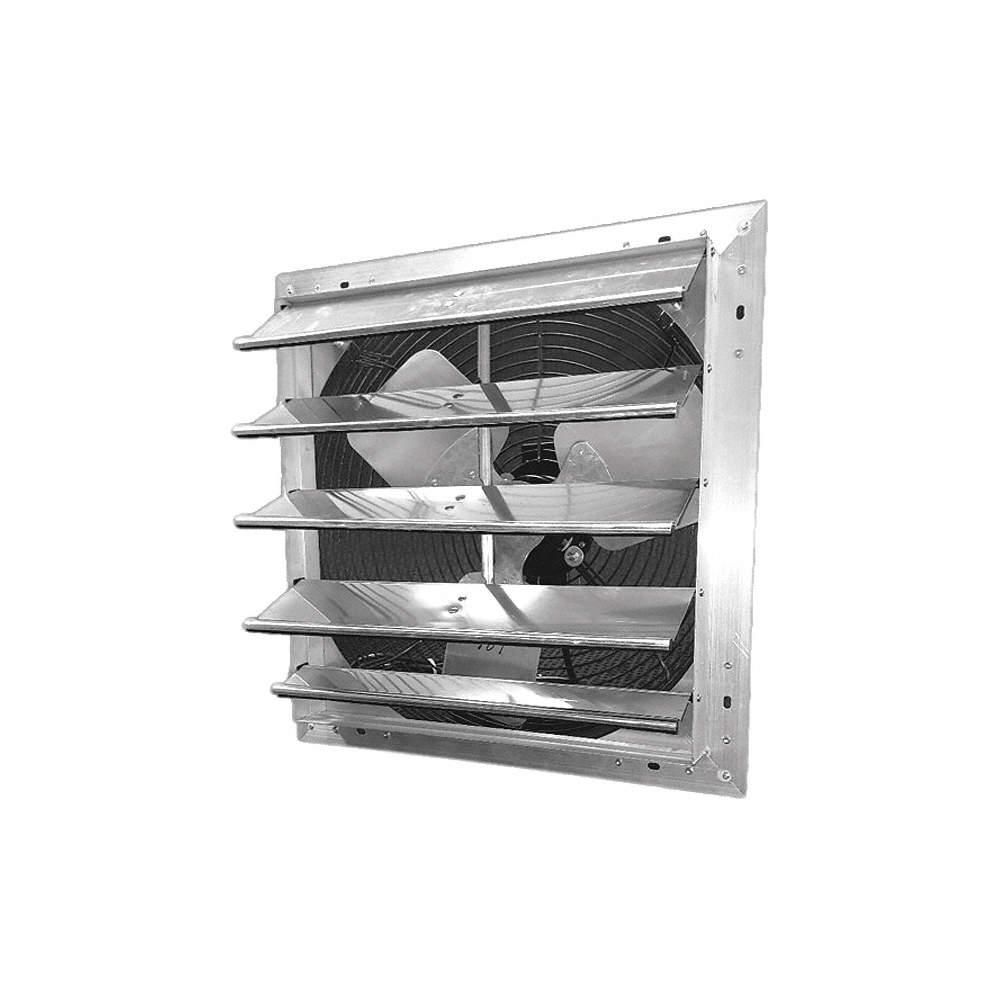

Dayton 1/4 Hp 20 in-Dia. 115 VAC V Shutter Mount Exhaust Fan, 21" Square Opening Required

Name: Dayton 1/4 Hp 20 in-Dia. 115 VAC V Shutter Mount Exhaust Fan, 21" Square Opening Required
Brand: DAYTON
SKU: 9366102
Price: 315.38 USD
Availability: InStock

Hover over image to magnify

Double tap image to magnify

#936610-2Pkg Qty: 1

$315.38 pkg | $315.38 ea

In Stock

Shipping to 43085

Expected to arrive Fri. Apr 04.

Technical Specifications

Key Specifications

Blade Material

Aluminum

Motor Enclosure

Totally Enclosed Air-Over

Brand

DAYTON

Motor Type

PSC

Frame Material

Steel

Number of Blades

Full Load Amps

2-3/4

Package Quantity

Phase

Item

Shutter Mount Exhaust Fan

Shipping Weight

25 lb.

Mfr. Part Number

484X43

General

Assembled

Fully Assembled

Maximum Coverage Area

900 sq ft

Exhaust Airflow @ 0.000 in SP

3,151 cfm

Maximum Exhaust Airflow @ 0.000 in SP

2001 to 4000 cfm

Exhaust Airflow @ 0.100 in SP

2,480 cfm

Maximum Noise Level

11.3 sones

Exhaust Airflow @ 0.125 in SP

2,335 cfm

Maximum Noise Level @ 0.000 in SP @ 5 ft

Greater than 9.0 sones

Exhaust Airflow @ 0.250 in SP

1,099 cfm

Motor Enclosure Design

Totally Enclosed Air Over (TEAO)

Fan Style

Shutter-Mounted

Motor Horsepower

1/4 hp

Fan Voltage

115V AC

Motor Speed

1,075 RPM

For Cut-Out Width

21 in

Nameplate Voltage

115V AC

For Maximum Wall Thickness

6 in

Noise Level @ 0.000 in SP @ 5 ft

11.3 sones

Guard Finish

Powder Coated

Noise Level @ 0.100 in SP @ 5 ft

11.18 sones

Guard Type

Intake

Nominal Voltage

115V AC

Includes

Intake Guard

Speed Controllable

Yes

Includes Motor

Yes

Square Opening Required

20-1/2 to 30 in

Maximum Airflow

3,151 cfm

Standards

UL and C-OSHA-compliant gray polyester powder-coated wire guards

Maximum Ambient Operating Temperature

104 Degrees F

Ventilation Type

Exhaust

Product Description

Shutter Mount Exhaust Fan, Blade Dia. 20 in, Number of Speeds Variable, Fan Voltage 115V AC, CFM @ 0.000-In. SP 2830, Exhaust/Supply Fan Motor HP 1/4 hp, Square Opening Required 21 in, CFM @ 0.125-In. SP 2255, CFM @ 0.250-In. SP 1870, Sones @ 0.000-In. SP @ 5 Ft. 11.3, Motor RPM 1075, Hz 60, Phase 1, Full Load Amps 2.75, Max. Ambient Temp. 104 Degrees F, Motor Type PSC, Motor Enclosure Totally Enclosed Air-Over, Motor Insulation Class B, Bearing Type Ball, Height 23 1/8 in, Width 23 1/8 in
