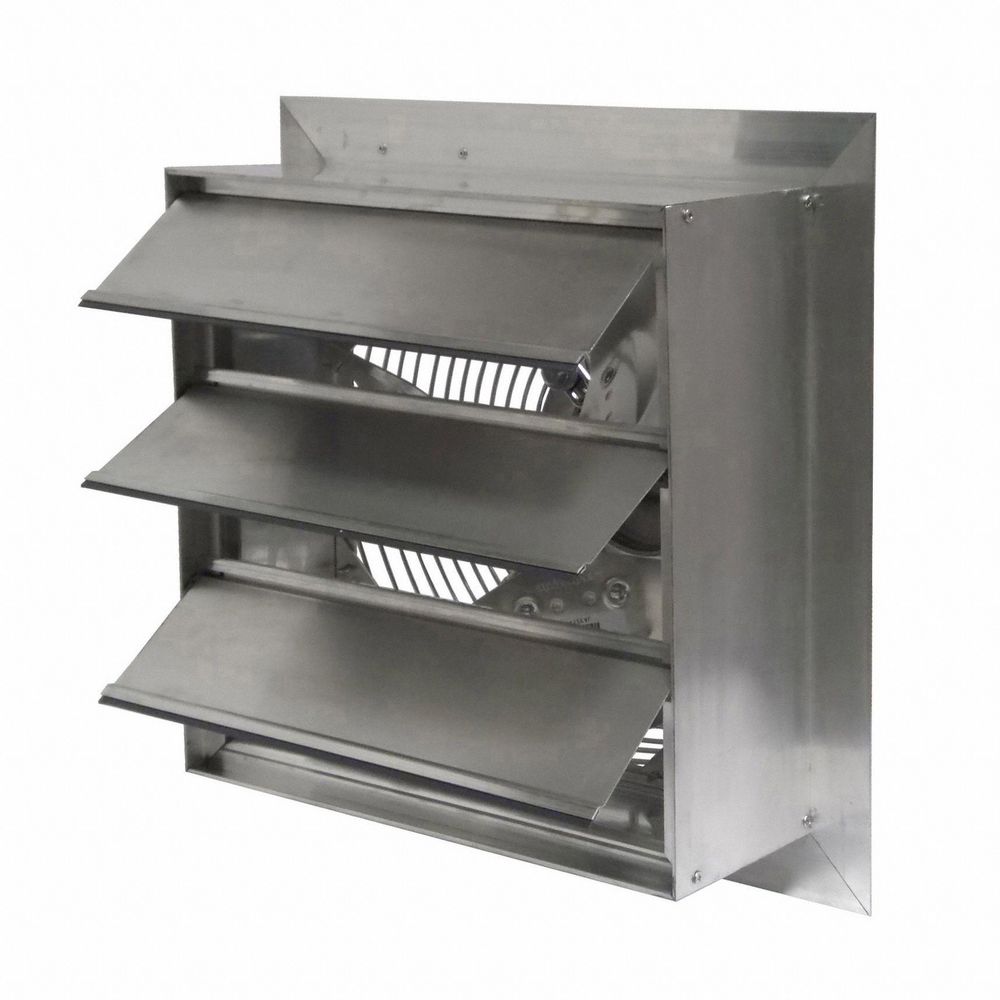

Canarm 1/15 Hp 12 in-Dia. 115 VAC V Shutter Mount Exhaust Fan, 14" Square Opening Required

Hover over image to magnify
Exhaust Fan,12 In,115V,1/15hp,
PI_Asset_3735673
Exhaust Fan,12 In,115V,1/15hp,
PI_Asset_3735673

#936344-9 | Pkg Qty: 1

$394.45 pkg | $394.45 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Blade Material
Aluminum
Motor Enclosure
Totally Enclosed Air-Over
Brand
CANARM
Motor Type
PSC
Frame Material
Aluminum
Number of Blades
3
Full Load Amps
1
Package Quantity
1
Hz
60
Phase
1
Item
Shutter Mount Exhaust Fan
Shipping Weight
21.64 lb.
Mfr. Part Number
AX12-1VHE
General
Assembled
Fully Assembled
Maximum Ambient Operating Temperature
104 Degrees F
Discharge Direction
Horizontal
Maximum Exhaust Airflow @ 0.000 in SP
0 to 2000 cfm
Exhaust Airflow @ 0.000 in SP
1,350 cfm
Maximum Noise Level
9.2 sones
Exhaust Airflow @ 0.100 in SP
1,290 cfm
Maximum Noise Level @ 0.000 in SP @ 5 ft
Greater than 9.0 sones
Exhaust Airflow @ 0.125 in SP
1,275 cfm
Motor Enclosure Design
Totally Enclosed Air Over (TEAO)
Exhaust Airflow @ 0.250 in SP
1,150 cfm
Motor Horsepower
1/15 hp
Fan Style
Shutter-Mounted
Motor Speed
1,450 RPM
Fan Voltage
115V AC
Nameplate Voltage
115V AC
For Cut-Out Height
14 in
Noise Level @ 0.000 in SP @ 5 ft
9.2 sones
For Cut-Out Length
14 in
Noise Level @ 0.100 in SP @ 5 ft
9.2 sones
For Cut-Out Width
14 in
Nominal Voltage
115V AC
For Maximum Wall Thickness
5 in
Number of Fans
1
For Minimum Wall Thickness
5 in
Speed Controllable
Yes
Guard Finish
Chrome
Square Opening Required
10-1/2 to 20 in
Guard Type
Intake
Standards
CSA, OSHA
Includes
Shutter
Supply Airflow @ 0.000 in SP
1,350 cfm
Includes Motor
Yes
Vent Design
Ductless
Manufacturer Warranty Length
1 yr
Ventilation Type
Exhaust
Maximum Airflow
1,350 cfm

Product Description

Shutter Mount Exhaust Fan, Blade Dia. 12 in, Number of Speeds Variable, Fan Voltage 115V AC, CFM @ 0.000-In. SP 1350, Exhaust/Supply Fan Motor HP 1/15 hp, Square Opening Required 14 in, CFM @ 0.125-In. SP 1275, CFM @ 0.250-In. SP 1150, Motor RPM 1450, Hz 60, Phase 1, Full Load Amps 1, Max. Ambient Temp. 104 Degrees F, Motor Type PSC, Motor Enclosure Totally Enclosed Air-Over, Motor Insulation Class B, Bearing Type Sleeve, Height 16 3/4 in, Width 16 3/4 in, Max. Depth 16 in
