HUBBELL WIRING DEVICE-KELLEMS

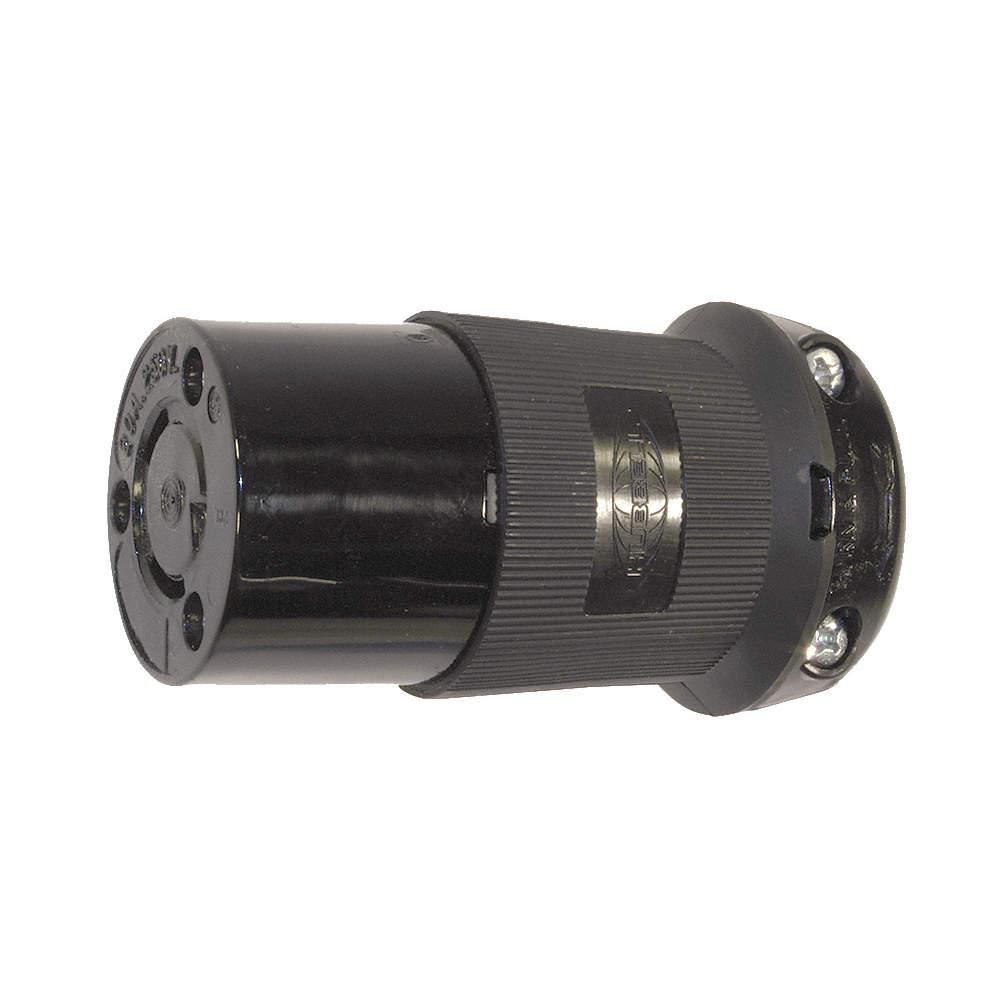

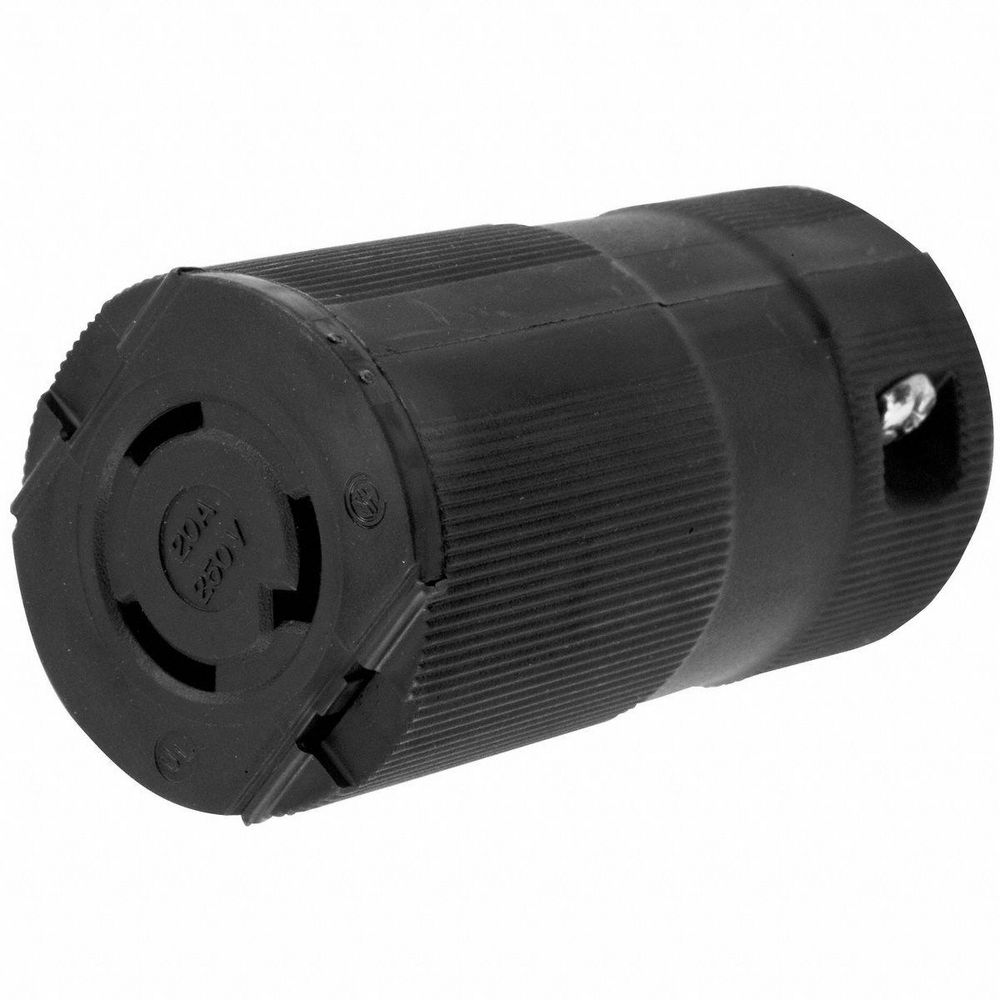

Hubbell Wiring Device-Kellems Midget Locking Connector, 240V AC Voltage, 20 A Amps, NEMA Configuration: L6-20R, Number of Wires: 3
Hover over image to magnify
#936571-1 | Pkg Qty: 1
$28.25 pkg | $28.25 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Amperage
20 A
Mfr. Part Number
HBL2323VBK
Amps
20 A
Midget Locking
No
Body Material
Nylon
Minimum Operating Temperature
-40 °C
Brand
HUBBELL WIRING DEVICE-KELLEMS
Minimum Wire Size
14 AWG
Cap Type
No Cap or Cover
NEMA Configuration - Plugs & Connectors
L6-20
Color Family
Black
NEMA Receptacle Configuration
L6-20R
Connection Orientation
Straight
Number of Poles
2
Contact Material
Brass
Number of Wires
3
Cord Size
0.326 in to 0.720 in
Outside Diameter
1.812 in.
Current Rating
20 A
Overall Length
1.81 in.
For Environment
Dry
Package Quantity
1
For Location
Indoor
Phase
Single
Grounding
Grounded
Shipping Weight
.25 lb.
Horsepower
2 hp
Shrouded
No
Housing Color
Black
Standards
CSA Certified C22.2 No. 42, Federal Specification W-C-596, UL 498
Housing Material
Nylon
UL 94 Flammability Rating
HB
IP Rating
IP20
Voltage
240V AC
Item
Midget Locking Connector
Voltage Rating
250V AC
Maximum Operating Temperature
75 °C
Wire Connection Type
Screw Terminals
Maximum Wire Size
8 AWG
Wiring Style
Hinged
General
Horsepower Rating
2 hp
NEMA Configuration
L6-20
Market
Industrial
Resistance Properties
Impact Resistant
Product Description
Midget Locking Connector, Wiring Style Hinged, Amps 20 A, NEMA Configuration L6-20R, Voltage 240V AC, Number of Poles 2, Number of Wires 3, Color Black, Body Material Nylon, Cord Size 0.326 in to 0.720 in
Item Barcode
Locking Connector,Hinged,20 A,
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 4HD27 | |
 | UNSPSC CODES | 39121403 | |
 | VMRS (ATA) CODES | 053-006-009 | Locking Connector, |
