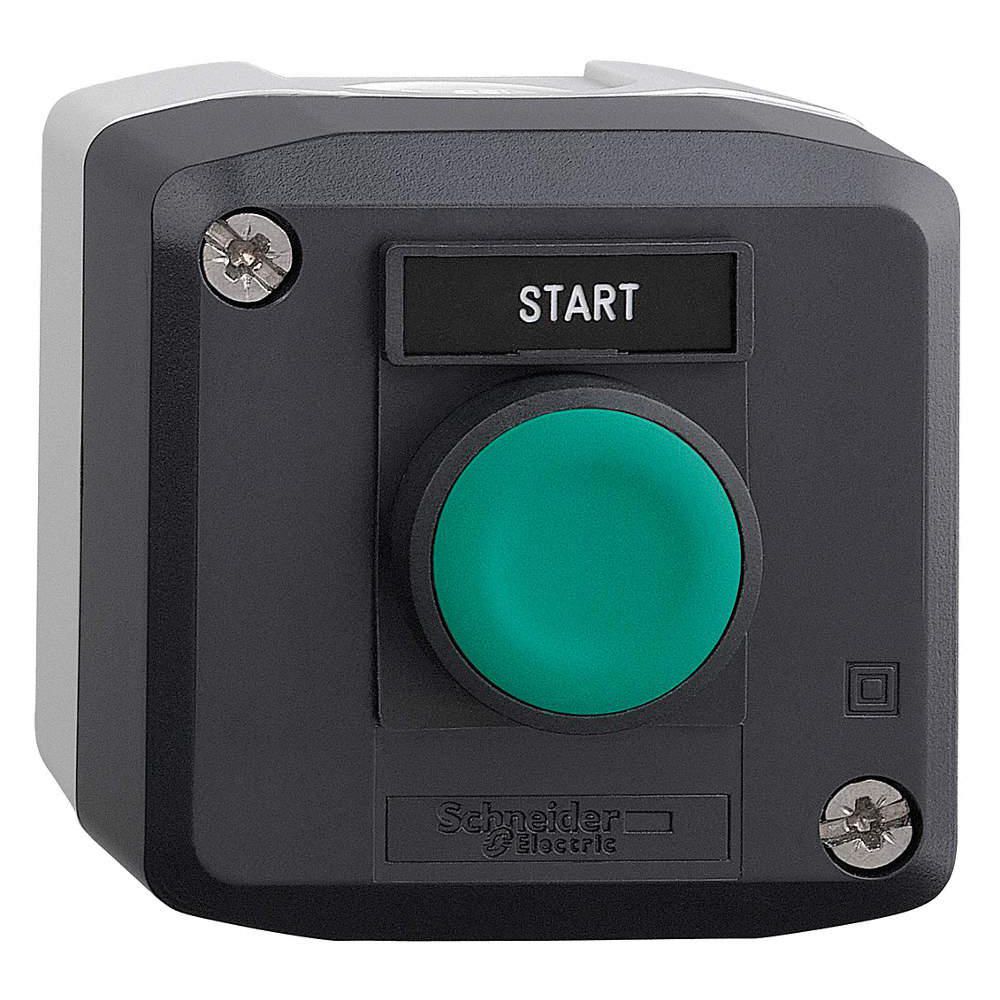

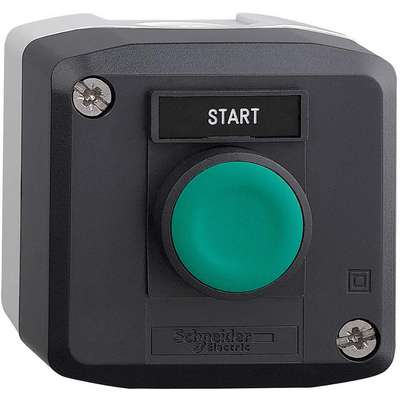

Schneider Electric Push Button Control Station, 1NO Contact Form, Number of Operators: 1, Type of Operator: Push Button
Hover over image to magnify
#913194-9 | Pkg Qty: 1
$78.24 pkg | $78.24 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Action
Momentary
Length
2.68 in.
Brand
SCHNEIDER ELECTRIC
Mechanical Interlock
No
Color Family
Green
Mfr. Part Number
XALD101H29H7
Contact Form
1NO
NEMA Contact Rating Designation
A600/Q600
Contact Rating
10 A @ 600 VAC, 2.5 A @ 24 VDC
NEMA Rating
4X, 13
Contact Type
1NO
Number of Operators
1
Depth
2.68 in.
Operator Color
Green
Enclosure Color
Light Gray and Dark Gray
Pack Quantity
1
Enclosure Material
Polycarbonate
Product Size
22 mm
Height
2 in.
Shipping Weight
.35 lb.
IP Rating
65
Size
22 mm
Item
Push Button Control Station
Type of Operator
Push Button
Legend
Start
Width
2.68 in.
Legend Markings
Start
General
AC Contact Rating
1.2 A @ 600 V, 3 A @ 240 V, 6 A @ 120 V
Operating Temperature - Minimum
-40 Degrees F
Compatible with Series
Harmony
Operator Configuration
Flush Push Button
DC Contact Rating
0.1 A @ 600 V, 0.27 A @ 250 V, 0.55 A @ 125 V
Operator Type
Push Button
Enclosure Material Type
Non-Metallic
Overall Depth
2.68 in
Environments & Applications
Oil- & Dust-Tight, Washdown-Corrosion-Resistant, Weather Resistant
Overall Height
3.58 in
Hub Size - Maximum
9/16 in
Overall Width
2.68 in
Hub Style
Feed-Thru
Panel Cutout Diameter
22 mm
Includes Mechanical Interlock
No Mechanical Interlock Included.
Push Button Head Style
Flush
NEMA Enclosure Rating
13, 4X
Push Button Type
Flush
Number of Pilot Lights
0
Resistance Properties
Chemical Resistant, Dust Resistant, Impact Resistant, Vibration Resistant, Waterproof
Number of Speeds
1
Series
Harmony
Operating Temperature - Maximum
158 Degrees F
Standards
CSA, UL Listed
Product Description
22mm Complete Push-Button Stations
- NEMA rated 4X
- Designed to control magnetic motor starters in light- and heavy-duty applications. Continuous carrying amps—A600: 10A, Q600: 2.5A.
