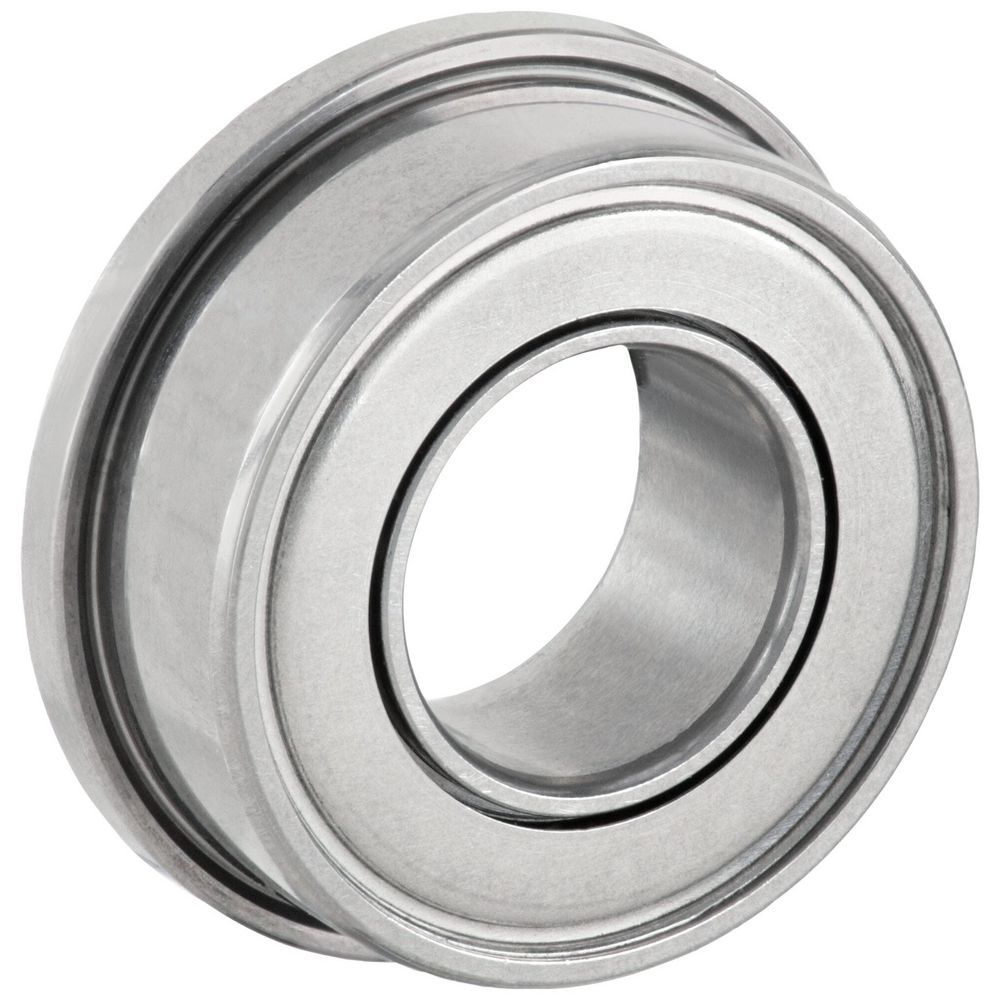

Miniature Ball Bearing: Flanged, Shielded, Stainless Steel, 0.25" Bore Dia., 0.1875" Width, 1 1
Hover over image to magnify
#936245-7 | Pkg Qty: 1
$7.31 pkg | $7.31 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
ABEC Tolerance
1
Mfr. Part Number
SFR188ZZA3MC3SRL
Bore Diameter
1/4 in.
Miniature Ball Bearings Type
Shielded
Brand
EZO
Outside Diameter
1/2 in.
Dynamic Load Capacity
243 lb.
Package Quantity
1
Item
Miniature Ball Bearing
Shipping Weight
.01 lb.
Lubrication
Grease
Static Load Capacity
99 lb.
Material
Stainless Steel
Temperature Range (Deg. F)
-40° to 302°F
Maximum RPM
40000 RPM
Width
3/16 in.
General
Dynamic Load Capacity (Lb.)
243 lb
Static Load Capacity (Lb.)
99 lb
Product Description
Miniature Ball Bearing, Flanged, Shielded, Bore Dia. 0.25 in, Outside Dia. 0.5 in, Width 0.1875 in, Flange Dia. (In.) 0.547 in, Flange Dia. (mm) 13.89 mm, Dynamic Load Capacity (Lb.) 243 lb, Static Load Capacity (Lb.) 99 lb, 40,000 RPM Max. RPM, Temp. Range (F) -40 Degrees to 302 Degrees F, Stainless Steel Material, Grease Lubrication
Item Barcode
Ball Bearing,0.2500in Dia,99
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 45VA90 | |
 | UNSPSC CODES | 31171504 | |
 | VMRS (ATA) CODES | 053-006-009 | Ball Bearing, 0.2500in Dia, |
