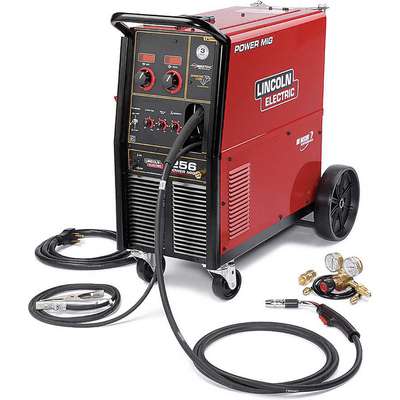

Lincoln Electric MIG Welder, Power MIG Series, Input Voltage: 208/240 VAC, Flux Core, MIG

Hover over image to magnify
Mig Welder,Wheeled,208/230VAC
PI_Asset_1756650
PI_Asset_1765413
PI_Asset_1771207
Mig Welder,Wheeled,208/230VAC
PI_Asset_1756650
PI_Asset_1765413
PI_Asset_1771207

#918065-9 | Pkg Qty: 1

$5,480.10 pkg | $5,480.10 ea
This item requires special shipping, additional charges may apply.

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Amps AC
56
Overall Height
31-3/4 in.
Brand
LINCOLN ELECTRIC
Overall Width
18-7/8 in.
Duty Cycle
0.4
Package Quantity
1
Hz
60
Phase
1
Input
56
Portability
Wheeled Mounted
Input Amps
56
Rated Output
250 A @ 26VDC
Input Voltage
208 VAC, 230 VAC
Series
Power MIG 256
Item
MIG Welder
Shipping Weight
282 lb.
Mfr. Part Number
K3068-1
Type
Mig/Flux Core
OCV
40
Welded Material
Mild Steel, Aluminum, Stainless Steel
Output Range
30 to 300A DC
Welding Processes
Flux-Cored Welding (FCAW), MIG Welding (GMAW)
Overall Depth
38.8 in.
General
Aluminum - Material Thickness
16 ga To 1/2 in
Maximum Wire Feed Speed
700 in/min
Application
Metal Fabrication, Maintenance and Repair, Farm/Autobody, Light Industrial
Mild Steel - Material Thickness
22 ga to 1/2 in
Features
Delivers a Forgiving Arc, Excellent Out-of-Position Arc Stability, Low Spatter and a Wide Voltage Sweet Spot at a Given Wire Feed Speed for Steel, Stainless Steel or Aluminum. Maxtrac® Cast Aluminum Industrial Wire
Minimum Wire Diameter
0.025 in (Mild Steel), 0.030 in (Stainless Steel), 0.035 in (Flux-Cored)
For Wire Type
Flux-Cored, Solid
Minimum Wire Feed Speed
50 in/min
Includes
Dual Cylinder Mounting Kit, Gas regulator and hose kit for argon blend gases, Magnum PRO 250L MIG Gun, Work clamp and 10 ft cable
Output Range (Amps)
30-300
Input (Amps)
56
Rated Output at Duty Cycle (MIG)
250 A @ 40%
Input Voltage (Nominal)
208V, 240V
Remote Connection Type
7-Pin (Lincoln)
Kit Includes
Flow Gauge Regulator & Gas Hose, MIG Gun, Running Gear, Work Cable with Clamp
Stainless Steel - Material Thickness
16 ga to 5/16 in
MIG Welding Maximum Output Current
300 A
Welder Kit Type
MIG Package w/Running Gear
MIG Welding Minimum Output Current
30 A
Welding Mode
CV
MIG Welding Output @ Duty Cycle
250 A @ 26 V, 40%
Wire Size (In.)
.025/.030/.035/.045
Maximum Amperage Range (MIG)
150 A — 300 A

Product Description

This MIG welder is spool gun-ready and features Diamond Core Technology™ for excellent arc, low spatter, and wide voltage range. It also features digital meters for setup voltage and wire feed speed settings plus actual voltage display during welding. A 115V receptacle powers a grinder or other auxiliary equipment.
