PIC GAUGES

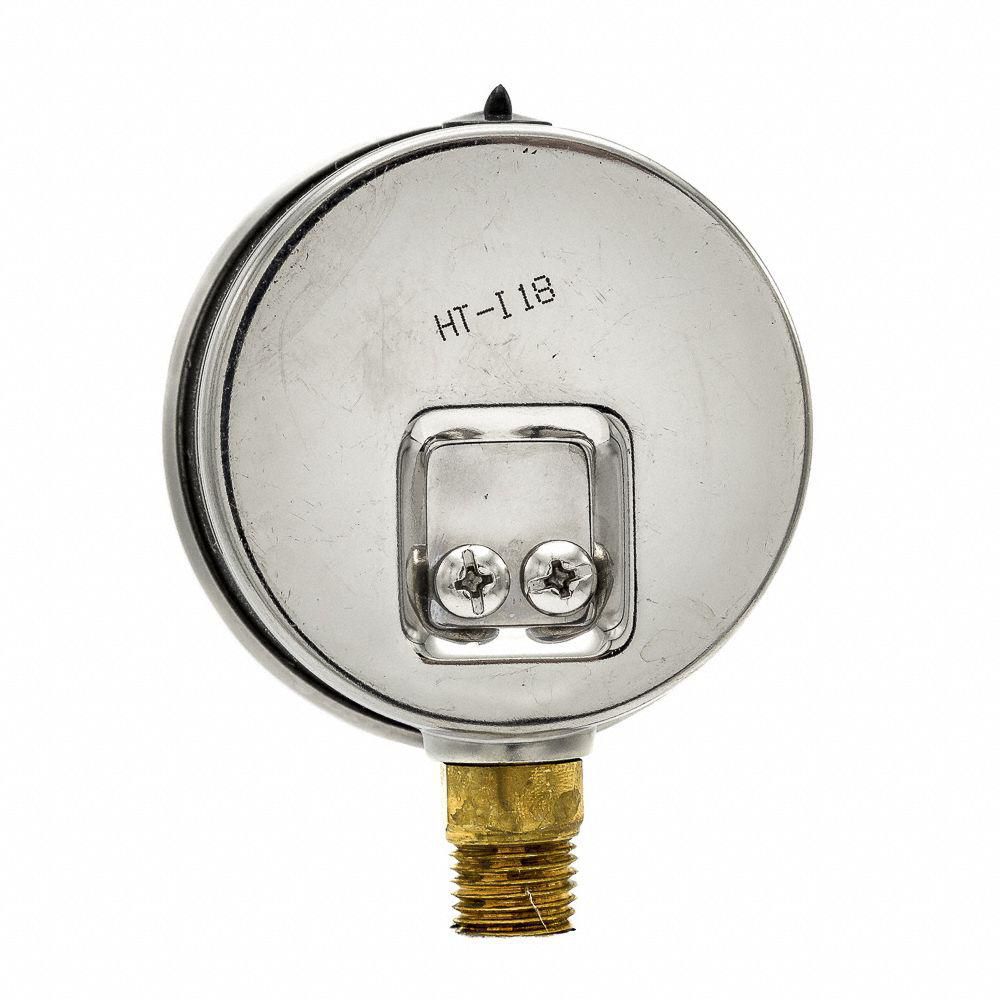

Industrial Pressure Gauge: 0 to 400 psi, 2 1/2" Dial, Liquid-Filled, 1/4" NPT Male

Hover over image to magnify
Pressure Gauge,1/4 In. NPT,2-1/
PI_Asset_1764743
PI_Asset_1764745
Pressure Gauge,1/4 In. NPT,2-1/
PI_Asset_1764743
PI_Asset_1764745
Double tap image to magnify
Pressure Gauge,1/4 In. NPT,2-1/
20TV26_1
20TV26_2
Pressure Gauge,1/4 In. NPT,2-1/
20TV26_1
20TV26_2

#935269-6Pkg Qty: 1

$25.27 pkg | $25.27 ea
Pressure Range : 0 to 400

In Stock

Shipping to 43085
Expected to arrive Fri. Apr 04.
|

Technical Specifications

Key Specifications
Bezel Material
Stainless Steel
Gauge Sensor Material
Copper Alloy
Brand
PIC GAUGES
Gauge Socket Material
Copper Alloy
Calibration Certificate Included
No
Hazardous Location Rating
Not Rated
Gauge Accuracy
±2-1-2%
Item
Industrial Pressure Gauge
Gauge Application
General Purpose
Liquid Filled
Yes
Gauge Case Color
Silver
Mfr. Part Number
PRO-201L-254I
Gauge Case Material
Stainless Steel
Mfr. Warranty Length
1 yr.
Gauge Connection Location
Bottom
Mounting Type
Stem-Mount
Gauge Connection Size
1/4 in.
Non-Sparking
No
Gauge Connection Type
MNPT
Operating Temperature Range
-30 deg. F to 180 deg. F
Gauge Filled With
Glycerin
Package Quantity
1
Gauge Lens Material
Polycarbonate
Pressure Range
0 to 400
Gauge Nominal Dial Size
2-1/2 in.
Series
201L
Gauge Panel Mountable
No
Shipping Weight
.5 lb.
Gauge Primary Range Units
psi
Vibration Resistance
Liquid-Filled
General
Accuracy Grade
ASME B40.100 Grade A
Pressure Range Type
Pressure
Accuracy Scale
Mid-Scale
Pressure and Vacuum Gauge Type
Pressure Gauge
Bezel Mounting Type
Fixed
Primary Scale Minor Graduations
5
Case Depth
1.2 in
Process Connection
1/4 in NPT Male
Case Diameter
2.65 in
Process Connection Gender
Male
Gauge Accuracy Grade
Grade A - Industrial
Process Connection Type
NPT
Gauge Wetted Parts
Copper
Scale Type
Dual
Lens Material - Gauge
Plastic
Secondary Pressure Range
0 to 27.6
Manufacturer Warranty Length
1 yr
Secondary Scale Units
bar
Pointer Material
Aluminum
Standards
ASME

Product Description

Pressure Gauge, General Purpose, 2 1/2 in, Basic Gauge Case Material Stainless Steel, Basic Gauge Wetted Parts Copper, 1/4 in, MNPT, Gauge Connection Location Bottom, 0 to 400, psi, +/-2-1-2 Percent, Gauge Panel Mountable No, Liquid Filled Yes, Gauge Primary Range Smallest Graduation 5, Gauge Case Material Stainless Steel, Gauge Case Color Stainless Steel, Calibration Certificate Included No

Compliance & Restrictions

California Proposition 65 Icon
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
