HARRINGTON

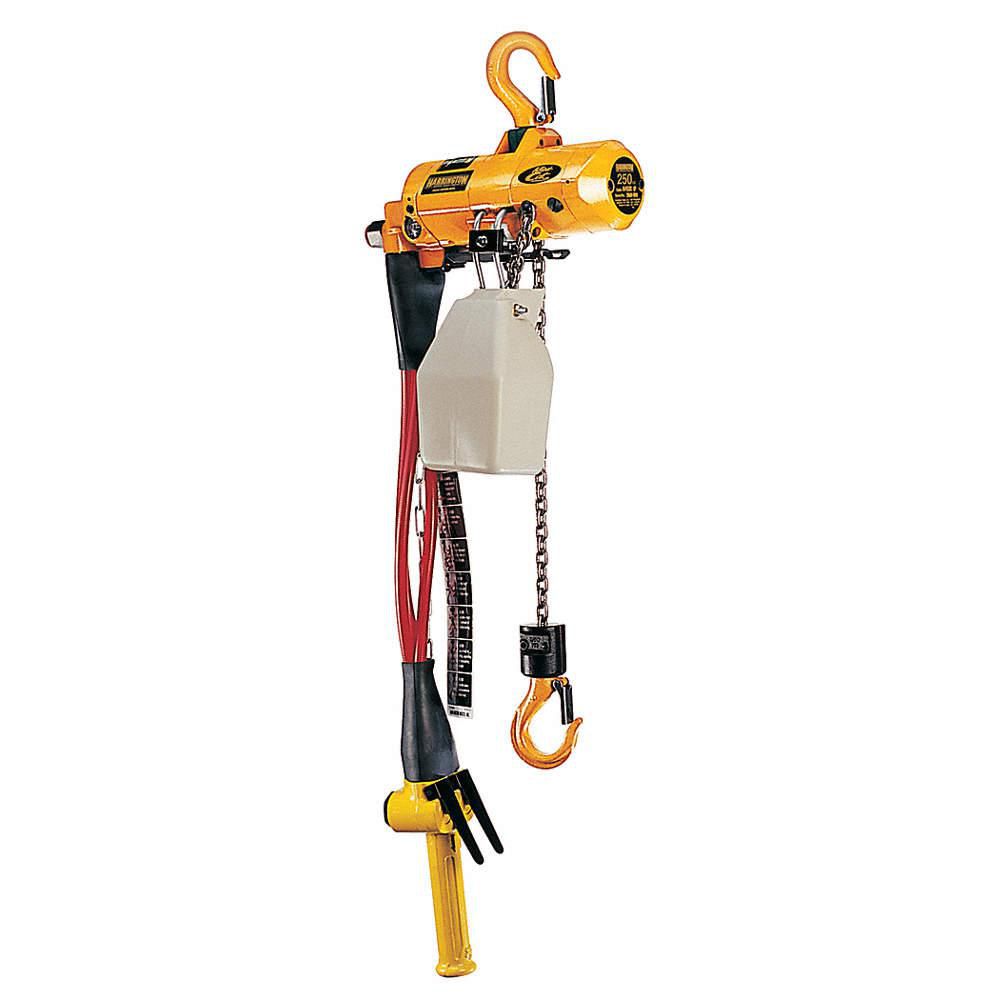

Air Chain Hoist, 250 lb Load Capacity, 10 ft Hoist Lift, Hook Mounted - No Trolley

Hover over image to magnify
Air Chain Hoist,250 Lb. Cap.,
Air Chain Hoist,250 Lb. Cap.,
Double tap image to magnify
Air Chain Hoist,250 Lb. Cap.,
Air Chain Hoist,250 Lb. Cap.,

#936242-6Pkg Qty: 1

$3,763.66 pkg | $3,763.66 ea

In Stock

Shipping to 43085
Expected to arrive Fri. Apr 04.
|

Technical Specifications

Key Specifications
Brake
Self Adjusting
Item
Air Chain Hoist
Brand
HARRINGTON
Lift Speed
42 fpm
Color Family
Yellow
Load Capacity
250 lb.
Control
Pendant
Mfr. Part Number
AH250P-10
Finish
Acrylic Resin Paint
Mfr. Warranty Length
1 yr.
Hoist Lift
10 ft.
Package Quantity
1
Hoist Mount
Hook Mounted - No Trolley
Reeving
1
Housing Length
9-11/16 in.
Series
Ah
Housing Width
4 in.
Shipping Weight
25.94 lb.
General
Air Consumption (SCFM)
28
Min. Between Hooks (In.)
12
Air Pressure
90 psi
Noise Level
76 dB
Air Pressure (PSI)
90
Overall Length (In.)
9.7
Housing Length (In.)
9.7
Overall Width (In.)
6
Includes
Chain Container, Nickle Plated Load Chain
Standards
ANSI/ASME B30.17
Lift Speed (FPM)
42
Suspension
Hook
Min. Between Hooks
12 in

Product Description

250- to 6000-lb. Capacity Air Chain Hoists

  • Low headroom Fine feathering control for precise positioning Self-adjusting disc brake system Continuous-duty cycle Nickel-plated load chain and chain container included Yellow acrylic resin paint AH Series hoists are compact and lightweight. TCS Series include external speed adjustment. TCR Series are designed for heavy load lifting with pilot air and spring-loaded vanes for ultimate load control. Feature built-in adjustable load limiter and limit switches. Meet ANSI/ASME B30.17 standards.
