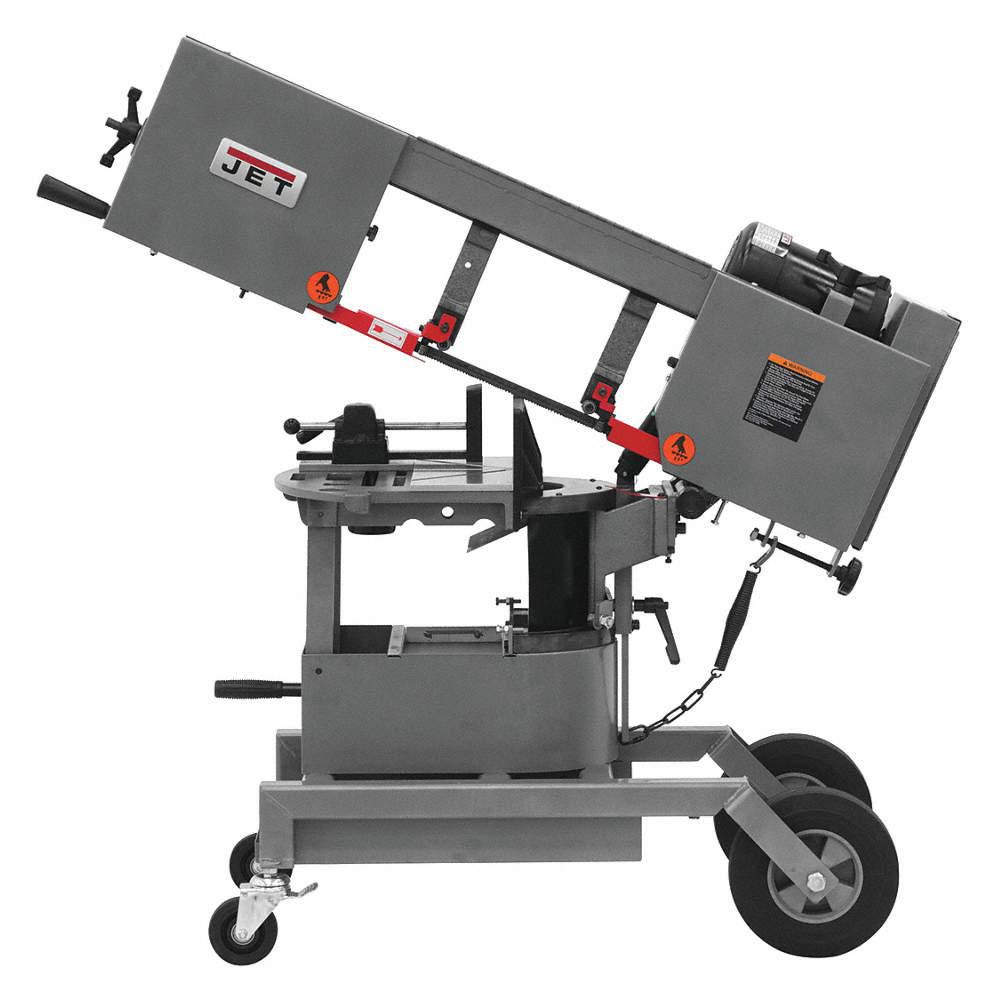

JET HVBS-10 DMW Horizontal/Vertical Combo, Stationary Band Saw; 120 in. Blade Length, 3 Speeds

Name: JET HVBS-10 DMW Horizontal/Vertical Combo, Stationary Band Saw; 120 in. Blade Length, 3 Speeds
Brand: JET
SKU: 9348373
Price: 4685.77 USD
Availability: InStock

Hover over image to magnify

#934837-3 | Pkg Qty: 1

$4,685.77 pkg | $4,685.77 ea

This item requires special shipping, additional charges may apply.

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications

Blade Length

120 in.

Operation

Semi-Automatic

Blade Thickness

0.032 in.

Orientation

Horizontal/Vertical Combo

Brand

JET

Overall Depth

72 in.

Current Rating

14.0/7.0 A

Overall Height

46 in.

Horsepower

1 HP

Overall Width

34-1/2 in.

60 Hz

Package Quantity

Item

Stationary Band Saw

Phase

Material Application

Metal

Shipping Weight

538 lb.

Mfr. Part Number

HVBS-10 DMW

Voltage

115V AC

Number of Speed Settings

General

Blade Wheels Dia.

8.8125 in.

Miter Angle Range

45 Degrees Left to 45 Degrees Right

Cutting Capacity Square

8 in.

Rectangular Cutting Capacity - Horizontal

8 in. x 5-1/2 in.

Features

Add to The Convenience with Easy Conversion from A Horizontal to Vertical Position and Wheels for Moving Around the Shop Floor, Allowing for Quick Angle Cuts, The Unique Head Design Miters Both Left and Right

Round Cutting Capacity - Horizontal

10 in.

Includes

Vertical Cutting Platform, Wheels, Work Stop Assembly

SFPM Range

64 to 247

Max. Blade Width

1/32 in.

Throat Depth - Vertical

12 in.

Product Description

Semi-automatic combination vertical and horizontal band saws are manually operated in the vertical position and semi-automatic in the horizontal position. Manually operated band saws have a table that supports the workpiece while the operator pushes it through the blade. Semi-automatic horizontal band saws have a table the operator manually clamps the workpiece to. The saw is programmed to lower the cutting head to complete the cut. Semi-automatic saws lower operator fatigue on medium and large production runs when repeated cuts are made.

Item Barcode

Band Saw,Combination,64 To 247

Cross References
Legal

Name	Item	Description
Grainger Dropship	53ZC58
UNSPSC CODES	27112709
VMRS (ATA) CODES	053-006-009	Band Saw, Combination,
