POLARIS

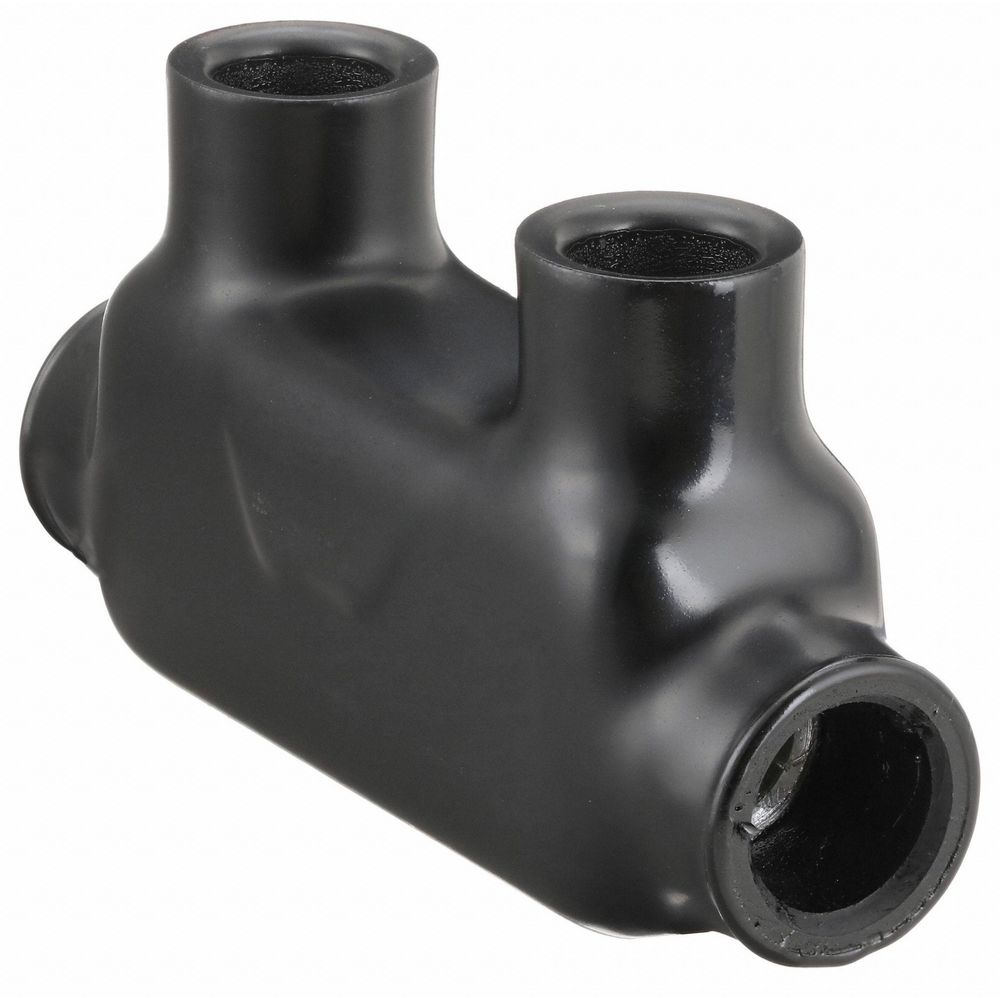

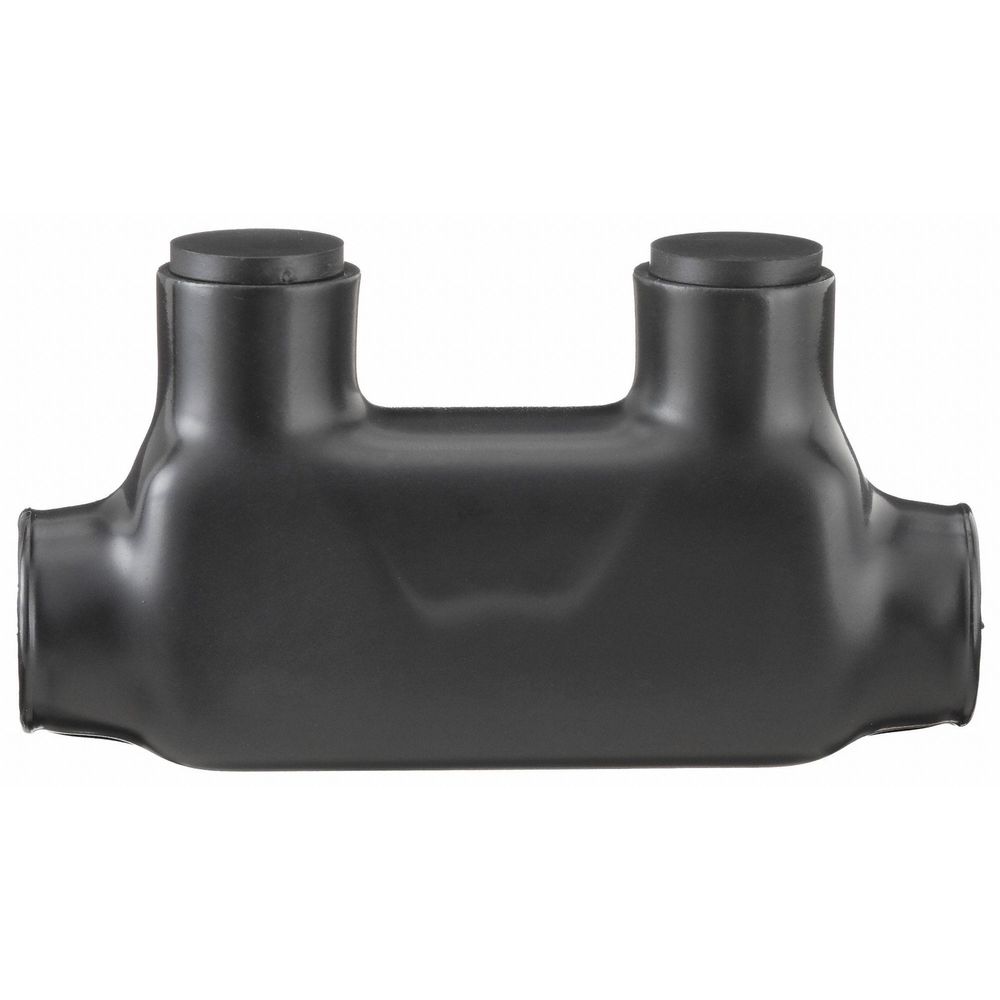

Polaris Insulated Multitap Connector, Double-Sided Entry, T, No. of Ports 2, 1/0 AWG Max. Conductor Size

Hover over image to magnify
Insulated Multitap Connector,3.
PI_Asset_3731062
PI_Asset_3731063
PI_Asset_3731064
PI_Asset_3731065
Insulated Multitap Connector,3.
PI_Asset_3731062
PI_Asset_3731063
PI_Asset_3731064
PI_Asset_3731065
Double tap image to magnify
Insulated Multitap Connector,3.
14V967-A0020-4_v1
14V967-A0020-5_v1
14V967-A3020-2_v1
14V967-A3020-3_v1
Insulated Multitap Connector,3.
14V967-A0020-4_v1
14V967-A0020-5_v1
14V967-A3020-2_v1
14V967-A3020-3_v1

#932336Pkg Qty: 1

$38.32 pkg | $38.32 ea

In Stock

Shipping to 43085
Expected to arrive Tue. Mar 25.
|

Technical Specifications

Key Specifications
Body Material
Aluminum
Mfr. Part Number
ISR-1/0B
Brand
POLARIS
Mount
N
Cable Size
1/0 AWG
Package Quantity
1
Connector Type
Double-Sided Entry, T
Screw Material
Aluminum
Direct Burial Rated
No
Shipping Weight
.2 lb.
Head Style
Hex
Stud Size
3/16 in.
Insulation Material
Plastisol
Type
In-Line Splice
Item
Insulated Multitap Connector
Width
0.9 in.
Length
3-1/4 in.
General
Compatible with Product Type
Copper and Aluminum Cables
RoHS Compliant
Yes
For Conductor Material
Aluminum, Copper
Standards
California Title 24 Compliant, CSA Certified
For Stranded Copper Wire Size - Maximum
1/0 AWG
Strip Length
1 1/16 in
For Stranded Copper Wire Size - Minimum
14 AWG
Tap Shape
T
For Wire Size
1/0 AWG, 10 AWG, 12 AWG, 14 AWG, 2 AWG, 4 AWG, 6 AWG, 8 AWG
Torque
180 in-lb
Hex Size
3/16 in
Wire Size Range
14 AWG – 1/0 AWG
No. of Ports
2

Product Description

ISR Series connectors are suitable for connecting two wires in-line. Insulated with high dielectric strength plastisol and molded for a precise fit. Not recommended for use with extra-flexible cables.
