POLARIS

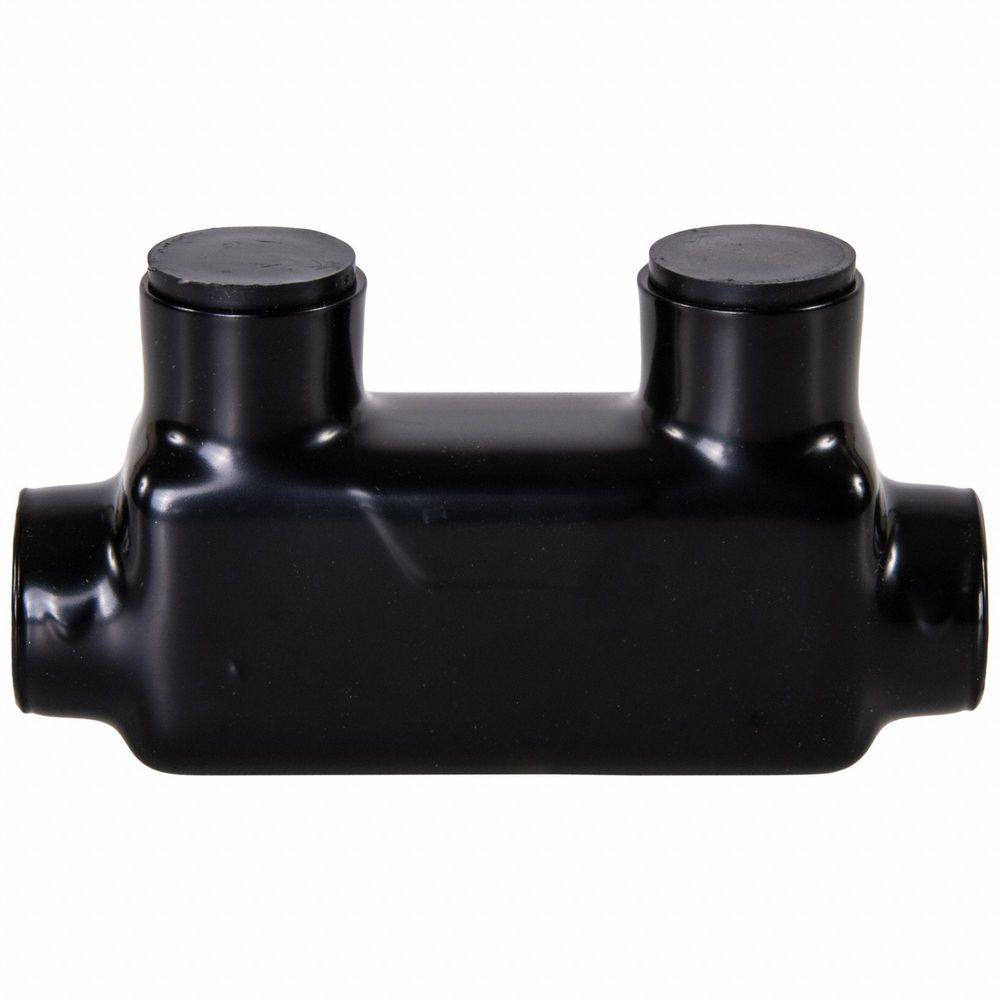

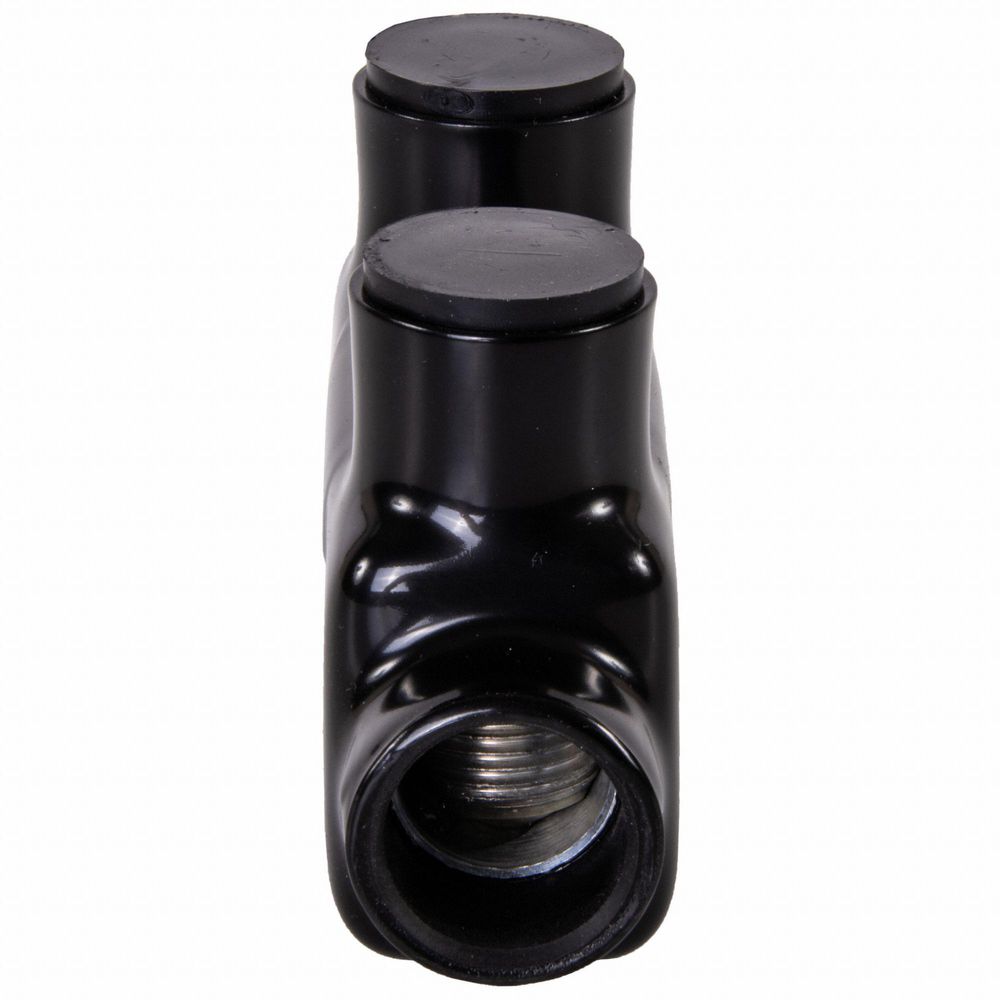

Polaris 5.83"L 2-Port Insulated Multitap Connector, Double-Sided Entry, T, 600 kcmil Max. Conductor Size

Hover over image to magnify
Insulated Multitap Connector,5.
PI_Asset_3737353
PI_Asset_3737354
PI_Asset_3737355
Insulated Multitap Connector,5.
PI_Asset_3737353
PI_Asset_3737354
PI_Asset_3737355
Double tap image to magnify
Insulated Multitap Connector,5.
34UH99-1__34UH99_v1
34UH99-2__34UH99_v1
34UH99-5__34UH99_v1
Insulated Multitap Connector,5.
34UH99-1__34UH99_v1
34UH99-2__34UH99_v1
34UH99-5__34UH99_v1

#929479-5Pkg Qty: 1

$103.79 pkg | $103.79 ea

In Stock

Shipping to 43085
Expected to arrive Fri. Mar 28.
|

Technical Specifications

Key Specifications
Body Material
Aluminum
Mfr. Part Number
ISR-600B
Brand
POLARIS
Mount
N
Cable Size
350 kcmil
Package Quantity
1
Connector Type
Double-Sided Entry, T
Screw Material
Aluminum
Direct Burial Rated
No
Shipping Weight
1.45 lb.
Head Style
Hex
Stud Size
5/16 in.
Insulation Material
Plastisol
Type
2 Ports, in. Line
Item
Insulated Multitap Connector
Width
1.57 in.
Length
5.83 in.
General
Compatible with Product Type
Copper and Aluminum Cables
RoHS Compliant
Yes
For Conductor Material
Aluminum, Copper
Standards
California Title 24 Compliant, CSA Certified
For Stranded Copper Wire Size - Maximum
600 kcmil
Strip Length
2 in
For Stranded Copper Wire Size - Minimum
6 AWG
Tap Shape
T
For Wire Size
1/0 AWG, 2 AWG, 2/0 AWG, 250 kcmil, 3/0 AWG, 300 kcmil, 350 kcmil, 4 AWG, 4/0 AWG, 400 kcmil, 500 kcmil, 6 AWG, 600 kcmil
Torque
550 in-lb
Hex Size
5/16 in
Wire Size Range
6 AWG – 600 kcmil
No. of Ports
2

Product Description

Suitable for connecting two wires in-line, this connector is insulated with high dielectric strength plastisol and molded for a precise fit. Supplied with removable access plugs over the hex screw. UV, abrasion, and chemical resistant. Will not support combustion.
