SQUARE D

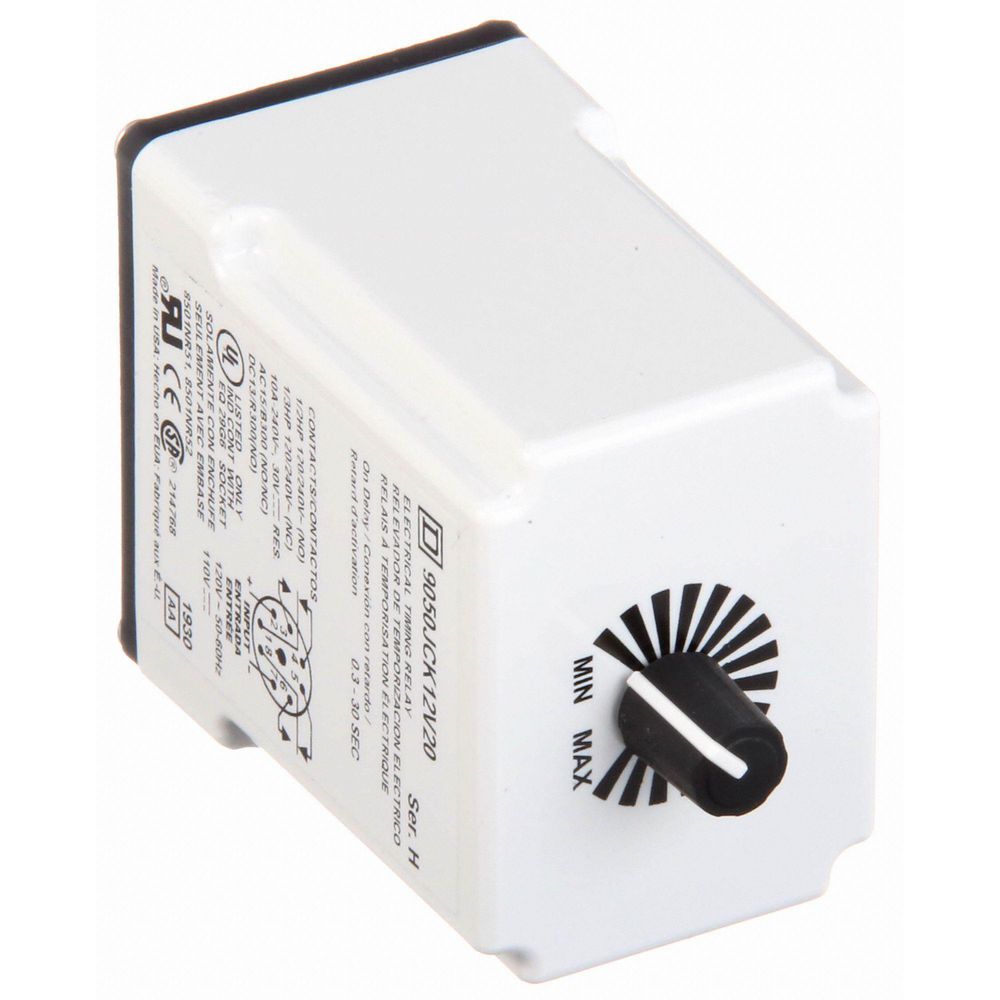

Square D Single Function Timing Relay, 120V AC, 10A @ 120/240V, 8 Pins, DPDT

Hover over image to magnify
Time Delay Rlay,120VAC,10A,
PI_Asset_1757932
PI_Asset_1767273
Time Delay Rlay,120VAC,10A,
PI_Asset_1757932
PI_Asset_1767273
Double tap image to magnify
Time Delay Rlay,120VAC,10A,
5B403_2
5B403_1
Time Delay Rlay,120VAC,10A,
5B403_2
5B403_1

#931133-8Pkg Qty: 1

$94.50 pkg | $94.50 ea

In Stock

Shipping to 43085
Expected to arrive Fri. Apr 04.
|

Technical Specifications

Key Specifications
Adjustment Method
Potentiometer
Item
Single Function Time Delay Relay
Base Type
Octal
Mfr. Part Number
9050JCK12V20
Brand
SQUARE D
Mounting
Plug in.
Coil Rating
2VA
Number of Functions
1
Coil VA Rating
2
Number of Poles
2
Coil Volts
120 VAC
Operating Functions
1
Contact Form
DPDT
Package Quantity
1
Contact Material
Silver Alloy
Pins
8
Electrical Connection
Socket
Shipping Weight
.26 lb.
Function
On Delay
Socket
1EGP3, 1EGP5, 5x852
Hz
50/60
Socket Code
A
Input or Control Voltage
120 VAC
General
AC Contact Rating - Relay
10A @ 120/240V
Hz - Electrical
50 Hz, 60 Hz
Body Depth - Relay
1.71 in
Max. Time Setting - Timer
30 sec
Body Height - Relay
3.39 in
Min. Time Setting - Timer
0.3 sec
Body Width - Relay
2.4 in
Mounting - Relay
Plug In
DC Contact Rating - Relay
10A @ 30V
Overall Height - Relay
4.1 in
HP @ 120V
1/3
Power Consumption - Relay
2 VA
HP @ 240V
1/2
Standards
CE, CSA, UL

Product Description

Single Function Time Delay Relay, Function - Timing Relay On Delay, Coil Volts 120V AC, AC Contact Rating - Relay 10A @ 120/240V, DC Contact Rating - Relay 10A @ 30V, Base Type - Plug In Relay Octal, Number of Pins - Relay 8, Mounting - Relay Plug In, Contact Form - Relay DPDT, Power Consumption - Relay 2.0 VA, Adjustment Method - Timer Potentiometer, Min. Time Setting - Timer 0.3 sec, Max. Time Setting - Timer 30 sec, Contact Material Silver Alloy
