SQUARE D

Square D Circuit Breaker, 350 Amps, Number of Poles: 3, 600VAC AC Voltage Rating

Hover over image to magnify
Circuit Breaker,350A,3P,600VAC,
PI_Asset_1985020

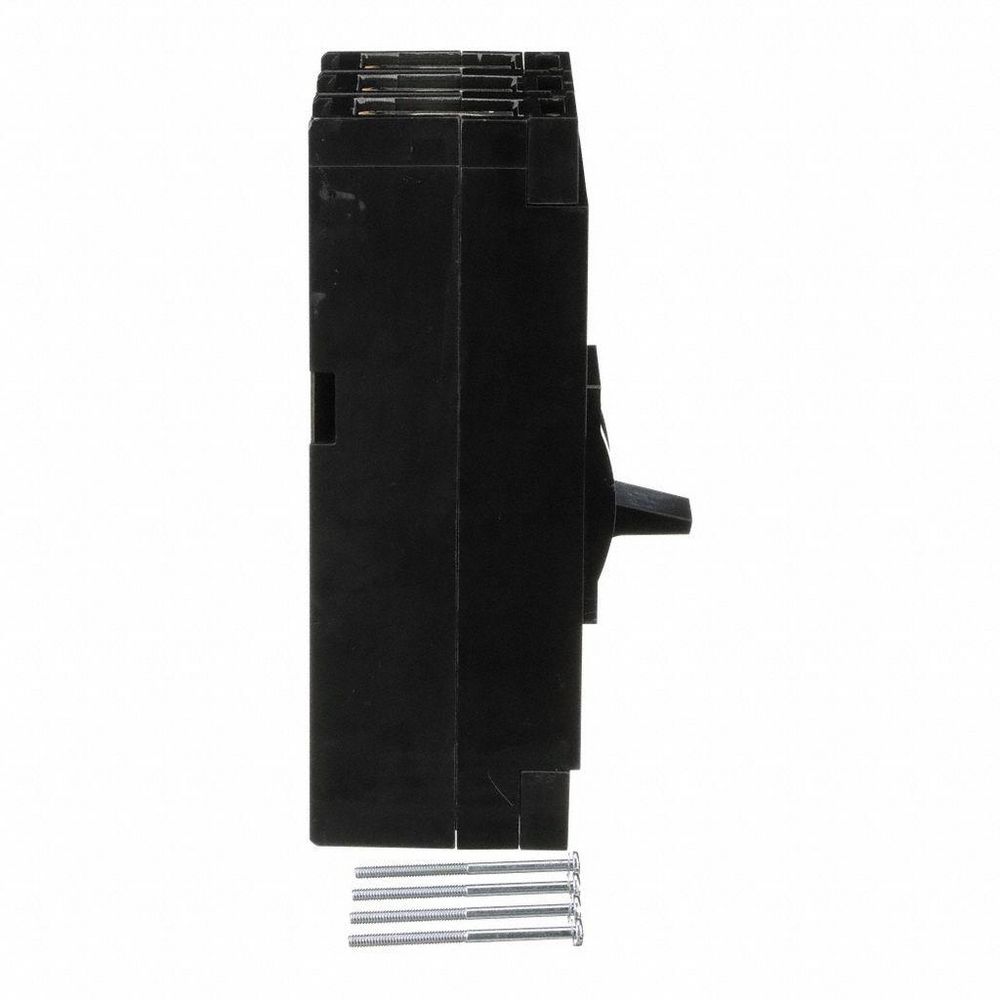

PI_Asset_1989071

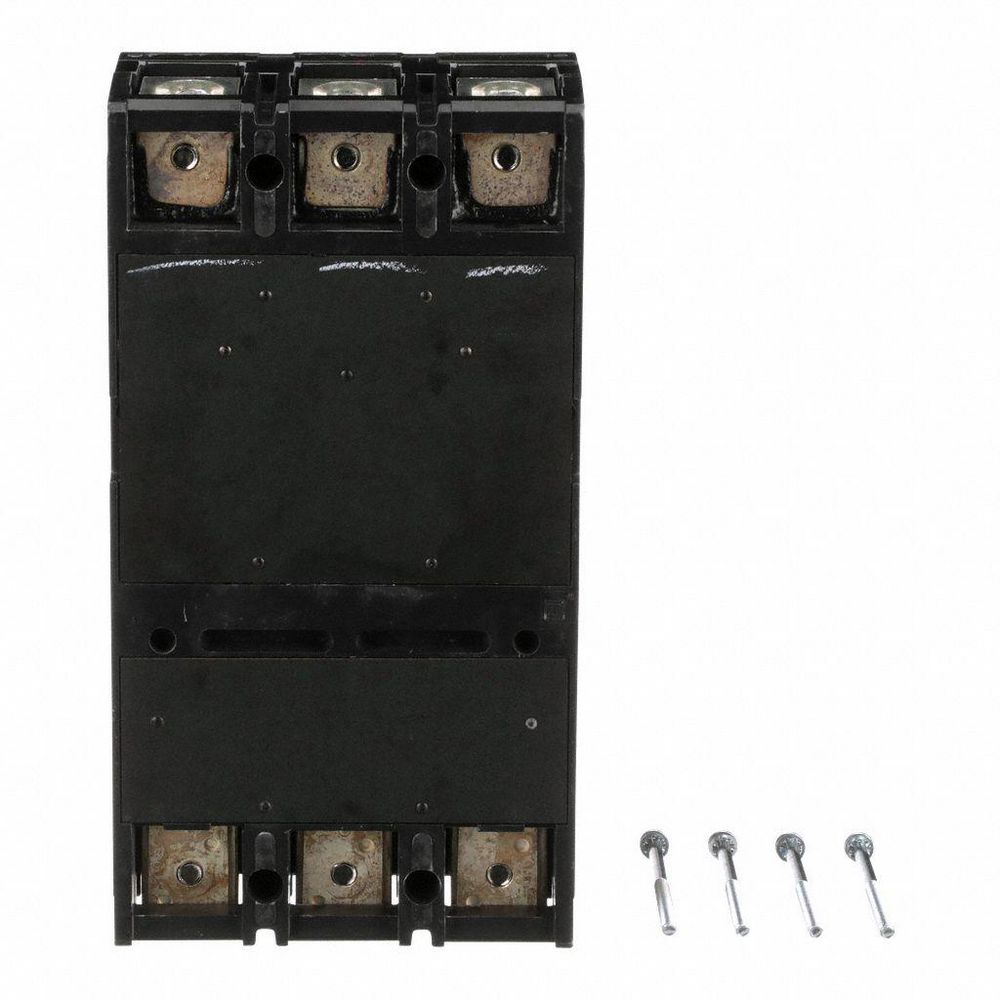

PI_Asset_1992176
Circuit Breaker,350A,3P,600VAC,
PI_Asset_1985020
PI_Asset_1989071
PI_Asset_1992176

#931055-2 | Pkg Qty: 1

$4,685.63 pkg | $4,685.63 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
AC Voltage Rating
600VAC
Item
Molded Case Circuit Breaker
Air @ 120 VAC
Not Rated
Low Amp Trip Setting
1750 A
Air @ 125 VDC
10kA
Maximum Air Rating
42kA at 240VAC
Air @ 240 VAC
42kA
Maximum DC Voltage
250
Air @ 277 VAC
Not Rated
Maximum Wire Size
250 MCM, 600 MCM
Air @ 48 VDC
Not Rated
Mfr. Part Number
LAL36350
Air @ 480 VAC
30kA
Minimum Wire Size
250 MCM, 600 MCM
Air @ 600 VAC
22kA
Mounting
Free Standing
Air @ 65 VDC
Not Rated
Number of Poles
3
Amperage
350 A
Package Quantity
1
Amps
350 A
Phase
Three
Brand
SQUARE D
Phase Connection
ABC
Circuit Breaker Type
Standard
Series
LAL
DC Voltage Rating
250VDC
Shipping Weight
14.95 lb.
Depth
5.84 in.
Terminal Connection
Lug
For Use With
Busway Plug-In Units, Combination Starters, Industrial Enclosures, Motor Control Centers, Panelboards, Switchboards
Trip Type
Thermal Magnetic
Frame Size
400A/LA
Type
Free Standing
Height
11 in.
Voltage
600VAC
High Amp Trip Setting
3500 A
Width
6 in.
Instantaneous Trip
Adjustable
General
AIR @ 125VDC
10kA
AIR @ 600VAC
22kA
AIR @ 240VAC
42kA
Circuit Breaker Actuator
Toggle
AIR @ 480VAC
30.0kA
Circuit Breaker Mounting Style
Free Standing

Product Description

LA-, LH-, and Q4-frame Square D molded case circuit breakers are rated up to 400A and 600VAC and interrupt excessive current flows to protect devices from electrical damage. They're used in construction, control equipment panels, mining, and other industrial and commercial applications. Their current-carrying parts, mechanisms, and trip devices are contained in a molded case.
