DAYTON

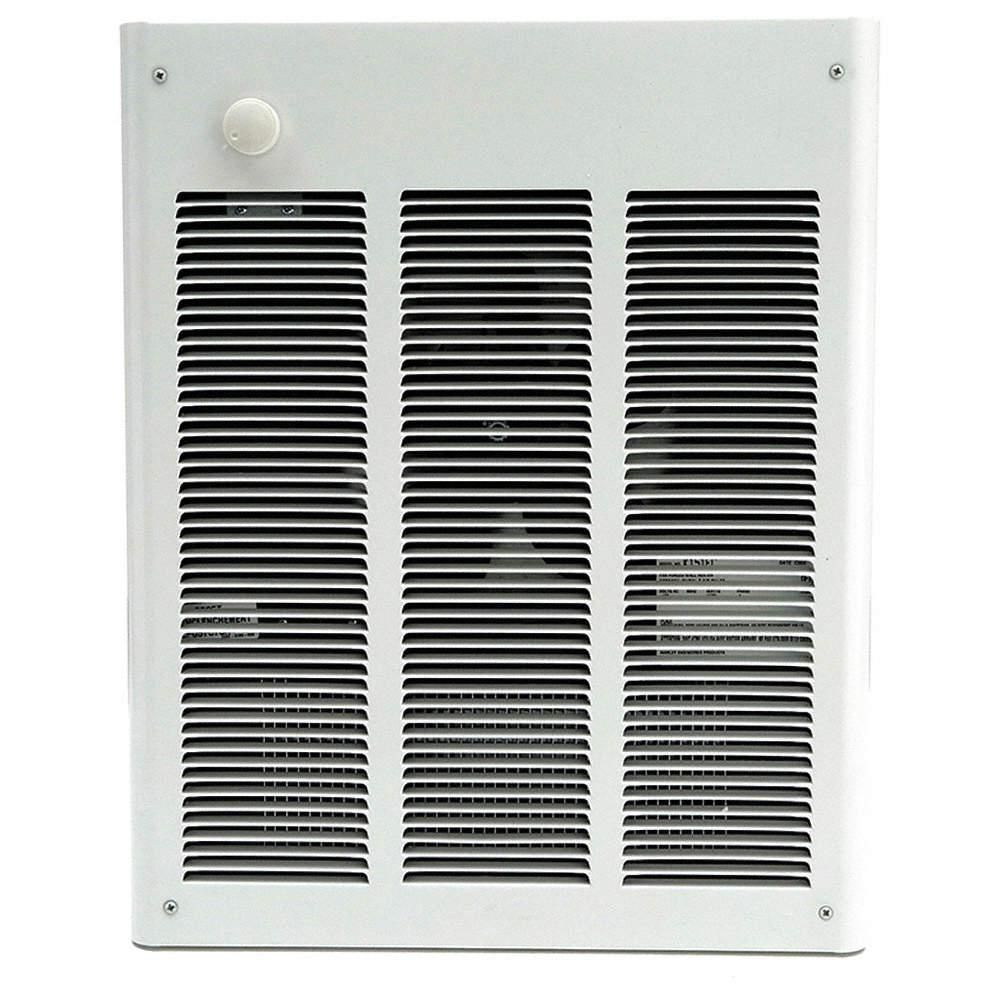

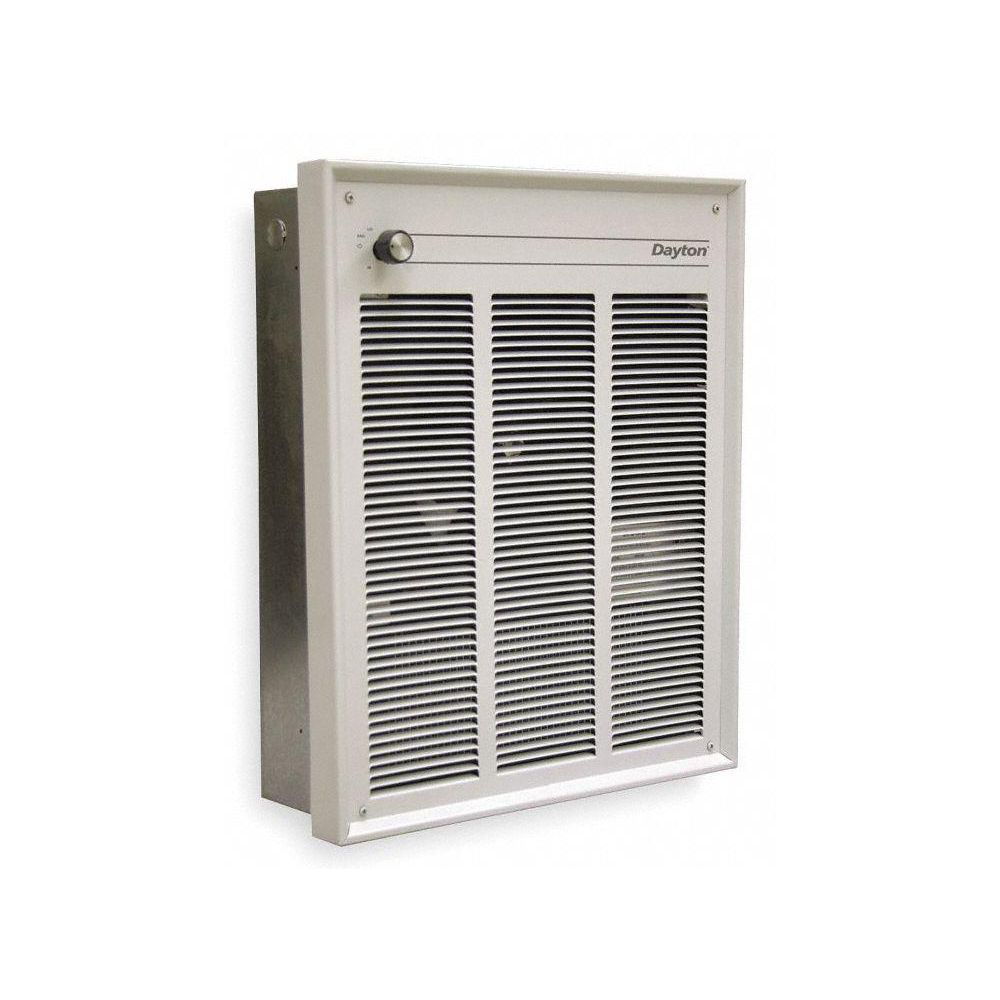

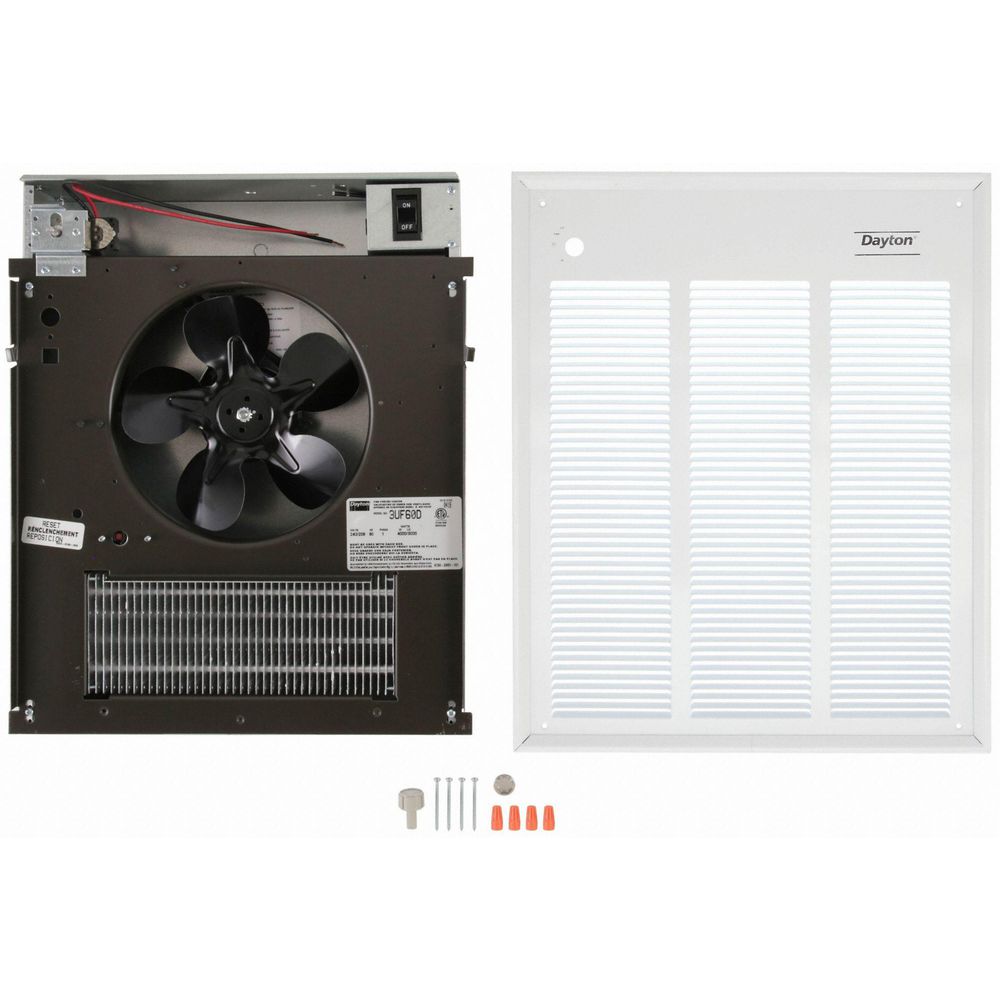

Dayton Recessed Electric Wall-Mount Heater: 1,500W/3,000W/2,000W/4,000W, 208/240V AC, 1-phase, White

Hover over image to magnify
Wall Heater,3000/1500,4000/
PI_Asset_1755393
PI_Asset_1768294
Wall Heater,3000/1500,4000/
PI_Asset_1755393
PI_Asset_1768294
Double tap image to magnify
Wall Heater,3000/1500,4000/
3UF60_1
3UF60_2
Wall Heater,3000/1500,4000/
3UF60_1
3UF60_2

#930728-4Pkg Qty: 1

$435.20 pkg | $435.20 ea

In Stock

Shipping to 43085
Expected to arrive Fri. Mar 28.
|

Technical Specifications

Key Specifications
Air Flow
100 CFM
Mfr. Part Number
3UF60
Amperage
7.2 A/14.5 A, 8.3 A/16.7 A
Mfr. Warranty Length
5 yr. On Element, 1 yr. All other parts
Brand
DAYTON
Mounting Type
Surface and Recessed
Color Family
White
Package Quantity
1
Frequency
60 Hz
Phase
1
Heating Capacity
5118/10236 BtuH 6824/13650 BtuH
Programming Capability
Not Programmable
Heating Method
Fan Forced
Shipping Weight
22 lb.
Housing Material
Steel
Tamper Resistant
No
Item
Recessed Electric Wall-Mount Heater
Voltage
208/240 VAC
General
Air Temp. Rise
112 Degrees F
Remote Control Functions
No Remote Control Included
Automatic Fan Delay (On/Off)
Yes
Rough-In Depth
3 7/8 in
Disconnect Switch
Yes
Rough-In Dimensions - H x W x D
18-1/4 in x 14-5/8 in x 3-7/8 in
Fan Only Operation
Yes
Rough-In Height
18 1/4 in
Grille Depth
1 1/2 in
Rough-In Width
14 5/8 in
Grille Finish
Powder Coated
Smart Connectivity
No Connectivity
Grille Height
19 1/4 in
Standards
cETLus Listed
Grille Width
15 3/4 in
Thermal Overheat Protection
Manual Reset
Heater Mounting Position
Horizontal Burn
Thermostat Contact Type
Double Pole
Includes
Built-in Thermal Cutout, Fan Delay Switch
Thermostat Included
Unit-Mounted
Key Features
Mechanical Controls, Overheat Protection
Voltage, Phase
208/240V AC, 1-phase
Minimum Mounting Distance from Ceiling
36 in
Wattage Field Convertible
Yes
Minimum Mounting Height from Floor
8 in
Wattage Output
1,500W/3,000W, 2,000W/4,000W
Nominal Voltage - HVAC
208V AC, 240V AC

Product Description

Large recessed electric wall heaters are larger than compact and register heaters and are used to heat areas like offices, reception rooms, family rooms, and other residential and small commercial spaces. These fan-forced heaters install in an opening in the wall near the floor so heat flows into the space to be heated. These heaters have a built-in thermostat.

Expertly Selected Product Pairings

Dpdt Thermostat
$55.96 pkg | $55.96 ea
Item: 918245-4 | Pkg Qty: 1
Spst Thermostat
$94.71 pkg | $94.71 ea
Item: 928719-1 | Pkg Qty: 1

Documents

Dayton Electric Wall Heater Fact Sheet
